Mold Parts
HASCO Guide Pillars

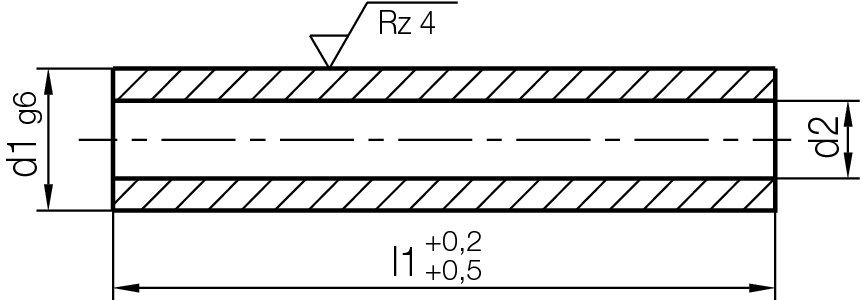

Z022/d1xl1
580 + 40 HV30
~ 1.0715

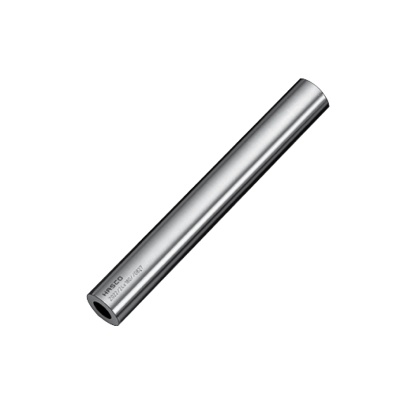

Guide sleeve
Z022/d1xl1
580 + 40 HV30
~ 1.0715
Guide sleeve
| d2 | d1 | l1 | Product |
| 6,2 | 10 | 20 | Z022/10x20 |
| 30 | Z022/10x30 | ||
| 40 | Z022/10x40 | ||
| 50 | Z022/10x50 | ||
| 60 | Z022/10x60 | ||
| 70 | Z022/10x70 | ||
| 80 | Z022/10x80 | ||
| 100 | Z022/10x100 | ||
| 120 | Z022/10x120 | ||
| 140 | Z022/10x140 | ||
| 8,3 | 12 | 40 | Z022/12x40 |
| 60 | Z022/12x60 | ||
| 80 | Z022/12x80 | ||
| 100 | Z022/12x100 | ||
| 120 | Z022/12x120 | ||
| 140 | Z022/12x140 | ||
| 160 | Z022/12x160 | ||
| 14 | 30 | Z022/14x30 | |
| 40 | Z022/14x40 | ||
| 50 | Z022/14x50 | ||
| 60 | Z022/14x60 | ||
| 70 | Z022/14x70 | ||
| 80 | Z022/14x80 | ||
| 100 | Z022/14x100 | ||
| 120 | Z022/14x120 | ||
| 140 | Z022/14x140 | ||
| 160 | Z022/14x160 | ||
| 180 | Z022/14x180 | ||
| 10,4 | 18 | 40 | Z022/18x40 |
| 60 | Z022/18x60 | ||
| 80 | Z022/18x80 | ||
| 100 | Z022/18x100 | ||
| 120 | Z022/18x120 | ||
| 140 | Z022/18x140 | ||
| 160 | Z022/18x160 | ||
| 180 | Z022/18x180 | ||
| 200 | Z022/18x200 | ||
| 220 | Z022/18x220 | ||
| 240 | Z022/18x240 | ||
| 12,5 | 24 | 60 | Z022/24x60 |
| 80 | Z022/24x80 | ||
| 100 | Z022/24x100 | ||
| 120 | Z022/24x120 | ||
| 140 | Z022/24x140 | ||
| 160 | Z022/24x160 | ||
| 180 | Z022/24x180 | ||
| 200 | Z022/24x200 | ||
| 220 | Z022/24x220 | ||
| 240 | Z022/24x240 | ||
| 16,5 | 30 | 80 | Z022/30x80 |
| 100 | Z022/30x100 | ||
| 120 | Z022/30x120 | ||
| 140 | Z022/30x140 | ||
| 160 | Z022/30x160 | ||
| 180 | Z022/30x180 | ||
| 200 | Z022/30x200 | ||
| 220 | Z022/30x220 | ||
| 240 | Z022/30x240 | ||
| 260 | Z022/30x260 | ||
| 280 | Z022/30x280 | ||
| 300 | Z022/30x300 |
