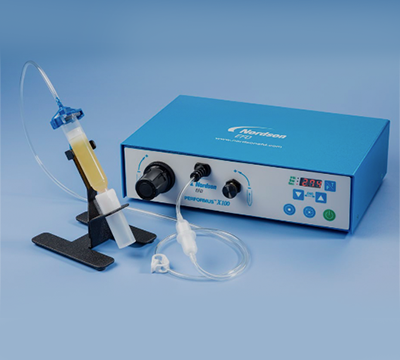

Nordson EFD Performus X Series Dispensers
Reliable benchtop fluid dispensing control for general applications
Nordson EFD’s PerformusTM X dispensers increase throughput, improve yields, and reduce production costs through controlled application of adhesives, lubricants, and other assembly fluids.
The Performus X100 features a 0-100 psi (0-7 bar) pressure regulator that handles all fluids.
The Performus X15 features a 0-15 psi (0-1 bar) pressure regulator that provides greater control when dispensing thin fluids.
Performus X15 and X100 units feature vacuum control, a convenient Teach function that makes it simple to set initial shot size, and an I/O connection.
Nordson EFD’s PerformusTM X dispensers increase throughput, improve yields, and reduce production costs through controlled application of adhesives, lubricants, and other assembly fluids.
The Performus X100 features a 0-100 psi (0-7 bar) pressure regulator that handles all fluids.
The Performus X15 features a 0-15 psi (0-1 bar) pressure regulator that provides greater control when dispensing thin fluids.
Performus X15 and X100 units feature vacuum control, a convenient Teach function that makes it simple to set initial shot size, and an I/O connection.
Nordson EFD Performus X Series Dispensers
Features
- Teach function
- Timed or steady operation
- Vacuum control to keep thin fluids from dripping between cycles
- Digital time/pressure display
- Metal chassis that also acts as a Faraday cage to improve EMI/RFI protection
- Universal power supply for use worldwide
Benefits
- Consistent dots, fills, and neat beads
- Reduces guesswork, fluid waste, and operator fatigue
- Metal chassis increases physical protection of the dispenser, making it ideal for use in industrial environments
- Chassis connection for grounding to enhance system electrostatic discharge (ESD) protection
- Replacement part kits for easy service and maintenance in the field
Dispensing SolderPlus® solder paste on PCB boards.
Dispensing a low-viscosity solvent on medical devices.
| Part # | Description |
|---|---|
| 7363256 | Performus X100 dispenser, 0–7 bar (0–100 psi) pressure regulator |
| 7363257 | Performus X15 dispenser, 0–1 bar (0–15 psi) pressure regulator |
Specifications
| Item | Specification |
|---|---|
| Cabinet size | 26.4W x 17.1D x 6.7H cm (10.38W x 6.75D x 2.62H") |
| Weight | 1 kg (2.2 lb) |
| Power adapter | AC input: 100–240 VAC (+/-10%), ~50/60Hz, 0.6 Amp DC output: 24 VDC @ 0.75 Amp |
| Cycle rate | Exceeds 600 cycles per minute |
| Time range | 0–99.9 seconds |
| End-of-cycle feedback circuits | 5–24 VDC, 100 mA maximum |
| Cycle initiate | Foot pedal, finger switch, or 5–24 VDC signal |
| Input air pressure | 7.0 bar (100 psi) maximum |
| Air output | 0–7.0 bar (0–100 psi) |
| Warranty | 2 years, limited |
| Approvals | CE, ETL, RoHS, WEEE, China RoHS |
