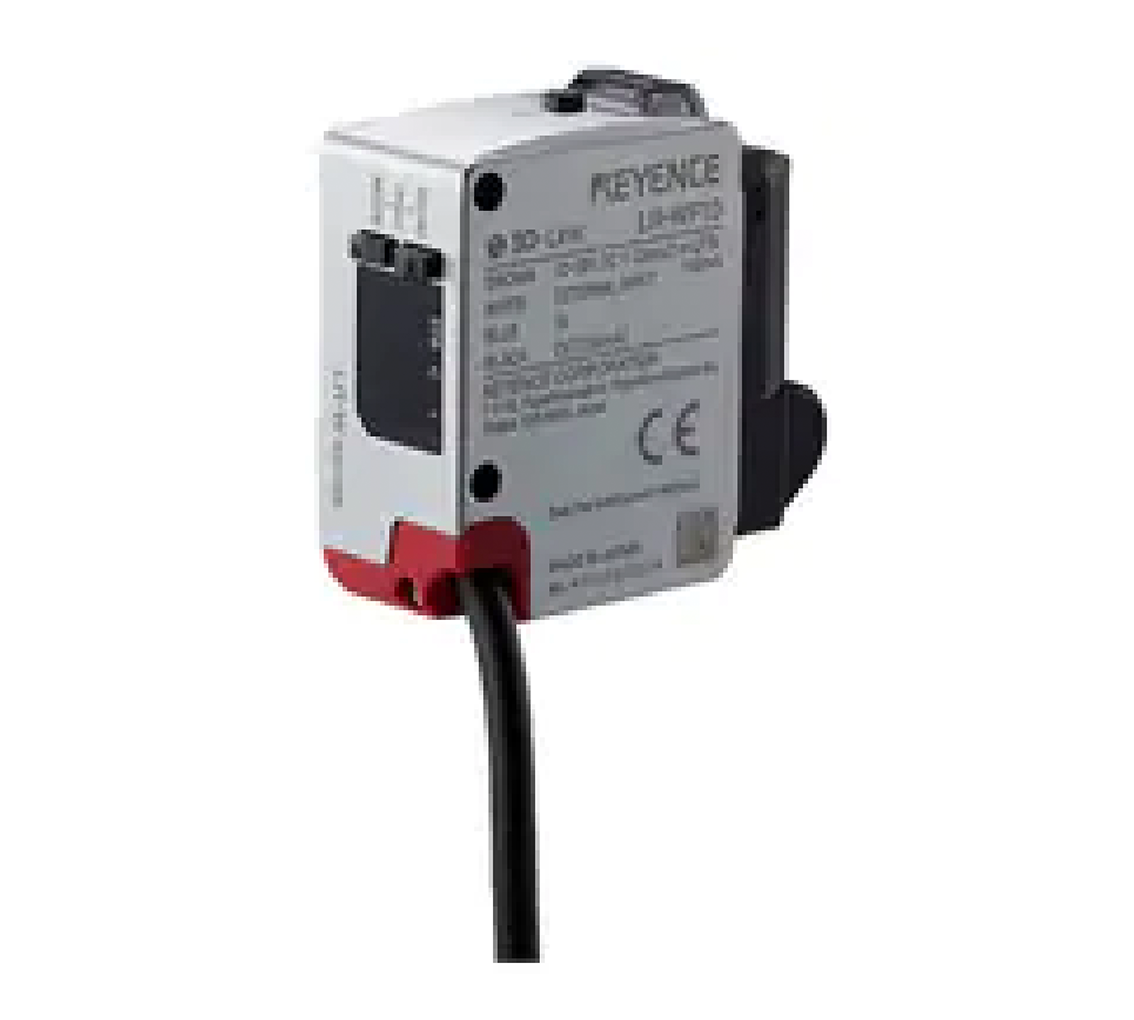

Self-Contained Full-Spectrum Sensor LR-WF10

Model

LR-WF10

Type

Fiber Type
2 m 6.56' cable type

Detecting distance

Detecting Distance and Min. Spot Diameter Based on Attached Fiber Head

Min. spot diameter

Light source

White LED

Mutual interference reduction function

Up to 2 units when alternate frequencies set

Timer

OFF/ON delay/OFF delay/One-shot

Response time

250 µs, 1 ms, 10 ms, 100 ms, 500 ms Selectable^*1*2

I/O

Control output

NPN open collector/PNP open collector selectable
30 VDC or less, 50 mA or less, remaining voltage: 2 V or less
N.O./N.C. selectable
^*3

External input

Tuning /Transmission OFF selectable
Short circuit current: 1 mA or less for NPN/2 mA or less for PNP
For the applied voltage, see the wiring diagrams in the instruction manual.
For the input times, see the time charts in the instruction manual.
^*3

Protection circuit

Protection against reverse power connection, power supply surge, output overcurrent, output surge, and reverse output connection

Power supply

Power voltage

10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS

Current consumption

50 mA or less (without load) at 24 VDC;
90 mA or less (without load) at 12 VDC^*4

Environmental resistance

Enclosure rating

IP65 (IEC60529)^*5*6

Ambient light

Incandescent lamp: 10,000 lux or less, Sunlight: 20,000 lux or less

Ambient temperature

-20 to +45 °C -4 to 113 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Shock resistance

1,000 m/s², 6 times in each of the X, Y, and Z directions

Material

Case: Zinc die cast (Nickel chrome plating),
Indicator cover: PPSU, Buttons: PES,
Display: PMMA (scratch-resistant coating),
Cable bushing: PBT, Cable: PVC,
Fiber locking mount: PBT, NBR, Silicone rubber, SUS304, SUSXM7
Adapter: PBT

Weight

Approx. 150 g (including cable)
