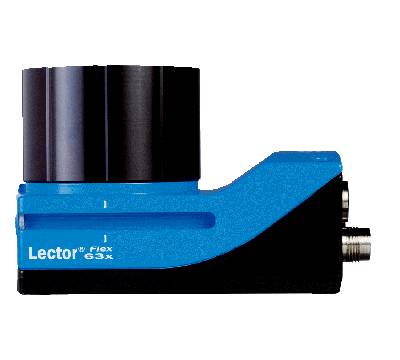

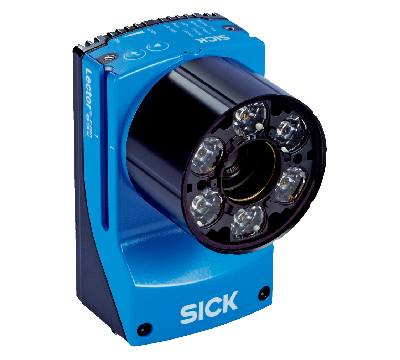

    Image-based code readers SICK Lector63x / Lector631

    Type:V2D631R-MWSFB4
    Part No.:1080073
    add to cart Inquiry Now
    Features
    Variant Complete device

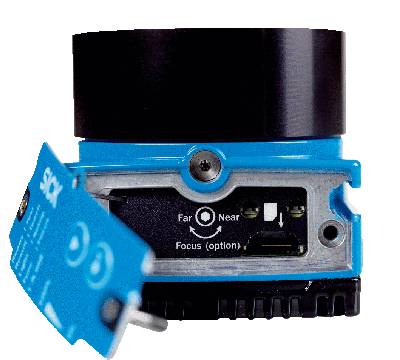

    Optical focus Adjustable focus (manually)
    Sensor CMOS matrix sensor, grayscale values
    Sensor resolution 1,280 px x 1,024 px
    Light source

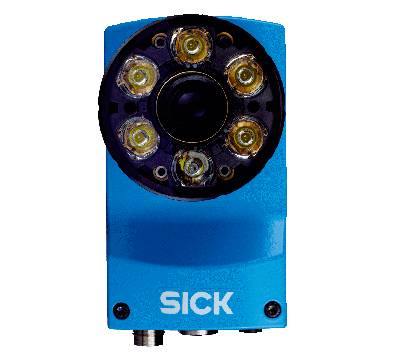

    Internal lighting LED, Visible, White, 6,000 K, ± 500 K
    Feedback spot LED, Visible, green, 525 nm, ± 15 nm
    Feedback spot LED, Visible, Red, 630 nm, ± 20 nm, RG 1
    Adjustment aid Laser, Visible, Red, 630 nm ... 680 nm
    Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
    Scanning frequency ≤ 50 Hz, With resolution of 1.3 megapixels
    Code resolution ≥ 0.1 mm 1)
    Reading distance 50 mm ... 2,200 mm 1)
    Lens S-mount
    Focal length 25 mm
    Aperture f/8
    • 1) Depends on lens used, for details see field of view diagram.

    Mechanics/electronics

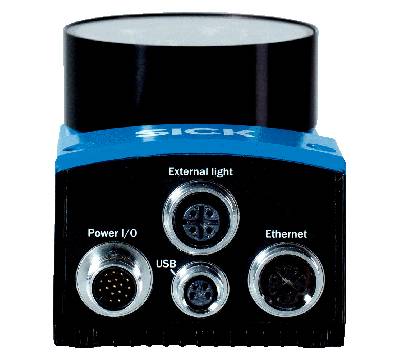

    Connection type

    1 x M12, 17-pin plug (serial, CAN, I/Os, power supply)

    1 x M12, 8-pin socket (Ethernet, 1 GBit/s)

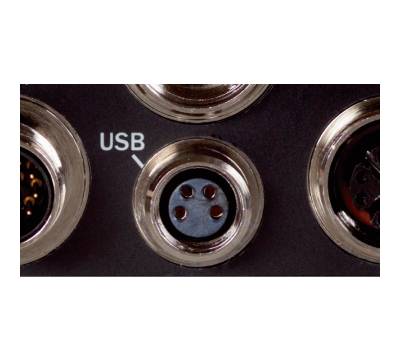

    1 x M8, 4-pin socket (USB)

    1 x M12, 4-pin socket (external illumination control)
    Supply voltage 12 V DC ... 24 V DC, ± 20 %
    Power consumption Typ. 10 W, ± 20 %
    Output current ≤ 100 mA
    Housing Aluminum die cast
    Front screen Plastic
    Enclosure rating IP67 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
    Electrical safety EN 60950-1 (2011-01)
    Weight 500 g
    Dimensions (L x W x H) 108 mm x 63.1 mm x 74.1 mm


    Performance
    Readable code structures 1D codes, Stacked, 2D codes
    Bar code types GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, USPS (Postnet, Planet, USPS4SCB), Australian Post, Dutch KIX Post, Royal Mail, Swedish Post
    2D code types Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
    Stacked code types PDF417
    Code qualification On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 18004


    Interfaces
    Ethernet ✔ , TCP/IP
    Function Host, AUX, FTP (image transmission)
    Data transmission rate 10/100/1,000 Mbit/s
    PROFINET ✔
    Function PROFINET Single Port (integrated), PROFINET Dual Port (optional via external connection module CDF600-2)
    Data transmission rate 10/100 MBit/s
    EtherNet/IP™ ✔
    Data transmission rate 10/100/1,000 Mbit/s
    Serial ✔ , RS-232, RS-422
    Function Host, AUX
    Data transmission rate 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
    CAN ✔
    Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
    Data transmission rate 250 kbit/s ... 500 kbit/s
    PROFIBUS DP ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    USB ✔
    Remark USB 2.0 (for parameterization only)
    Function AUX
    Digital inputs 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 parameter memory in CDB650/CDM420)
    Configurable inputs Encoder input, external trigger
    Digital outputs 6 (CDB650: “Result 1”, “Result 2”, “Result 3”, “Result 4”, 2 external outputs via CMC600 or CDM420: “Result 1”, “Result 2”, 2 external outputs via CMC600 or cable with open end: “Result 1”, “Result 2”, “Result 3”, “Result 4”)
    Configurable outputs Good read, External illumination control, free configurable output condition, "device ready"
    Reading pulse Digital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode

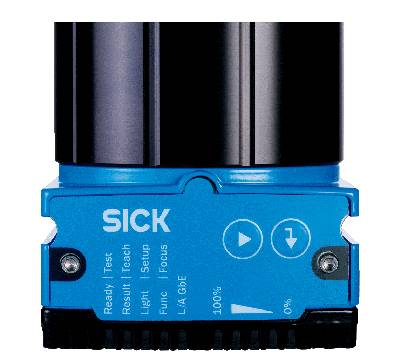

    Optical indicators 11 LEDs (5 x status display, 5 x LED bar graph, 1 green/red feedback spot)
    Acoustic indicators Beeper (configurable)
    Control elements 2 buttons (choose and start/stop functions)
    Operator interfaces Web server
    Configuration software SOPAS ET
    Memory card Micro SD memory card (flash card) max. 32 GB, optional
    Data storage and retrieval Image and data storage via microSD memory card and external FTP
    Maximum encoder frequency 1 kHz
    External illumination control Via digital output (max. 24 V trigger) or external illumination connection


    Ambient data
    Electromagnetic compatibility (EMC) EN 61000-6-2:2005-08 / EN 61000-6-4 (2007-01) + A1 (2011)
    Vibration resistance EN 60068-2-6:2008-02
    Shock resistance EN 60068-2-27:2009-05
    Ambient operating temperature 0 °C ... +50 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing


    Classifications
    ECl@ss 5.0 27280103
    ECl@ss 5.1.4 27280103
    ECl@ss 6.0 27280103
    ECl@ss 6.2 27280103
    ECl@ss 7.0 27280103
    ECl@ss 8.0 27280103
    ECl@ss 8.1 27280103
    ECl@ss 9.0 27280103
    ECl@ss 10.0 27280103
    ECl@ss 11.0 27280103
    ETIM 5.0 EC002550
    ETIM 6.0 EC002550
    ETIM 7.0 EC002999
    ETIM 8.0 EC002999
    UNSPSC 16.0901 43211701
