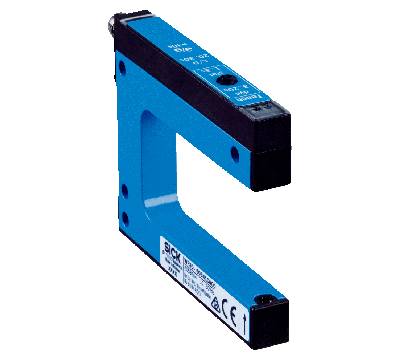

Sensor
| Functional principle | Optical detection principle |
| Dimensions (W x H x D) | 10 mm x 80 mm x 57 mm |
| Housing design (light emission) | Fork shaped |
| Fork width | 50 mm |
| Fork depth | 42 mm |
| Minimum detectable object (MDO) | 0.2 mm |
| Label detection | ✔ |
| Light source | LED, infrared, Infrared light |
| Wave length | 850 nm |
| Adjustment |
Teach-in button (Teach-in, sensitivity, light/dark switching, key lock) Cable (Teach-in dynamic) |
| Teach-in mode |
1-point teach-in 2-point teach-in Teach-in dynamic |
| Output function | Light/darkswitching, selectable via button |
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 10 % 2) |
| Current consumption | 20 mA 3) |
| Switching frequency | 15 kHz 4) |
| Response time | 46 µs 5) |
| Stability of response time | ± 20 µs |
| Jitter | 17 µs |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN High = UV - < 2 V/Low: ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA |
| Input, teach-in (ET) |
Teach: U > 5 V ... < UV Run: U < 4 V |
| Initialization time | 40 ms |
| Time delay | Switch-off delay, 0 ms / 8 ms / 16 ms / 32 ms / 65 ms / 130 ms / 260 ms / 520 ms, adjustable via IO-Link (0 ms = default) |
| Connection type | Male connector M8, 4-pin |
| Protection class | III 6) |
| Circuit protection |
UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 36 g ... 160 g 7) |
| Housing material | Metal, Aluminum |
- 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) With light/dark ratio 1:1.
- 5) Signal transit time with resistive load.
- 6) Reference voltage DC 50 V.
- 7) Depending on fork width.
Communication interface
|
|||||||||
| Cycle time | 2.3 ms | ||||||||
| Process data structure A |
Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = not used Bit 3 = Teach busy Bit 4 ... 15 = empty |
||||||||
| Process data structure B |
Bit 0 = switching signal QL1 Bit 1 = Quality of Run Alarm Bit 2 = not used Bit 3 = Teach busy Bit 4 ... 15 = empty |
||||||||
| Process data structure C |
Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = not used Bit 3 = Teach busy Bit 4 ... 5 = empty Bit 6 ... 15 = measuring value |
||||||||
| Process data structure D |
Bit 0 = switching signal QL1 Bit 1 = Quality of Run Alarm Bit 2 = not used Bit 3 = Teach busy Bit 4 ... 5 = empty Bit 6 ... 15 = measuring value |
||||||||
| Process data structure E |
Bit 0 = switching signal QL1 (AFC Q1 Output) Bit 1 = switching signal QL2 (AFC Q2 Output) Bit 2 ... 15 = counting value |
||||||||
Ambient data
| Ambient operating temperature | –20 °C ... +60 °C 1) |
| Ambient temperature, storage | –30 °C ... +80 °C |
| Ambient light immunity | ≤ 10,000 lx |
| Shock load | According to EN 60068-2-27 |
| UL File No. | NRKH.E191603 |
- 1) Do not bend below 0 °C.
Classifications
| ECl@ss 5.0 | 27270909 |
| ECl@ss 5.1.4 | 27270909 |
| ECl@ss 6.0 | 27270909 |
| ECl@ss 6.2 | 27270909 |
| ECl@ss 7.0 | 27270909 |
| ECl@ss 8.0 | 27270909 |
| ECl@ss 8.1 | 27270909 |
| ECl@ss 9.0 | 27270909 |
| ECl@ss 10.0 | 27270909 |
| ECl@ss 11.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
