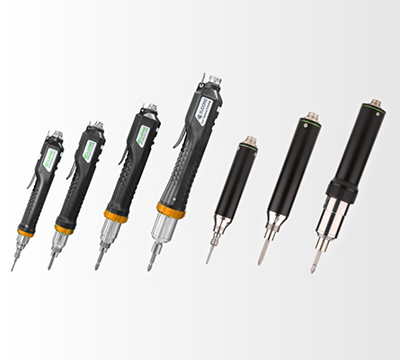

Brushless Servo Intelligent Current Control Torque Series
- Snap-action brushless servo electric screwdriver can realize free programming of tightening assembly process
- Within the range of performance parameters, the torque, speed, waiting time and rotation direction can be freely set and adjusted according to different tightening process requirements to achieve precise tightening.
Brushless Servo Intelligent Current Control Torque Series
Features
- The quick-action brushless servo electric screwdriver can realize free programming of the tightening assembly process. Within the range of performance parameters, the torque, speed, waiting time and rotation direction can be freely set and adjusted according to different tightening process requirements to achieve precise tightening.
- The quick-action brushless servo electric screwdriver is based on servo control technology, which can ensure that the torque accuracy of the millions of times tightening assembly is controlled within the standard deviation of ±5%.
- The built-in torque sensor and angle sensor can realize the precise control of the brushless servo electric screwdriver in each tightening process, and record all important tightening process parameters in real time.
- Under normal working conditions, the quick-action brushless servo electric screwdriver can achieve Cmk≥1.67 (torque setting tolerance ±10%), which conforms to the principles of ISO 5393 and 6Sigma. The Cmk value of 1.67 means that there is only 0.6 error rate per million screws, that is, the pass rate is as high as 99.99994%.
- The quick-action brushless servo electric screwdriver adopts a brushless motor and cooperates with the SD-PF5015 or SD-PF5030 controller to ensure the flexibility and process reliability of the tightening process.
- The built-in current and angle measurement can realize the precise control and monitoring of the quick-action brushless servo electric screwdriver during each tightening process, realize the recording of all important tightening process parameters, and ensure the highest accuracy.
- The use of a brushless servo motor significantly reduces operating costs, thereby obtaining a long life cycle, while ensuring stable power performance and torque peak output. It is the ideal CNC tightening assembly process choice for customers.
Physical dimension
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| SD-NCO8L-A SD-NC30L-A SD-NC60L-A |
227 | 28 | 31.5 | M16 | 6.5 | 28.8 |
| SD-NC120L-A | 264 | 34 | 26.5 | M20 | 23.45 | 49.5 |
| SD-NC200L-A SD-NC350L-A SD-NC500L-A |
300 | 40 | 32 | M20 | 37 | 72 |
| SD-NC1000L-A SD-NC1500L-A SD-NC2300L-A SD-NC3500L-A SD-NC5000L-A SD-NC 7000L-A |
350 | 45 | 40 | - | 45 | 80 |
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| SD-NC60AT-A SD-NCO8AT-A SD-NC30AT-A |
160 | 25 | 23 | M13 | 25.3 | 48.1 |
| SD-NC120AT-A | 170.7 | 32 | 28.5 | M18 | 31.25 | 57.75 |
| SD-NC200AT-A SD-NC500AT-A SD-NC350AT-A |
191.4 | 34 | 30 | M20 | 38.2 | 68.2 |
| SD-NC1000AT-A SD-NC1500AT-A SD-NC2300AT-A SD-NC3500AT-A SD-NC5000AT-A SD-NC7000AT-A |
250 | 44 | 40 | --- | 49.2 | 59.2 |
Technical parameter
| Model | Measuring Range | No load speedi(r.p.m) | Input voltage | Weight(g) | Diameter of screw | ||
| Hand press | For automata | kgf.cm | N.cm | ||||
| SD-NC08L-S | SD-NC08AT-S | 0.1-0.8 | 0.01 -0.08 | 50-1200 | 48V | 260 | M1.0-M1.7 |
| SD-NC30L-S | SD-NC30AT-S | 0.1-3 | 0.01-0.3 | 50-2000 | M1.0-M2.0 | ||
| SD-NC60L-S | SD-NC60AT-S | 0.5-6 | 0.05-0.6 | 50-1200 | M1.2-M2.5 | ||
| SD-NC120L-S | SD-NC120AT-S | 1-12 | 0.1-1.2 | 50-1200 | 430 | M1.7-M4 | |
| SD-NC200L-S | SD-NC200AT-S | 1-20 | 0.1-2 | 50-1600 | 780 | M2.5-M6.0 | |
| SD-NC350L-S | SD-NC350AT-S | 5-35 | 0.5-3.5 | 50-800 | M4.0-M8.0 | ||
| SD-NC500L-S | SD-NC500AT-S | 5-50 | 0.5-5 | 50-500 | M4.5-M10 | ||
| SD-NC1000L-S | SD-NC1000AT-S | 20-100 | 2-10 | 50-1000 | 1150 | M6.0-M12 | |
| SD-NC1500L-S | SD-NC1500AT-S | 30-150 | 3-15 | 50-700 | M8.0-M14 | ||
| SD-NC2300L-S | SD-NC2300AT-S | 50-230 | 5-23 | 50-400 | 1250 | M10-M16 | |
| SD-NC3500L-S | SD-NC3500AT-S | 80-350 | 8-35 | 50-300 | M12-M18 | ||
| SD-NC5000L-S | SD-NC5000AT-S | 200-500 | 20-50 | 50-200 | M14-M20 | ||
| SD-NC7000L-S | SD-NC7000AT-S | 200-500 | 20-50 | 150 | M16-M22 | ||
Optional specification of screwdriver bits
