Intelligent Hand Press Electric Screwdriver

Fully automatic electric screwdriver, when the screw lock 3 reaches the set torque, the clutch will automatically trip, the motor will automatically power off and brake in time to stop the electric screwdriver
Brushless motor, more stable torque output

add to cart Inquiry Now

Intelligent Hand Press Electric Screwdriver

Features

Fully automatic electric screwdriver, when the screw lock 3 reaches the set torque, the clutch will automatically trip, the motor will automatically power off and brake in time to stop the electric screwdriver
Brushless motor, torque output is more stable, suitable for use in dust-free working environment, high stability, simple operation, screwdriver can be used for a long time
Using non-contact switch, no need to replace consumables, long service life

Technical parameter

Model	Measuring Range		No load speed(r.pm)		Input voltage	Weight(g)	Diameter of screw	Screw bit
Model	Kgf.cm	N.m	HI	LO	Input voltage	Weight(g)	Diameter of screw	Screw bit

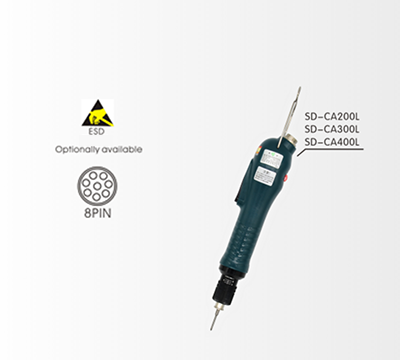

SD-CA200L	0.1-1.5	0.01-0.15	1000	800	30V	330	M1.0-M1.7	Ø 4mm
SD-CA300L	0.2-3.5	0.02-0.34					M1.2-M2.5
SD-CA400L	0.3-6.5	0.03-0.63					M1.4-M2.6
SD-CA450L	1-10	0.1-1				430	M1. 4-M3.0	Ø 5mm
SD-CA450LF	1-10	0.1-1	2000	1600			M1. 4-M3.0
SD-CA500L	2-12	0.2-1.18	1000	800			M1.6-M3.0
SD-CA500LF	2-12	0.2-1.18	2000	1600			M1.6-M3.0
SD-CA550L	3-19	0.29-1.86	1000	800			M2.3-M3.5

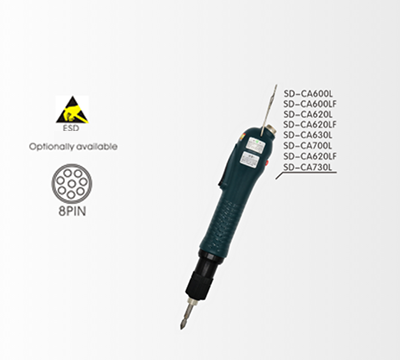

SD-CA600L	5-25	0.5-2.45	1000	800		640	M2.6-M4.0	1/4 hex
SD-CA600LF	5-23	0.5-2.25	2000	1600			M2.6-M4.0
SD-CA620L	10-30	0.98-2.94	1000	800			M2. 6-M4.5
SD-CA620LF	10-30	0.98-2.94	2000	-			M2. 6-M4.5
SD-CA630L	10-35	0.98-3.43	650	450			M3.0-M5.0
SD-CA700L	15-45	1.47-4.41	650	450			M3.5-M5.5
SD-CA730L	20-50	1.96-4.9	1000	-			M4.0-M6.0
SD-CA750L	30-70	2.94-6.86	800			1185	M5.0-M6.5
SD-CA800L	40-100	3.92-9.8	500				M6.0-M8.0
SD-CA850L	60-170	5.88-16.7	350				M8.0-M10
SD-CA860L	80-250	7.84-24.5	215				M10-M12
SD-CA880L	120-350	11.8-34.3	155				M12-M14

Optional specification of screwdriver bits
