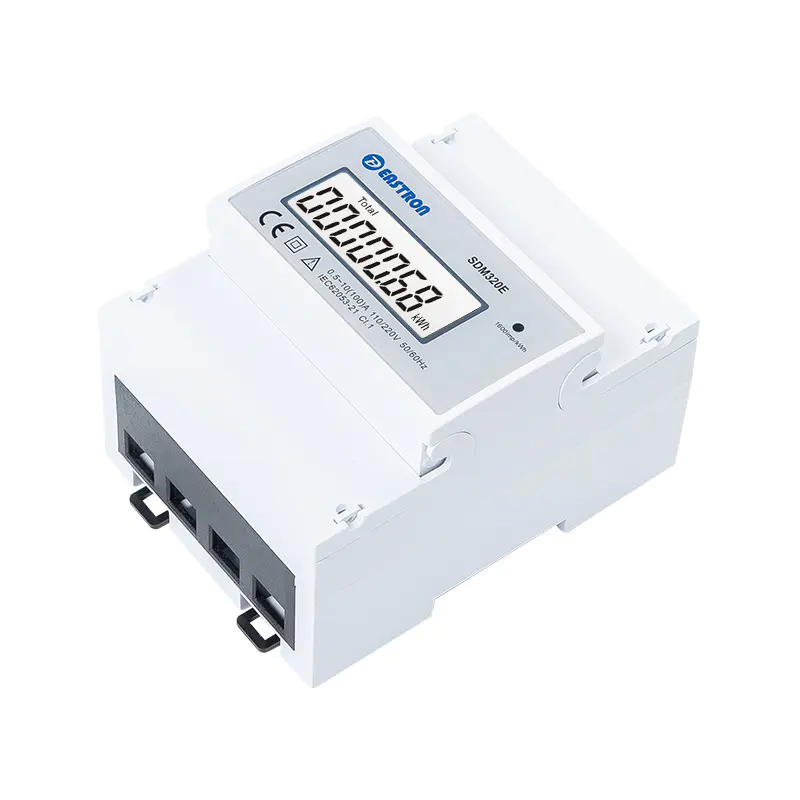

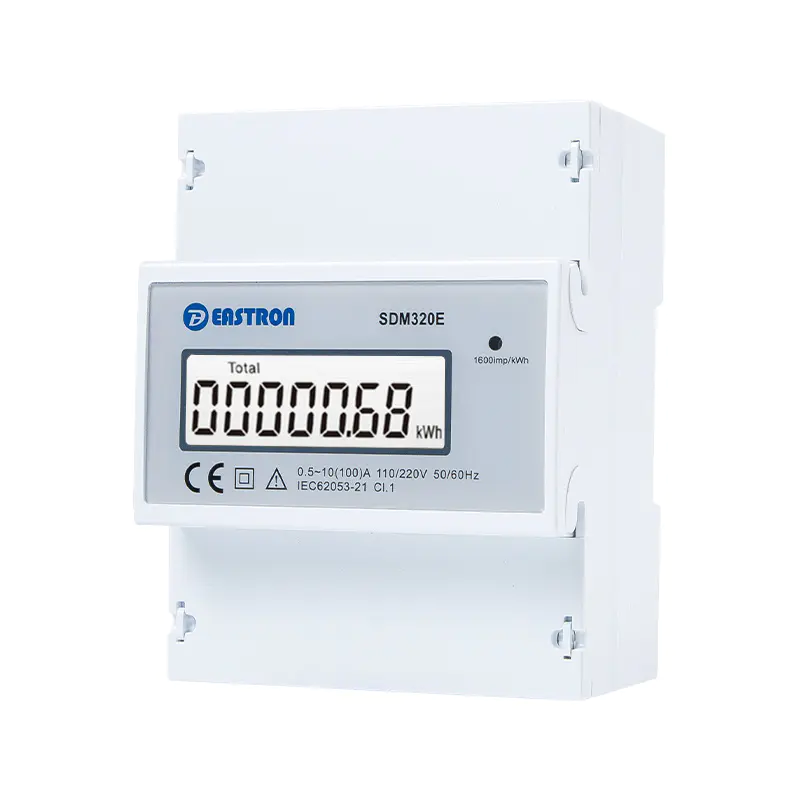

2p+n Din Rail Single Phase Electronic Kwh Meter With Pulse Output Eastron SDM320E
- Max. 100A Direct Load
- 110V/230V voltage input
- 1P3W network
- 4 Module Width
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (2P+N) |
|
|
Measurement Accuracy |
Energy |
IEC 62053-21 Class 1.0 |
|
Input & Output |
||||
|
Input |
Current
|
Rated Current (Ib) |
10A |
|
|
Max Current (Imax.) |
100A |
|||
|
Min Current (Imin.) |
0.5A |
|||
|
Starting Current |
40mA |
|||
|
Voltage |
Rated Voltage (Un) |
120/220V |
||
|
Output |
SDM320E |
Pulse Output for active energy |
||
