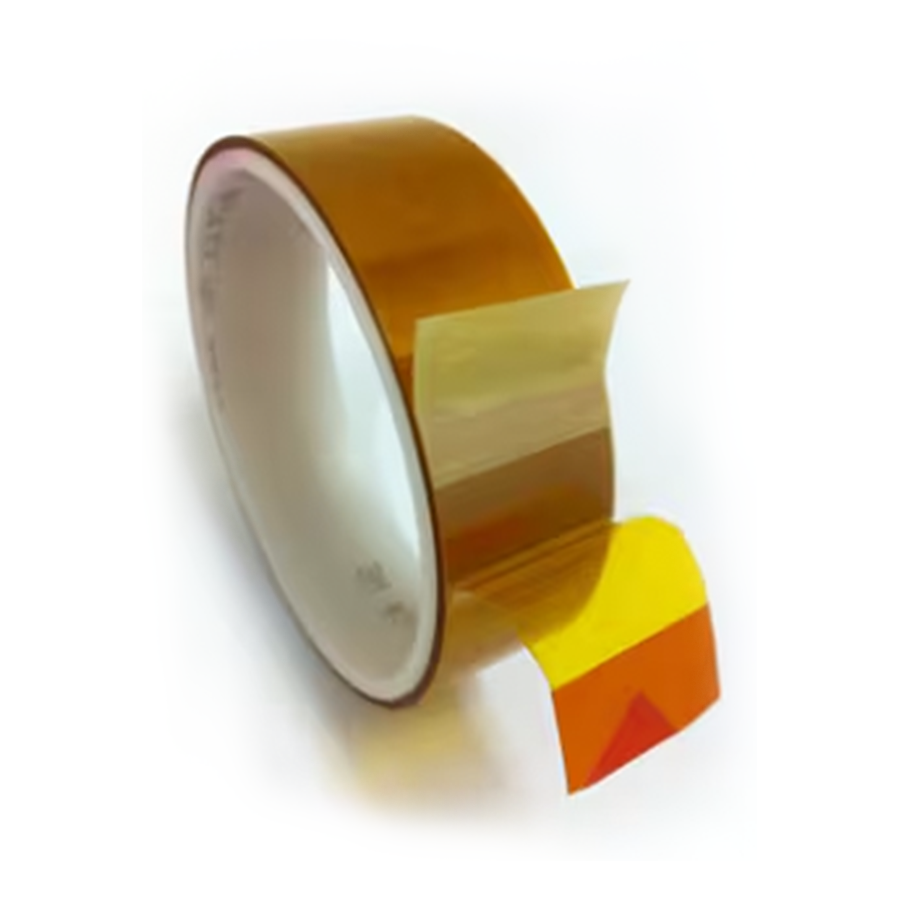

3M™ Linered Low-Static Polyimide Film Tape
- Polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures
- Dimensionally stable at high temperatures, which prevents rework, enabling high productivity
- Flame retardant, chemical and radiation resistant which protects surfaces to help reduce replacement costs
- Silicone adhesive's high temperature performance reduces adhesive transfer which helps to eliminate cleaning, enabling high productivity
- Low Static which virtually eliminates circuit board degradation due to electrostatic discharge
- Helps reduce costly board waste due to component failure
- Unique release liner is easy to release from silicone adhesive, which provides capability to produce die cut parts
- Available on cardboard or polyethyelene core
Details
3M™ Low Static Polyimide Film Tape 5433 with DuPont™ Kapton® polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications. Low Static. Linered.
*Halogen Free is defined as having maximum 900ppm bromine, maximum 900ppm chlorine, and maximum 1500ppm total bromine and chlorine, per 61429-2-21.
Typical properties
3M™ Low Static Polyimide Film Tape 5433 with DuPont™ Kapton® polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications. Low Static. Linered.
*Halogen Free is defined as having maximum 900ppm bromine, maximum 900ppm chlorine, and maximum 1500ppm total bromine and chlorine, per 61429-2-21.
Typical properties
|
Adhesive Type |
Silicone |
|
Backing (Carrier) Material |
Polyimide Film |
|
Brands |
3M™ |
|
Product Color |
Amber |
|
Total Tape Thickness without Liner (Imperial) |
2.7 mil |
|
Total Tape Thickness without Liner (Metric) |
0.069 mm |
|
Overall Length (Imperial) |
36 yd |
|
Overall Length (Metric) |
33 m |
|
Overall Width (Imperial) |
2 in |
|
Overall Width (Metric) |
50.8 mm |
