Adhesive Sealant & Lubricant

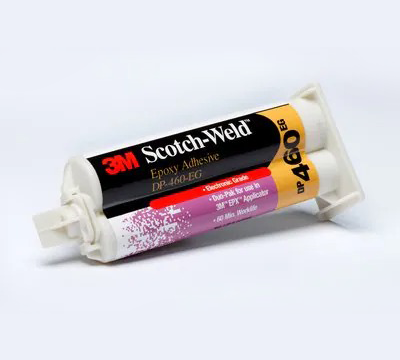

3M™ Scotch-Weld™ Epoxy Adhesive
- High peel and shear strength
- Excellent durability
- Controlled flow
- Total outgassing < 1000 μg/g (via GC/MS, 85 °C for 3 hours)
- Siloxane outgassing ≤ 5 μg/g (via GC/MS, 85 °C for 3 hours)
- Lower chloride ion content than standard epoxies
Specifications
Details
2-part room temperature curing epoxy with high durability, 4500 PSI OLS, and 50 PIW on aluminum. Reaches handling strength in 4-6 hours. Lower ionic and outgassing impurities than typical epoxies. 2:1 ratio.
3M™ Scotch-Weld™ Epoxy Adhesive DP460EG is a toughened, two-part epoxy adhesive with a 2:1 mix ratio, 110- minute work life and handling strength in approximately four hours. This product provides a strong, durable bond to many surfaces.
|
Brand
|
Scotch-Weld™
|
|
Container Size (Imperial)
|
1.69 fl oz (US), 55.116 lb.
|
|
Container Size (Metric)
|
25 kg, 50 ml
|
|
Container Type
|
Cartridge, Pail
|
|
Cure Temperature
|
Room Temperature
|
|
Full Cure Time
|
24 Hours @ 73 F (23 C)
|
|
Industries
|
Electronics
|
|
Mix Ratio Volume Base:Accelerator
|
2:1
|
|
Overall Width (Metric)
|
50 mm
|
|
Product Color
|
Black, Pink
|
|
Set Time
|
2 Hour
|
|
Time to Handling Strength
|
4 hr
|
|
Viscosity Range (cps) at Room Temperature
|
Base: 25,000 - 45,000, Accelerator: 8,000 - 14,000
|
|
Volume (Metric)
|
29.3 L
|
|
Worklife
|
110 min @ 72 °F (23 °C)
|
Details
2-part room temperature curing epoxy with high durability, 4500 PSI OLS, and 50 PIW on aluminum. Reaches handling strength in 4-6 hours. Lower ionic and outgassing impurities than typical epoxies. 2:1 ratio.
3M™ Scotch-Weld™ Epoxy Adhesive DP460EG is a toughened, two-part epoxy adhesive with a 2:1 mix ratio, 110- minute work life and handling strength in approximately four hours. This product provides a strong, durable bond to many surfaces.
