4 PIN QUADRATE LED HOLDER EDE-3A

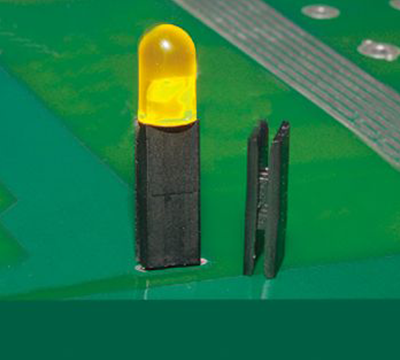

- To stand LED lamp on circuit board.
- Pads LED lamp with distance from circuit board.
- Suit for 5mm 4 pin LED Lamps.
4 PIN QUADRATE LED HOLDER EDE-3A
FEATURES
SPECIFICATION
FEATURES
- To stand LED lamp on circuit board.
- Pads LED lamp with distance from circuit board.
- Suit for 5mm 4 pin LED Lamps.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL, BLACK
- BUILD-IN CLAMP FUNCTION
| PART NO | A | B | C | PACKAGE |
| EDE-3A | 3.5 | 3.0 | 5.8 | 2000 |
| EDE-04 | 4.0 | 3.0 | 5.8 | |
| EDE-4A | 4.5 | 3.0 | 5.8 | |
| EDE-05 | 5.0 | 3.0 | 5.8 | |
| EDE-5A | 5.5 | 3.0 | 5.8 | |
| EDE-06 | 6.0 | 3.0 | 5.8 | |
| EDE-6A | 6.5 | 3.0 | 5.8 | |
| EDE-07 | 7.0 | 3.0 | 5.8 | |
| EDE-7A | 7.5 | 3.0 | 5.8 | |
| EDE-08 | 8.0 | 3.0 | 5.8 | |
| EDE-8A | 8.5 | 3.0 | 5.8 | |
| EDE-09 | 9.0 | 3.0 | 5.8 | |
| EDE-15 | 15.0 | 3.0 | 5.8 |
