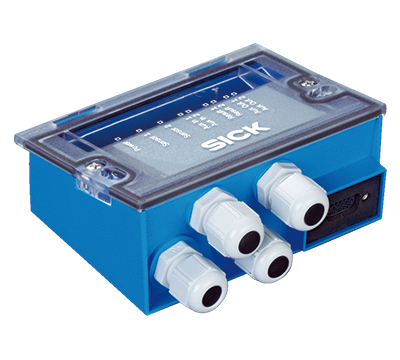

4D Pro Connectivity SICK CDB / CDB620 CDB620-001
Features
Mechanics/electronics
Interfaces
Ambient data
Classifications
Features
| Brief description | Small connection module for one sensor, 4 cable glands, base for CMC600 |
| Supported products |
CLV61x - CLV65x Lector62x RFH6xx RFU62x |
| Cloning module support (CMC) | Yes |
| Supports display module (CMD) | No |
| Supports power supply module (CMP) | No |
| Supports fieldbus gateway (CMF) | No |
Mechanics/electronics
| Supply voltage | (10 V DC ... 30 V DC) 1) |
| Power consumption | 1 W |
| Housing | Polycarbonate |
| Housing color | Blue (RAL 5012) |
| Enclosure rating | IP65 |
| Protection class | III |
| Weight | 260 g |
| Dimensions (L x W x H) | 124.2 mm x 113.1 mm x 53.9 mm |
| Scanner connection | 15-pin D-Sub HD female connector |
| Service plug | 9-pin D-Sub plug (internal) |
- 1) Supply voltage of the connected scanner + 1 V.
Interfaces
|
|||||
|
|||||
| Digital inputs | Depending on sensor connected | ||||
| Digital outputs | Depending on sensor connected | ||||
| Optical indicators | 9 LED | ||||
| Configuration software | SOPAS ET | ||||
Ambient data
| Ambient operating temperature | –35 °C ... +40 °C |
| Storage temperature | –35 °C ... +70 °C |
| Permissible relative humidity | ≤ 90 %, Non-condensing |
Classifications
| ECl@ss 5.0 | 27242208 |
| ECl@ss 5.1.4 | 27242608 |
| ECl@ss 6.0 | 27242608 |
| ECl@ss 6.2 | 27242608 |
| ECl@ss 7.0 | 27242608 |
| ECl@ss 8.0 | 27242608 |
| ECl@ss 8.1 | 27242608 |
| ECl@ss 9.0 | 27242608 |
| ECl@ss 10.0 | 27242608 |
| ETIM 5.0 | EC001604 |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| UNSPSC 16.0901 | 32151705 |
