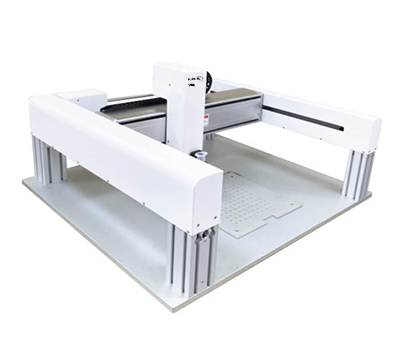

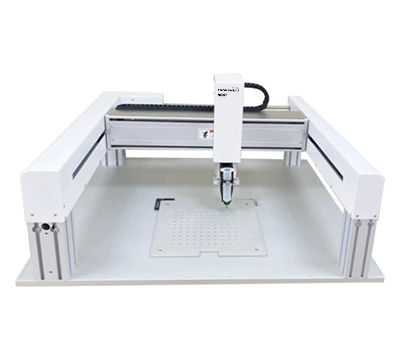

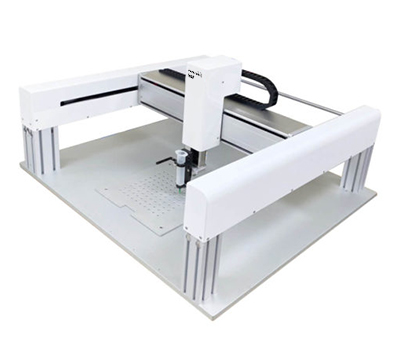

500GT Gantry Dispensing Robot 500GT
Enlargeable objects, no load issues, also can connect to HMI
Features
Features
- Many projects also require all moving axes to be above the workstation, the DT-500GS series provides that capability.
- Available in three and four-axis models
- Repeatability of 0.01mm
- The highly rigid frame structure
- Open access design for in-line operation
- Dot, Lines, Arc, etc., and the 3D dispensing path are available
- A hand-held Teach Pendant is provided for simple and intuitive
- programming functions
- Apply adhesives, cyanoacrylates, silicone, RTV, anaerobic resin, epoxy, UV cure formulations and many more fluids
- Windows SRE software is available for CAD file input (optional)
Specification
| Model | 500GT |
|---|---|
| Working Area X / Y / Z (mm) | 500 / 500 / 100 |
| Load Worktable Z-Axis | 5 kg |
| Maximum Speed XY / Z (mm/sec) | 0.1 ~ 500 / 300 |
| Resolution | 0.001 mm / Axis |
| Repeatability | +/- 0.01 mm / Axis |
| Data Memory Capacity | 100 programs, each 4000 points |
| Data Storage Type | PC HD Storage |
| Display | TFT LCD |
| Driver System | servo motor |
| Control Method | PTP & CP |
| Linear / Circular Interpolation | 3 axis |
| Teaching Method | Teach pendant |
| I/O Signals | 8 Inputs / 8 Outputs |
| External Control Interface | RS232 |
| Power Supply | 220 VAC |
| Working Temperature | 0 - 40°C |
| Relative Humidity (no condensation) | 20 - 90% No condensation |
| Dimensions (WxDxH mm) | 810 x 900 x 420 |
| Robot Weight | 65 kg |
