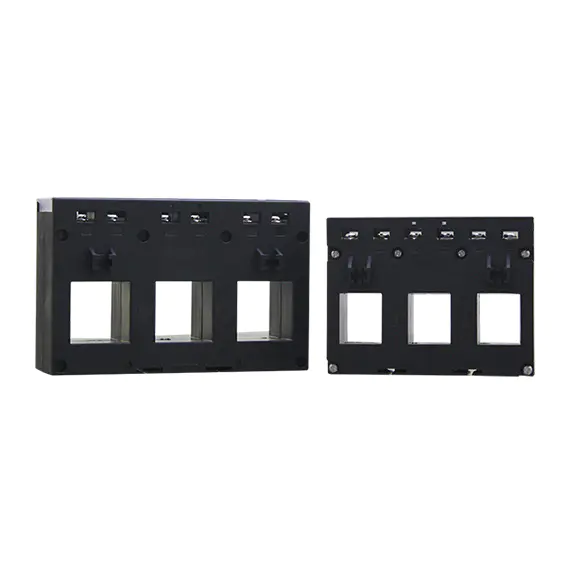

5a Output 3-in-1 Current Sensor (ct) Eastron ESCT-C Series
- 3-in-1 Current Transformer
- Integrated wire sealable terminal cover
- Primary current input: 60A-630A
- Secondary output: 1/5A
- Cost effective three phase moulded case
| Model | Primary Current |
Secondary Output |
Burden(VA) | |
| Class 0.5 | Class 1.0 | |||
| ESCT-C325 | 60A | 1A or 5A | - | 1 |
| 100A | 1A or 5A | - | 1.5 | |
| 125A | 1A or 5A | 1.5 | 1.5 | |
| 150A | 1A or 5A | 1.5 | 1.5 | |
| 200A | 1A or 5A | 1.5 | 1.5 | |
| ESCT-C335 | 100A | 1A or 5A | - | 1.5 |
| 125A | 1A or 5A | - | 2.5 | |
| 150A | 1A or 5A | - | 3.75 | |
| 200A | 1A or 5A | 1.5 | 1.5 | |
| 250A | 1A or 5A | 1.5 | 1.5 | |
| ESCT-C345 | 250A | 1A or 5A | 1.5 | 1.5 |
| 300A | 1A or 5A | 2.5 | 2.5 | |
| 400A | 1A or 5A | 2.5 | 2.5 | |
| 500A | 1A or 5A | 2.5 | 2.5 | |
| 600A | 1A or 5A | 2.5 | 2.5 | |
| 630A | 1A or 5A | 2.5 | 2.5 | |
