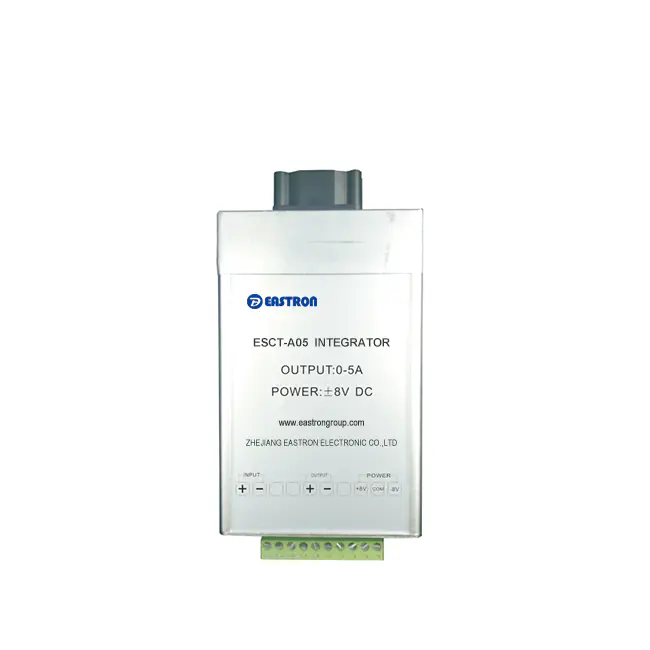

5a Output Single Phase Integrator For Rogowski Coil Eastron ESCT-A05 integrator
- High read accuracy 0.5%
- High linearity 0.2%
- High bandwidth for measurement 30 to 5kHz
- Output 5A rms
|
Specification |
|
|
Model |
ESCT-A05 |
|
Rated Output |
5A AC rms |
|
Maximum Output (Overload) |
5A AC rms |
|
Power Consumption |
80W |
|
Bandwidth |
30Hzto5kHz(-3dB) |
|
Maximum Burden |
0.8 Ω |
|
Measurement |
Secondary CTs to measure output of integrator |
|
Power Supply |
85-265V AC/DC(Powered from 2pcs 85-265 to 8VDC 40W SMPS) |
|
Rated Input |
10OA/6O0A/1000A/3000A/6000A |
|
Read Accuracy |
0.5% typical at 1%(≥10A) to 100% of rated current @25℃ |
|
Phase Error |
≤0.5° |
|
Linearity |
±0.2% of reading (10% to 100% of range) |
|
Output on 0A (Zero Drift) |
≤ 0.05A |
|
Temperature Drift |
200ppm/℃ |
|
Weight |
850g |
|
Dimension |
125*80*37mm |
|
Operating Temperature |
-20℃ to 70℃ |
|
Storage Temperature |
-30℃ to 90℃ |
|
Relative Humidity |
80% max.without condensation |
|
Protection Degree |
IP20 |
