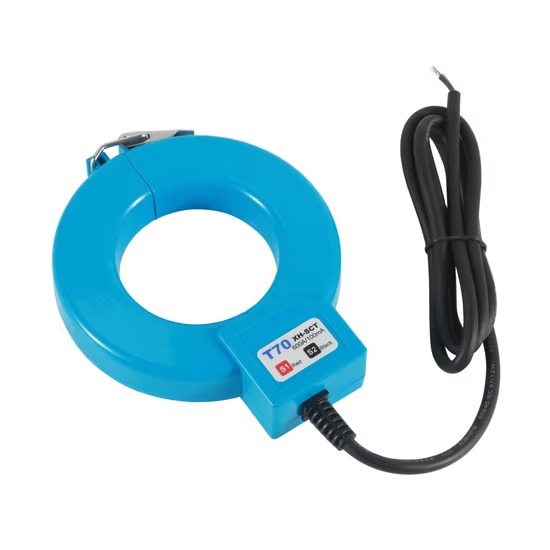

70mm Hole Sct-T70-630A/225mv Split Core Current Transformer
φ70mm Opening With 500 To 1000 Amp Rating
| Model NO. | XH-SCT-T70-630A/225mV |
| Phase | Single |
| Operation Condition | Indoor |
| Usage | Protection, Measurement |
| Winding Form | Multilayer Honeycomb Type |
| Insulating Medium | Insulating Paper |
| Installation | Active Type |
| Magnetic Circuit Structure | Single Stage Type |
| Voltage Transformation Principle | Electromagnetic Type |
| Model | Split Core Current Transformer Xh-Sct-T70 |
| ID | 70mm |
| Rated Input | 630A |
| Output | 225mv |
| Certificates | UL, CE, RoHS |
| Accuracy | 0.5 1.0 Class |
| Withstanding Voltage(Hi-Pot) | 3.5kv/1mA/1min |
| Weight | 100g |
| HS | 8504311000 |
| Color | Blue |
| Wire Cable | Twist, Sheath or Others |
| Specification | 42*22*32cm |
| Package Size | 20.00cm * 15.00cm * 10.00cm |
| Package Gross Weight | 1.000kg |
