Mold Parts

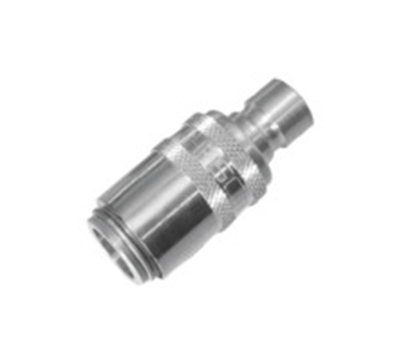

Adapter coupling, open flow

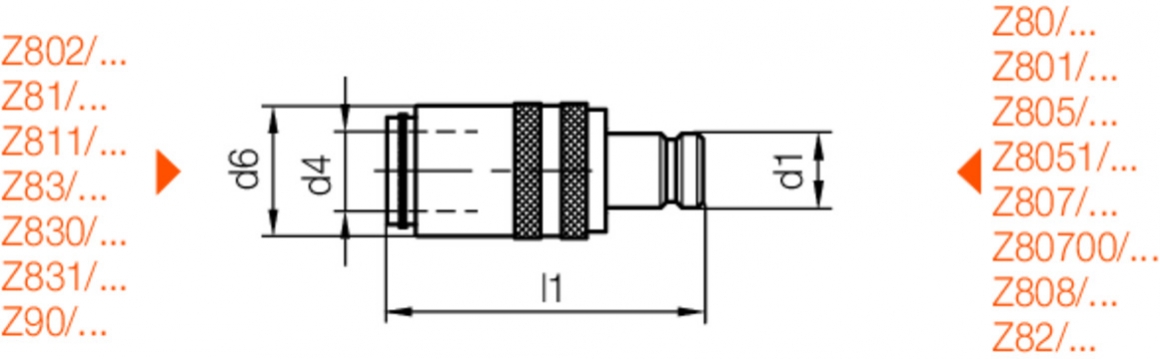

| p | l1 | d6 | d4 | d1 | Product |
|---|---|---|---|---|---|
| 25 | 40,55 | 17,25 | 9 | 9,4 |
Z804/9x9,4
|
| 25 | 43 | 17,5 | 9,4 | 9 |
Z804/9,4x9
|
| 25 | 52,05 | 22,1 | 13 | 13,5 |
Z804/13x13,5
|
| 25 | 55,55 | 23 | 13,5 | 13 |
Z804/13,5x13
|
