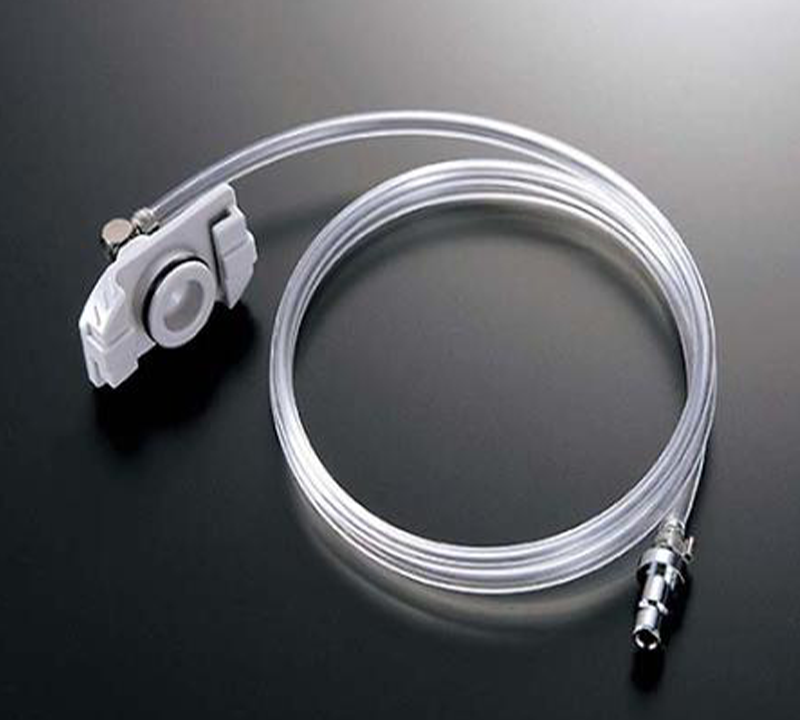

Adapter tube for plastic connector with stopper Musashi At
Best suited for locations with narrow space above the syringe
- AT-5E-H-S-1.0M
- AT-10E-H-S-1.0M
- AT-50E-H-S-1.0M
- AT-50E-H-S-SIGMA-1.0M
In this tube assembly, the tube comes out of the side of the adapter to be connected to the syringe. This model is suitable when there is not enough space above the syringe. e.g., Mounting a dispenser on an automatic machine.
Adapter material: Polyacetal
Tube material: Special elastomer resin (for Σ series dispensers: Polyurethane)
O-ring material: Fluororubber
Note:
This product can be ordered with length specification (in units of 0.5 m). The following example shows how to specify the length.
e.g., If you want to order a 1.5 m-long side connection adapter tube (with stopper) for a 10 mL syringe, the item number is “AT-10E-H-S-1.5M”.
To purchase an adapter tube longer than 1 m dedicated for the Σ series, please contact our sales department.
Adapter material: Polyacetal
Tube material: Special elastomer resin (for Σ series dispensers: Polyurethane)
O-ring material: Fluororubber
| Syringe capacity | Model | Tube length | Applicable dispenser |
| 5 mL | AT-5E-H-S-1.0M | 1 m | - |
| 10 mL | AT-10E-H-S-1.0M | 1 m | - |
| 20 to 70 mL | AT-50E-H-S-1.0M | 1 m | - |
| 1 m | For Σ |
This product can be ordered with length specification (in units of 0.5 m). The following example shows how to specify the length.
e.g., If you want to order a 1.5 m-long side connection adapter tube (with stopper) for a 10 mL syringe, the item number is “AT-10E-H-S-1.5M”.
To purchase an adapter tube longer than 1 m dedicated for the Σ series, please contact our sales department.
