    Amplifier Unit DIN-rail Mount Type Keyence IL-1050

    *1 Assign an input of your choice to the 4 external input lines before using.
    *2 The NPN open collector rated output is: 50 mA max./ch (20 mA when adding an expansion unit) less than 30 V, residual voltage less than 1 V (less than 1.5 V when adding over 6 units including the main unit)
    The PNP open collector rated output is: 50 mA max./ch (20 mA/ch when adding expansion units), less than power voltage, and less than 2 V residual voltage (less than 2.5 V when adding over 6 units including the main unit)
    *3 If there are over 6 additional expansion units, please use a power voltage of 20 to 30 V.

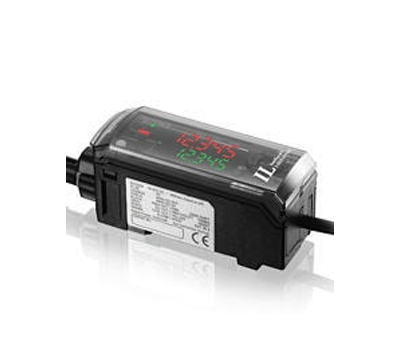

    Amplifier Unit DIN-rail Mount Type Keyence IL-1050

    Model

    IL-1050

    Type

    DIN-rail mount

    Main unit/Expansion unit

    Expansion unit

    Head compatibility

    Compatible

    Display

    Minimum
    displayable unit

    IL-030: 1 µm, IL-065/IL-100: 2 µm, IL-300: 10 µm, IL-600: 50 µm, IL-2000: 100 µm

    Display range

    IL-030/IL-065/IL-100: ±99.999 mm to ±99 mm (4 levels selectable),
    IL-300/IL-600: ±999.99 mm to ±999 mm (3 levels selectable),
    IL-2000: ±9999.9 mm to ±9999 mm (2 levels selectable)

    Display rate

    Approx. 10 times/sec.

    Analog voltage output

    None

    Analog current output

    Control input

    Bank switch input

    Non-voltage input*1

    Zero-shift input

    Stop emission input

    Timing input

    Reset input

    Control output

    Judgement output

    Open collector output (NPN, PNP changeover possible/N.O., N.C. changeover possible)*2

    Alarm output

    Open collector output (NPN, PNP changeover possible/N.C.)*2

    Current

    Power voltage

    Supplied by main unit*3

    Power consumption

    2000 mW or less (at 30 V: 67 mA or less)

    Environmental resistance

    Pollution degree

    2

    Ambient temperature

    -10 to +50 °C 14 to 122 °F (No condensation or freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

    Material

    Case / Front sheet: Polycarbonate; Key tops: Polyacetel; Cable: PVC

    Weight

    Approx. 140 g (including attachments)

    *1 Assign an input of your choice to the 4 external input lines before using.
    *2 The NPN open collector rated output is: 50 mA max./ch (20 mA when adding an expansion unit) less than 30 V, residual voltage less than 1 V (less than 1.5 V when adding over 6 units including the main unit)
    The PNP open collector rated output is: 50 mA max./ch (20 mA/ch when adding expansion units), less than power voltage, and less than 2 V residual voltage (less than 2.5 V when adding over 6 units including the main unit)
    *3 If there are over 6 additional expansion units, please use a power voltage of 20 to 30 V.
