    Amplifier Unit DIN Rail Type Keyence IB-1000

    *1 ±5 V, 1 to 5 V, 0 to 5 V, or 4 - 20 mA should be selected.
    *2 The four external input wires are assigned with desired inputs.
    Rated no-voltage input: ON voltage 2 V or less, OFF current 0.05 mA or less
    Rated voltage input: Max. input rating 30 V or less, ON voltage 7.5 V or more, OFF current 0.05 mA or less
    *3 Rated NPN open collector output: Max. 100 mA/ch (20 mA/ch when expansion units are connected), 30 V or less, residual voltage 1 V or less
    Rated PNP open collector output: Max. 50 mA/ch (20 mA/ch when expansion units are connected), power voltage or less, residual voltage 2 V or less
    *4 Use with the over current protection device which is rated 30 V or more and not more than 1 A.
    *5 Does not include the power consumption of the load.
    The power consumption with expansion units installed is the total of each amplifier unit’s power consumption.
    Example: When using one main unit (IB-1000) with two expansion units (IB-1050) (2400 mW X 1) + (2400 mW X 2) = 7200 mW

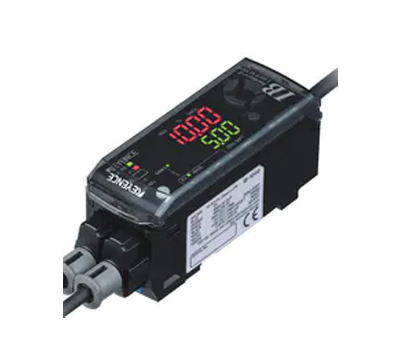

    Amplifier Unit DIN Rail Type Keyence IB-1000

    Model

    IB-1000

    Type

    DIN rail mount

    Main unit/Expansion unit

    Main unit

    Head compatibility

    Yes

    Display

    Display resolution

    0.01 %, 0.1 %, 1 % (switchable)

    Display range

    –99.999 to 99.999, –99.99 to 99.99
    –99.9 to 99.9, –99 to 99 (switchable)

    Digital display method

    Dual7-segmentdisplay
    Upper level: 5 red digits
    Lower level: 5 green digits

    Operating indicators

    Judgment indicator: 2-color (green/red) LED (HI, GO, LO)
    Bank indicator: Green LED x 4
    Laser emission warning indicator: Green LED
    Others: Green LED x 8, red LED x 3

    Analog output voltage

    ±5 V, 1 to 5 V, 0 to 5 V Output impedance 100 Ω *1

    Analog current output

    4 to 20 mA Maximum load resistance 350 Ω *1

    Control Input

    Bank switch input, zero shift input

    Non-voltage input *2

    Control input

    Zero shift input

    Laser emission stop input

    Timing input

    Reset input

    Adjust input

    Control output

    Judgment output (check output)

    Open collector (NPN/PNP switchable, N.O./N.C. switchable) *3

    Power supply

    Power consumption

    2400 mW or less (at 30 V, 80 mA max.) *4 *5 (including analog current output)

    Power voltage

    10 to 30 VDC, including ripple (P-P) 10% Class 2 or LPS *4

    Environmental resistance

    Pollution degree

    2

    Ambient temperature

    -10 to +50 °C (No freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, compound amplitude 1.5 mm, 2 hours each for X, Y, Z axes

    Material

    Main unit case/Front panel: polycarbonate, keytop: polyacetal, cable: PVC

    Weight

    Approx. 150 g (including accessories)

    *1 ±5 V, 1 to 5 V, 0 to 5 V, or 4 - 20 mA should be selected.
    *2 The four external input wires are assigned with desired inputs.
    Rated no-voltage input: ON voltage 2 V or less, OFF current 0.05 mA or less
    Rated voltage input: Max. input rating 30 V or less, ON voltage 7.5 V or more, OFF current 0.05 mA or less
    *3 Rated NPN open collector output: Max. 100 mA/ch (20 mA/ch when expansion units are connected), 30 V or less, residual voltage 1 V or less
    Rated PNP open collector output: Max. 50 mA/ch (20 mA/ch when expansion units are connected), power voltage or less, residual voltage 2 V or less
    *4 Use with the over current protection device which is rated 30 V or more and not more than 1 A.
    *5 Does not include the power consumption of the load.
    The power consumption with expansion units installed is the total of each amplifier unit’s power consumption.
    Example: When using one main unit (IB-1000) with two expansion units (IB-1050) (2400 mW X 1) + (2400 mW X 2) = 7200 mW
