    Sensor

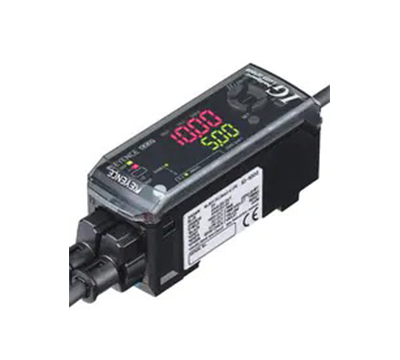

    Amplifier Unit, DIN Rail Type

    Model No.:Keyence IG-1000

    Specifications


    Model

    IG-1000

    Type

    DIN rail mount

    Main unit/Expansion unit

    Main unit

    Analog output

    Yes

    Power consumption
    (including analog
    current output)

    Normal

    2700 mW or less (at 30 V: 90 mA or less)*1

    Power saving function (HALF)

    2300 mW (at 30 V: 77 mA or less)*1

    Power saving function (ALL)

    2200 mW (at 30 V: 74 mA or less)*1

    Digital display method

    Dual 7-seg display
    Upper level: Red, 5 digits
    Lower level: Green, 5 digits

    Display range

    -99.999 to +99.999, -99.99 to +99.99, -99.9 to +99.9, -99 to +99 (selectable)

    Display resolution

    1 µm 0.04 Mil, 10 µm 0.39 Mil, 100 µm 3.94 Mil, 1,000 µm 39.37 Mil (selectable)

    Output

    Judgement output
    (selectable between NPN and PNP)

    NPN (PNP) open collector x3ch, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less,
    N.O./N.C. selectable Max. 50 mA/ch *2

    Response time (judgement output)

    1.96 to 4031.72 ms *3

    Edge check output
    (selectable between NPN and PNP)

    NPN (PNP) open collector x1ch, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less,
    N.O./N.C. selectable Max. 50 mA, *2 response time 20 ms

    Analog output
    (selectable among ±5V, 1-5 V,
    0-5 V, 4-20 mA)

    Voltage output

    Output range

    ±5 V (full scale 10 V)

    Output resistance

    100 Ω

    Maximum load resistance

    Repetition accuracy

    ±1 mV

    Display accuracy

    ±0.05% of F.S.

    Temperature characteristics

    ±0.005% of F.S./°C

    Update cycle

    Same as sensor head sampling cycle

    Response time

    Same as Response time (judgement output)

    Time constant

    10 µs (90 % response)*4

    Current output

    Output range

    4-20 mA (full scale 16 mA)

    Output resistance

    Maximum load resistance

    350 Ω

    Repetition accuracy

    ±1.5 µA

    Display accuracy

    ±0.25% of F.S.

    Temperature characteristics

    ±0.01% of F.S./°C

    Update cycle

    Same as sensor head sampling cycle

    Response time

    Same as Response time (judgement output)

    Time constant

    30 µs (90 % response)*4

    Input

    Gain input

    Input time: 20 ms or more, Response delay time: 120 ms or less (Nonvolatile memory (EEPROM) 1.5 s or less)

    Reset input

    Input time: 20 ms or more, Response delay time: 20 ms or less

    Timing input

    Input time: 2 ms or more, Response delay time: 2 ms or less

    Zero shift input

    Input time: 20 ms or more, Response delay time: 20 ms or less

    Bank A input/Bank B input

    Input time: 20 ms or more, Response delay time: 20 ms or less *3

    Laser emission stop input

    Input time: 2 ms or more, Response delay time: 2 ms or less

    Rating

    Power voltage

    10 to 30 VDC, including Ripple (P-P) 10 %, Class 2 or LPS

    Environmental resistance

    Pollution degree

    2

    Ambient temperature

    -10 to +50 °C 14 to 122 °F (No freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis

    Material

    Main unit case/Front sheet: Polycarbonate, Key top: Polyacetal, Cable: PVC

    Accessories

    Main body × 1, Instruction manual × 1

    Weight

    Approx. 150 g (including supplied items)

    *1 The power consumption with slave units installed is the total of each amplifier unit's power consumption.
    *2 When expansion units are added: Max. 20 mA/ch
    *3 For more details, refer to the User's Manual.
    *4 Delay time that occurs from the analog output circuit after the judgment is output.
