Soldering

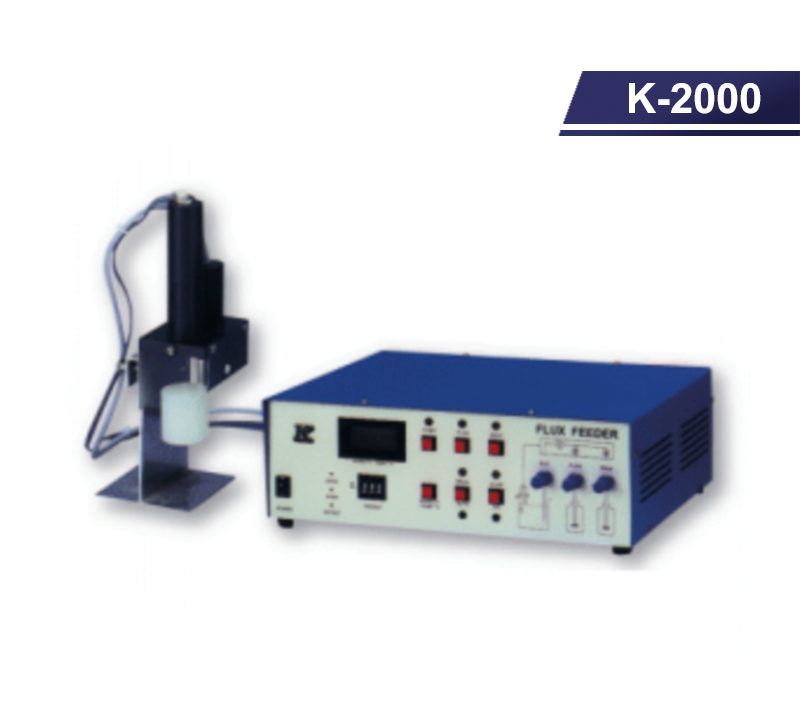

K-2000
Automatically control flux density with ratio control technology. Supply flux and thinner automatically after set-up. The accuracy is up to ±0.002. The best solution for high quality soldering flux.

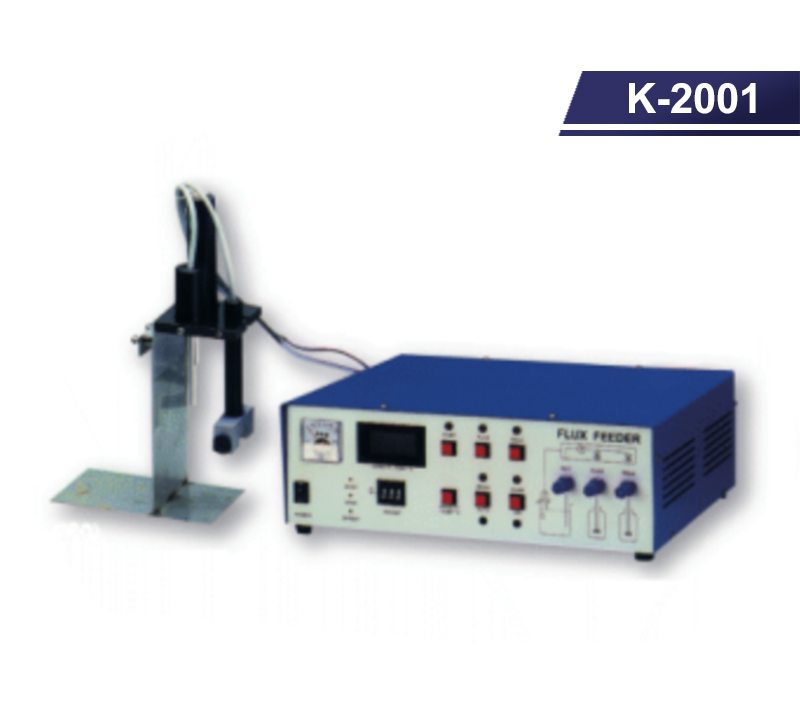

K-2001
Additional function to monitor the pollution/turbidity of flux: 0-500 ppm
Automatically control flux density with ratio control technology. Supply flux and thinner automatically after set-up. The accuracy is up to ±0.002. The best solution for high quality soldering flux.
| Model (mm) | K-2000 |
| Range of specific gravity | 0.78-0.900 |
| Precision | ±0.002 |
| Temperature range | 0-50°C |
| Ambient temp | 0-40°C |
| Controling method | by time ratio |
| Power | 220V, 50/60Hz |
| Fuse | 2A |
| Dimension | 370 x 300 x 130 mm |
| Net Weight | 10.5 kgs |
K-2001
Additional function to monitor the pollution/turbidity of flux: 0-500 ppm
- Automatic refill flux or thinner in a ratio-controlling method.
- Digital display for flux density and temperature, set-up by push buttons.
- Flux level is controlled automatically by certain set-up gravity of flux or thinner.
- The flux ife meter indicates the purity degree of the flux (Model K-2001). It helps to understand the right time of replacing the flux to ensure product quality.
