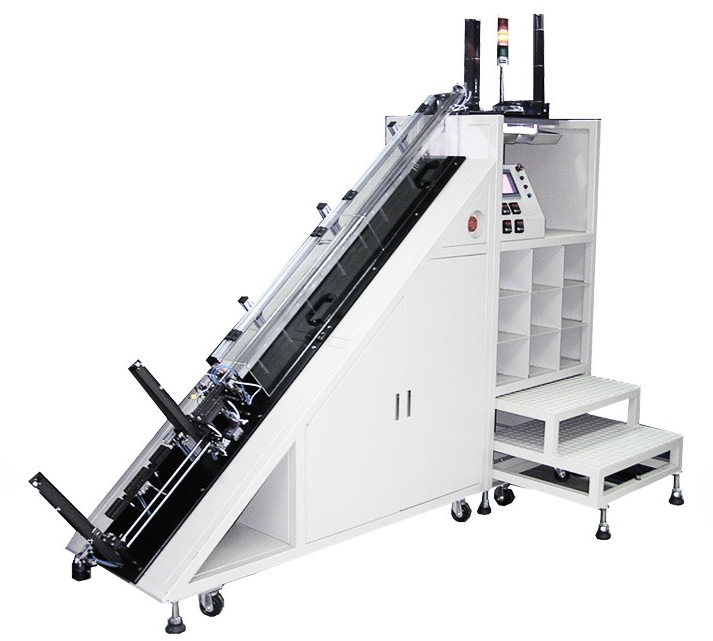

Piranha LED Series Automatic Piranha LED Heating & Sorting Machine
Piranha LED Series Automatic Piranha LED Heating & Sorting Machine S213
Features:
- Tube In / Tube Out: 2 fail bins, 1 pass bin with storage of 25 plastic tubes are available for sorting.
- Exact Orientation: To ensure the measurement accuracy, H325 applies precise positioning module to LED orientation
| Specification | Model No.: S213 |
|---|---|
| Throughput (PPH) | Max. 4.5K (with measurement time < 100 msec) |
| Applicable Type | 3 Bins (1-pass ; 2-fail) |
| Heating Track (m) | 1.5 |
| Heating Tube | 16 Tubes |
| Thermal Controller | 4 Controllers |
| Temperature Range (℃) | Max. 200 |
| Dimensions (mm) | 2,700(W) x 800(D) x 2,200(H) |
| Air Pressure (kg/cm²) | 5 |
| Power Supply (V/Hz) | AC 220 / 50 |
