- PCB width range:10-420mm
- The optional Copper Brush cleans the after-cut residuels.
- Link with the soldering machine into the massive production is available.
- The height of the front and back conveyors is adjustable to meet various kinds of connection.
- PCB Wrap-proof device is equipped.
- The Tungsten Carbide Blades are exctuded in the machine.

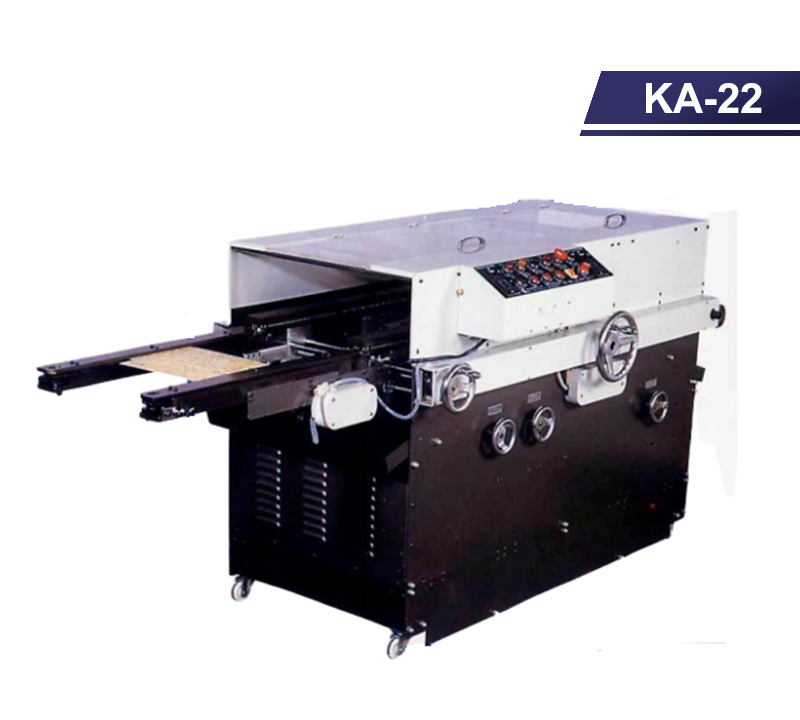

| Model (mm) | KA-22 |
| Type | Twin blade + Brush |
| Thickness Pange | 0.8-2.5 |
| RPM of Spindle | 4500 |
| HP | 3/4 HP |
| Feeding Speed | 0-3 M / minute Adjustable |
| RPM of Brushing | 600 RPM / 1/5HP Brass/Copper Brush |
| MIN Lead Height | 1.0mm |
| PC(L)x(W) MAXPCB Working Sizes |
10-420 |
| Dimension | 2700x 1200 x 1100 |
| Power | 380V,Single phase |
| Net Wight | 350 kgs |
