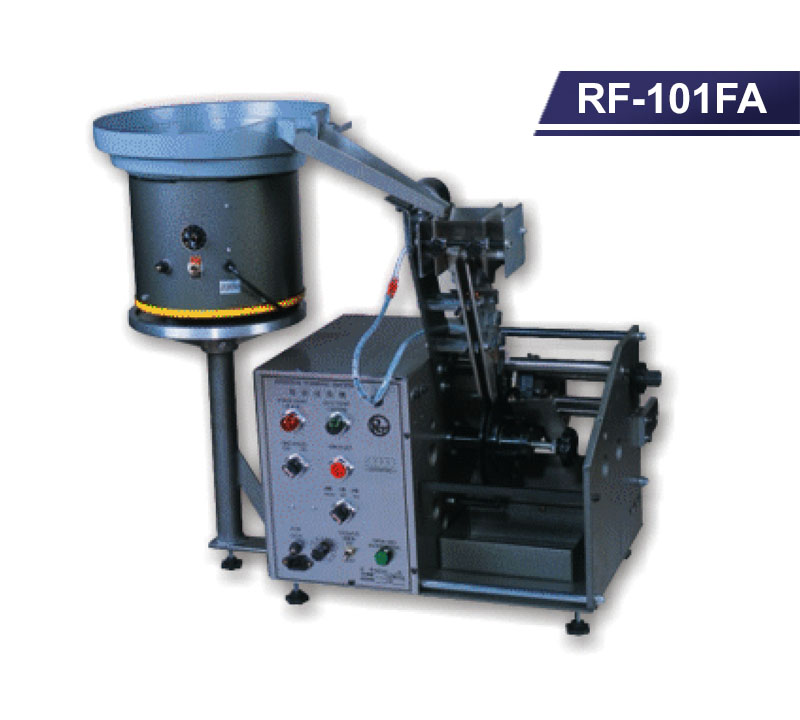

Axial Lead Vertical Forming Machine Stand up mount with kinks
- Form axial parts (resistor, diodes, inductance) leads.
- Multitasker for the mass insertion DIP production.
- Custom forming spec. upon request in a wide range.
- Change dies for diverse spec.
- One spec. applies to one die set; different spec. changes for different die sets.
- Finishing the bin with a waste screen is optional, please advise upon the order.
- VR motor / adjustable speed is available, please mark on the order.
- RF-101F is suitable to form low shoulder (C) and narrow pitch (P).
- When the wire lead length is not long enough in a taped package to form double kinks, suggest adding Paper Tape Ripping
- Apparatus to be YF-730 : rip the tape first, and then cut & form.
| Model |
RF-101F |
| A |
Body lenrth |
3.8-20 |
| B |
Body diameter |
2.3-8 |
| C |
Souder |
最小>1.2 |
| D |
Height(Criical) |
Fixed at 5 mm or more |
| E |
Lead length |
Adjusble |
| P |
Pitch |
2.5的倍數 Fixed at certain |
| W |
Wire diameter |
⌽0.4-⌽1.5mm |
| Model |
RF-101F |
RF-101FA |
RF-101FB |
| Axial Lead Horizontal Mount Forming Machine |
| Type |
For loose and taped parts |
For loose parts only |
For taped parts only |
| Power |
110V/60Hz ; 220V/50Hz |
| Dimenion (L)x(W)x(H) |
1130 x 760 x 850 mm |
1100 x 680 x 700 mm |
800 x 700 x 600 mm |
| Net Wight |
115 kgs |
75 kgs |
65 kgs |
| Capacity |
600pcs of loose parts can be poured into the bowl at a time. |
