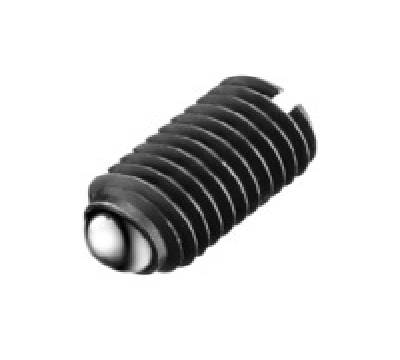

Ball catch, threaded with reinforced spring force

Hasco Z3700/d1xl1
max.250°C
1.0718

add to cart Inquiry Now

Ball catch, threaded with reinforced spring force

ball-catch-threaded-with-reinforced-spring-force-z3700-d1xl1-2

F2	F1	Sn	l2	d2	d1	l1	Product
6,44	5	0,36	7,5	1,5	M3	7	Z3700/3x7
20	12	0,64	9,8	2,5	M4	9	Z3700/4x9
27,8	19	0,72	12,9	3	M5	12	Z3700/5x12
37,6	28	0,8	15	3,5	M6	14	Z3700/6x14
67,8	47	1,2	17,5	5	M8	16	Z3700/8x16
93,2	66	1,6	21	6	M10	19	Z3700/10x19
109,2	66	2	24,5	8	M12	22	Z3700/12x22
151,7	90	2,4	27,5	10	M16	24	Z3700/16x24
226,1	115	4	34,5	12	M20	30	Z3700/20x30

The new ball catches Z3700/... with reinforced spring force and Z3701/... with thread locking are additions to HASCO's extensive standardcomponent range for ball catches.

High retention forces possible
With a slot and hardened stainless steel ball
Stainless steel spring
Operating temperature up to a temporary maximum of 350°C
