Mold Parts

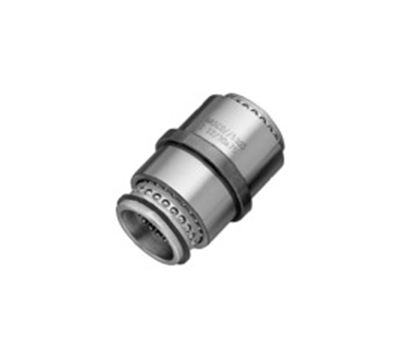

Ball guide bush

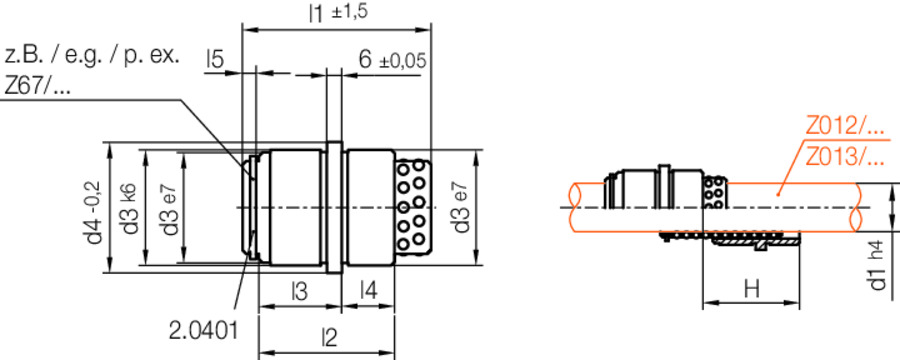

| C | max.H | l5 | l4 | l3 | l2 | d4 | d3 | d1 | l1 | Product |
|---|---|---|---|---|---|---|---|---|---|---|
| 1680 | 50 | 2,1 | 6 | 18 | 24 | 26 | 22 | 12 | 40 |
Z12/12x40
|
| 2280 | 82 | 2,1 | 6 | 18 | 24 | 26 | 22 | 12 | 56 |
Z12/12x56
|
| 3450 | 44 | 3 | 11 | 23 | 34 | 35 | 30 | 18 | 45 |
Z12/18x45
|
| 4200 | 66 | 3 | 11 | 23 | 34 | 35 | 30 | 18 | 56 |
Z12/18x56
|
| 5100 | 96 | 3 | 11 | 23 | 34 | 35 | 30 | 18 | 71 |
Z12/18x71
|
| 7600 | 32 | 4,8 | 21 | 33 | 54 | 52 | 46 | 30 | 56 |
Z12/30x56
|
| 9800 | 70 | 4,8 | 21 | 33 | 54 | 52 | 46 | 30 | 75 |
Z12/30x75
|
| 11900 | 110 | 4,8 | 21 | 33 | 54 | 52 | 46 | 30 | 95 |
Z12/30x95
|
