Mold Parts

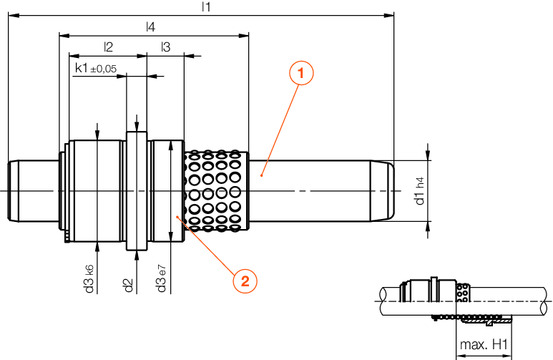

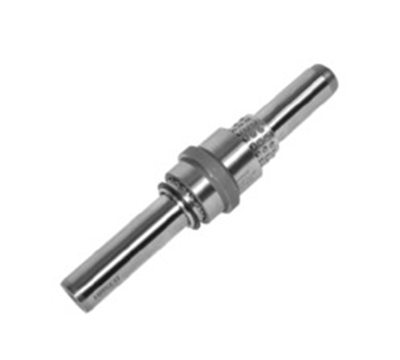

Ball guiding unit, without collar
| Pos2 | Pos1 | k1 | l4 | l3 | l2 | d3 | d2 | d1 | l1 | max.H1 | Product |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Z12/12x40 | Z013/12x100 | 6 | 40 | 6 | 18 | 22 | 26 | 12 | 100 | 50 |
Z0132/12x100x50
|
| Z12/12x56 | Z013/12x100 | 6 | 56 | 6 | 18 | 22 | 26 | 12 | 100 | 82 |
Z0132/12x100x82
|
| Z12/12x40 | Z013/12x125 | 6 | 40 | 6 | 18 | 22 | 26 | 12 | 125 | 50 |
Z0132/12x125x50
|
| Z12/12x56 | Z013/12x125 | 6 | 56 | 6 | 18 | 22 | 26 | 12 | 125 | 82 |
Z0132/12x125x82
|
| Z12/18x45 | Z013/18x125 | 6 | 45 | 11 | 23 | 30 | 35 | 18 | 125 | 44 |
Z0132/18x125x44
|
| Z12/18x56 | Z013/18x125 | 6 | 56 | 11 | 23 | 30 | 35 | 18 | 125 | 66 |
Z0132/18x125x66
|
| Z12/18x45 | Z013/18x160 | 6 | 45 | 11 | 23 | 30 | 35 | 18 | 160 | 44 |
Z0132/18x160x44
|
| Z12/18x56 | Z013/18x160 | 6 | 56 | 11 | 23 | 30 | 35 | 18 | 160 | 66 |
Z0132/18x160x66
|
| Z12/18x71 | Z013/18x160 | 6 | 71 | 11 | 23 | 30 | 35 | 18 | 160 | 96 |
Z0132/18x160x96
|
| Z12/30x56 | Z013/30x160 | 6 | 56 | 21 | 33 | 46 | 52 | 30 | 160 | 32 |
Z0132/30x160x32
|
| Z12/30x75 | Z013/30x160 | 6 | 75 | 21 | 33 | 46 | 52 | 30 | 160 | 70 |
Z0132/30x160x70
|
| Z12/30x56 | Z013/30x240 | 6 | 56 | 21 | 33 | 46 | 52 | 30 | 240 | 32 |
Z0132/30x240x32
|
| Z12/30x75 | Z013/30x240 | 6 | 75 | 21 | 33 | 46 | 52 | 30 | 240 | 70 |
Z0132/30x240x70
|
| Z12/30x95 | Z013/30x240 | 6 | 95 | 21 | 33 | 46 | 52 | 30 | 240 | 110 |
Z0132/30x240x110
|
