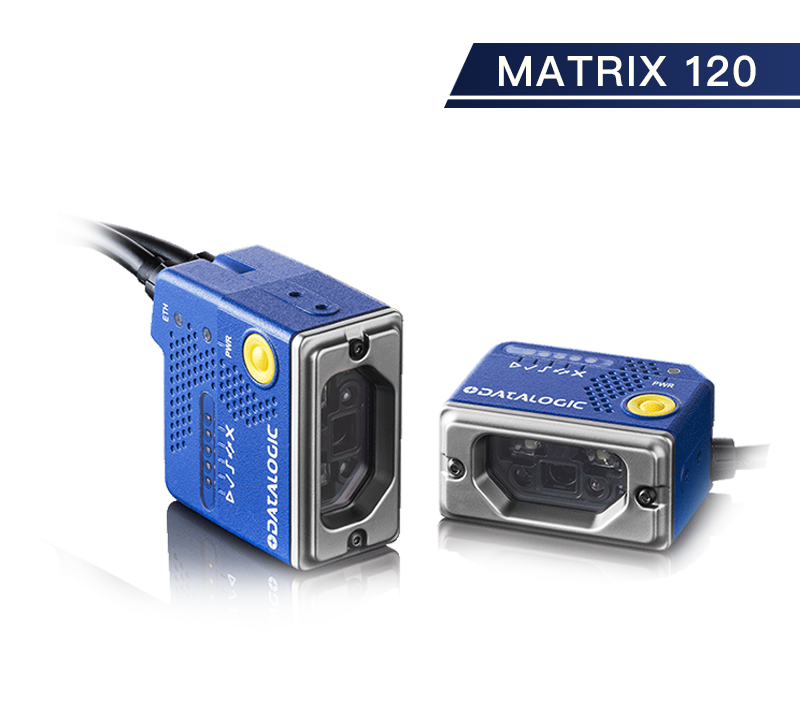

Barcode Reader-Copy-TEST
- Ultra compact dimensions for easy integration
- WVGA – 1.2 MP and wide angle models
- Smart user selectable focus for high application flexibility
- Digimarc Barcode reading technology for added value decoding applications
- Embedded Ethernet connectivity
- Serial and USB options on the same model
- ESD versions for electronic applications
- Polarized Version for 90° mounting and reflecting surfaces
- Models equipped with shorter output cables (100mm of length) for easier integration in OEM machines
- Top industrial grade: IP65; operating temperatures: 0-45 oC / 32 – 133 oF
- DL.CODE software configurator for outstanding ease of setup
- Xpress, Datalogic’s ‘Green Spot’ technology and intuitive HMI for top ease of use
Models
Applications
- Datalogic Matrix 120
- Datalogic Matrix 120 210-000
- Datalogic Matrix 120 210-001
- Datalogic Matrix 120 210-010
- Datalogic Matrix 120 210-011
- Datalogic Matrix 120-210-100
- Datalogic Matrix 120 210-110
- Datalogic Matrix 120 310-001
- Datalogic Matrix 120 310-011
- Datalogic Matrix 120 310-01A
- Datalogic Matrix 120 311-000
- Datalogic Matrix 120 311-010
- Datalogic Matrix 120 311-005
- Datalogic Matrix 120 311-011
- Datalogic Matrix 120 311-015
- Datalogic Matrix 120 311-100
- Datalogic Matrix 120 311-110
Applications
- Electronics: Track and trace PCB board
- manufacturing
- Factory Automation: Print & Apply – label
- verification
- Factory Automation: Food & Beverage –
- traceability
- OEM: Kiosks: ticketing machine
- Healthcare: Clinical Lab – vials identification
- Chemical and biomedical analysis machine
| OPTICAL FEATURES | ELECTRICAL FEATURES | |||
| Sensor | CMOS sensor with Global Shutter/WVGA - 752x480 px CMOS sensor with Global Shutter/1.2 MP - 1280x960 px |
Power Supply Voltage | 5-30 VDC; | |
| Max Power Consumption | 1.6 to 2.4 W | |||
| Frame Rate | up to 57 full-frame/s (WVGA model) , up to 36 full-frame/s (1.2 MP model) |
PHYSICAL CHARACTERISTICS | ||
| Illumination | White Internal Illuminator | Dimensions | 45.4 x 31.1 x 23.5 mm [1.8 x 1.2 x 1 in] (SER+USB model)45.4 x 48.5 x 23.5 mm [1.8 x 1.9 x 1 in] (SER+ETH Cable Versions: STD 1000mm (39 in), SC 100mm (3.9 in) |
|
| Focusing System | Manual adjustment in three precalibrated positions(45, 70, 125mm - WVGA ; 45, 80, 125mm - 1.2 MP) | |||
| Polarizer filter | Available on dedicated models | |||
| Pitch | +/- 35° | |||
| Tilt | 0° - 360°(within vertical FOV) | Weight | Standard cables 117g (4.1 oz) with cable (SER+USB model) - 200g (7.1 oz) with cable (SER+ETH model) Short Cables96 g (3.4 oz) with cable (SER+USB model) - 145 g (5.1 oz) with cable (SER+ETH model) |
|
| DECODING CAPABILITY | ||||
| Readable Symbologies | Omnidirectional reading on any of the following codes: 1D Codes: all standard 1 dimensional symbologies 2D Codes: Data Matrix, QR Code, Micro QR, Maxicode,Aztec, Dot Code Postal Codes: Royal Mail, Japan Post, Planet, Postnet and many more Digimarc Barcode: DWCODETM |
|||
| Case Material | Aluminum | |||
| ENVIRONMENTAL FEATURES | ||||
| Humidity | 90% non condensing | |||
| Reading capability | Omnidirectional on any code type Multilabel / multicode reading |
Protection Class EN60529 | IP65 | |
| Operating Temperature | 0-45 oC / 32 – 113 oF | |||
| Code Quality Metrics | 1D CQ Standard: ISO/IEC 154162D CQ Standard: ISO/IEC 16022/18004, ISO/IEC 29158 (AIM-DPM), ISO/IEC 15415 |
Storage Temperature | -20 to 70 °C (-4 to 158 °F) | |
| Sulfur gas resistance | Available for all the models according to ISO EN 60068-2-43 |
|||
| COMMUNICATIONS INTERFACE | ||||
| Embedcded comunication interfaes |
Ethernet 10/100 Mbit/s: TCP/IP, UDP, FTP and Fieldbus PROFINET IO, Ethernet IP, Modbus TCP Serial RS232/RS422FD up to 115.2 Kbit/s |
ESD Safe | Available on dedicated models | |
| SAFETY & REGULATORY | ||||
| Agency approvals | The product meets necessary safety and regulatory approvals for its intended use. | |||
| INPUTS AND OUTPUTS | ||||
| Digital Inputs | Ethernet 10/100 Mbit/s: TCP/IP, UDP, FTP and Fieldbus PROFINET IO, Ethernet IP, Modbus TCP |
Environmental compliance | Complies to EU RoHS | |
| Regulatory | EN61000-6-2 Electromagnetic Immunity; EN61000-6-4 Electromagnetic Emissions Class A;FCC part 15 for Class A digital device; CSA listed product for Canada and U.S.; CE; KC; EAC |
|||
| Digital Outputs | Serial RS232/RS422FD up to 115.2 Kbit/s | |||
| USER INTERFACE AND PROGRAMMING | ||||
| Operating Mode | Continuous, One Shot, Phase mode | Laser Safety | Class 1M Laser Product as per IEC 60825-1 Complies with CDRH Requirements |
|
| Aiming System | Laser indicator | |||
| User Interface |
|
LED Safety | LED Safety Exempt Risk Group as per EN 62471 | |
| WARRANTY | ||||
| Warranty | 2-Year Factory Warranty | |||
| Device Programming | DL.CODETM Windows-based software (programming via Ethernet or Serial Interface) with Javascript output formatter Serial Host Mode programming X-PRESSTM Human Machine Interface |
|||
