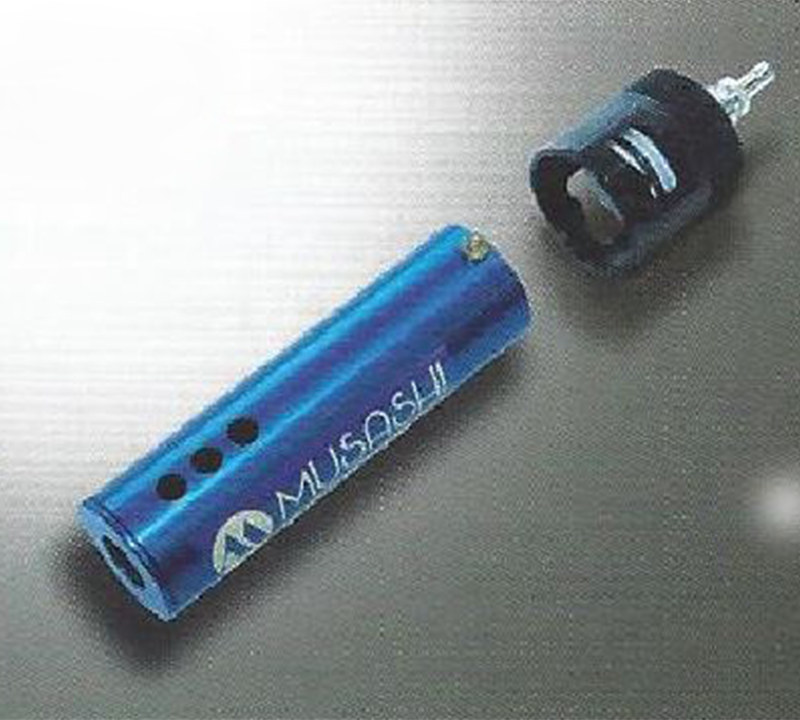

Barrel cartridge Musashi CS CC CH
Workability in barrel replacement is dramatically improved.
This is suitable for large volumes of fluid.
You can select the best size from among 100 mL, 170 mL, and 340 mL according to your daily requirements and dispensing volumes.
- CS CC CH Series

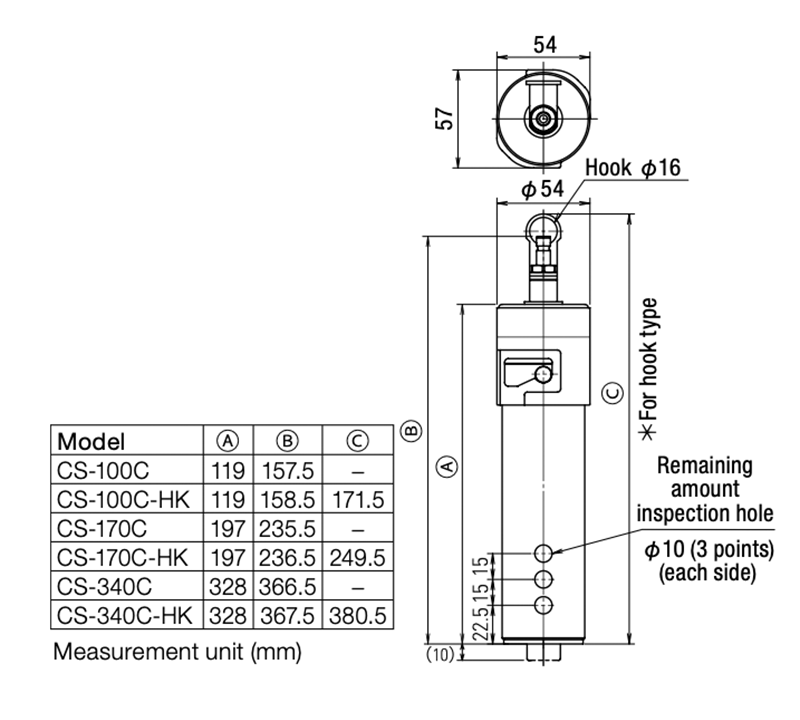

Barrel cartridge
Note:
1. Always applied pressure: 0.5 MPa or less.
2. The barrel cartridge set consists of a cartridge holder and a cartridge cap.
Barrel cartridge components
| Item name | Model | Weight | Minimum Order Quantity | |
| Barrel cartridge | [100 mL] | CS-100C | 265 g | 1 set |
| [170 mL] | CS-170C | 335 g | 1 set | |
| [340 mL] | CS-340C | 455 g | 1 set | |
| [100 mL with hook] | CS-100C-HK | 275 g | 1 set | |
| [170 mL with hook] | CS-170C-HK | 345 g | 1 set | |
| [340 mL with hook] | CS-340C-HK | 465 g | 1 set | |
1. Always applied pressure: 0.5 MPa or less.
2. The barrel cartridge set consists of a cartridge holder and a cartridge cap.
Barrel cartridge components
| Capacity | Item name | Model | Material | Minimum Order Quantity | |
| 100 mL | Cartridge cap | [Without hook] | CC-P-001-1 | - | Select either one |
| [With hook] | CC-P-001-2 | - | |||
| Cartridge holder | [100 mL, barrel use] | CH-100C | Aluminum alloy | 1 | |
| 170 mL | Cartridge cap | [Without hook] | CC-P-001-1 | - | Select either one |
| [With hook] | CC-P-001-2 | - | |||
| Cartridge holder | [170 mL, barrel use] | CH-170C | Aluminum alloy | 1 | |
| 340 mL | Cartridge cap | [Without hook] | CC-P-001-1 | - | Select either one |
| [With hook] | CC-P-001-2 | - | |||
| Cartridge holder | [340 mL, barrel use] | CH-340C | Aluminum alloy | 1 | |
