Dispensing
Barrel parts Musashi PB PP BC BP
Fluid container for cartridge type
These items are a container and a cap to fill fluid in the cartridge.
These items are a container and a cap to fill fluid in the cartridge.
- PB PP BC BP Series

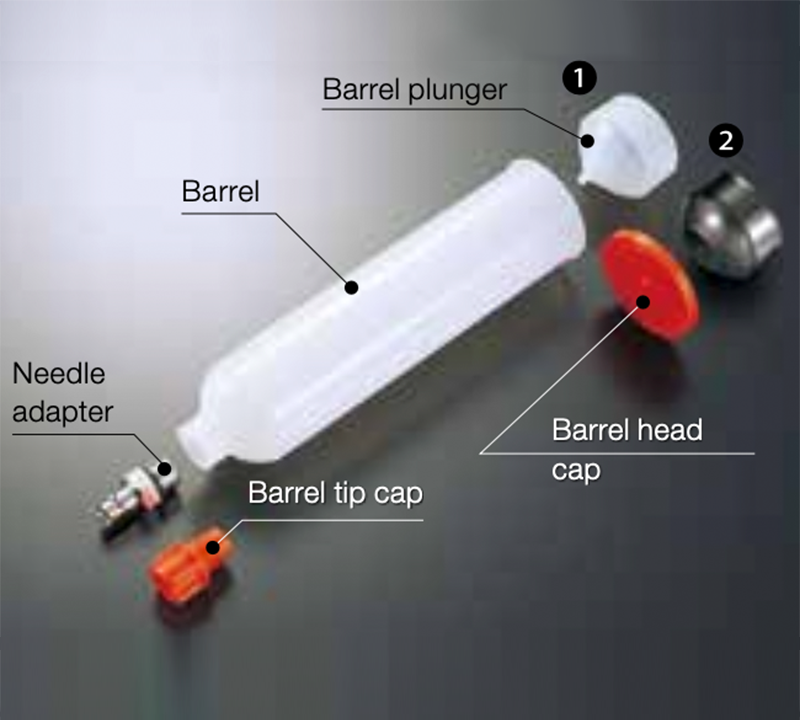

Barrel parts
UV-block Barrel parts
| Item name | Model (former model) | Material | Minimum Order Quantity | Remarks | |
| Barrel | [100 mL type B] | PB-100B | Polyethylene | 10 | - |
| [170 mL type C] | PB-170C | Polyethylene | 10 | ||
| [340 mL type C] | PB-340C | Polyethylene | 10 | ||
| Barrel plunger | 1 [Type W1] | PP-W1 | Polyethylene | 10 | White/Loose |
| 2 [Type B1] | PP-B1 | Polyethylene | 10 | Black/Tight | |
| Barrel head cap [Type 4] | BC-4 | Polyethylene | 10 | - | |
| Barrel tip cap [Type 4] | BP-4 | Polyethylene | 10 | - | |
| Needle adapter | [No.12] | P-NADP-12(NA-2V) | Brass (Nickel plated) | 1 | - |
| [No.13] | P-NADP-13 (NA-2VT) | Fluorine coated | 1Polyethylene | - | |

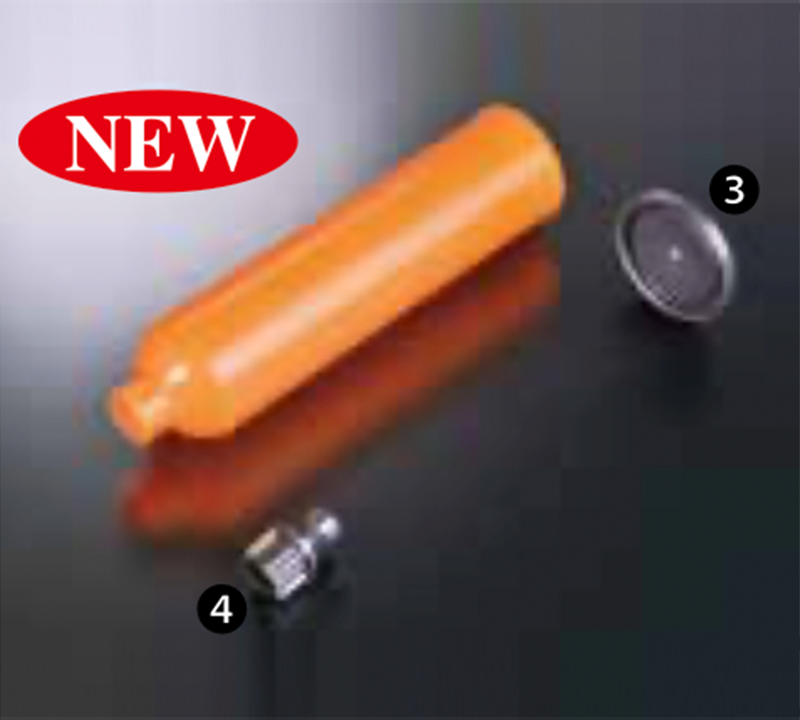

UV-block Barrel parts
| Item name | Model | Material | Minimum Order Quantity | Remarks |
| UV-block barrel [170 mL type C] | PB-170CU-OR | Polypropylene | 10 | - |
| UV-block barrel [340 mL type C] | PB-340CU-OR | Polypropylene | 10 | - |
| 3. UV-block barrel head cap [Type 4] | BC-4U-B | Polypropylene | 10 | - |
| 4. UV-block barrel tip cap [Type 4] | BC-4U-B | Polypropylene | 10 | - |
