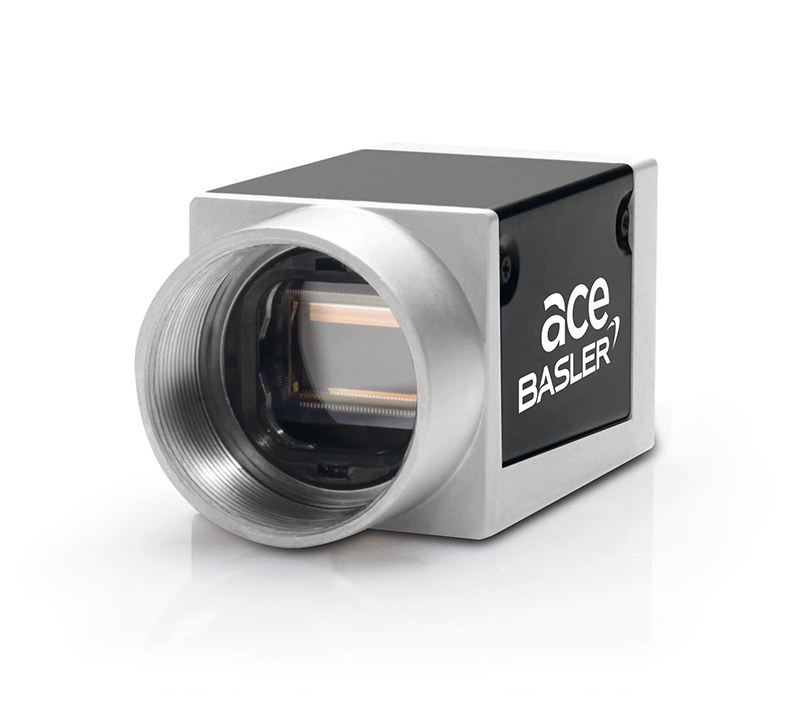

Basler acA1600-20gm
- 1/1.8" CCD, 20 FPS
- 1626 x 1236 Pixels, Mono
- Global Shutter
Specifications
| Resolution (H x V pixels) |
1626 x 1236 Pixels |
| Max. Image Circle |
1/1.8" |
| Sensor Type |
CCD Mono |
| Shutter |
Global Shutter |
| Pixel Size horizontal/vertical |
4.4 µ x 4.4 µ |
| Frame Rate |
20 FPS |
| Interface |
GigE |
| Pixel Bit Depth |
12 bits |
| Exposure Control |
- Programmable via the camera API
- External Trigger Signal
|
| Synchronization |
- External Trigger
- Ethernet Connection
- Free-Run
|
| Housing Size (L x W x H) in mm |
42.0 x 29.0 x 29.0 |
| Housing Temperature |
0 °C - 50 °C |
| Lens Mount |
|
| Digital Input |
1 |
| Digital Output |
1 |
| Power Requirements |
PoE or 12 VDC |
| Power Consumption (typical) |
2.9 W |
| Power Consumption PoE |
3.4 W |
| Weight (typical) |
90 g |
| Sensor |
ICX274 |
| Sensor Size (mm) |
7.16 mm x 5.44 mm |
