Camera & Optics

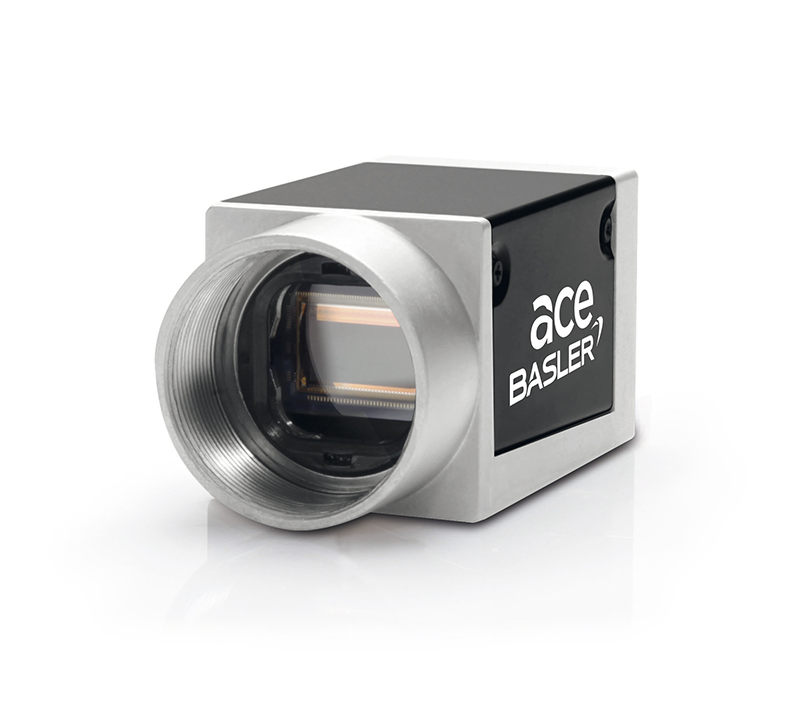

Basler acA1600-60gm
- 1/1.8" CMOS, 60 FPS
- 1602 x 1202 Pixels, Mono
- Global Shutter
Specifications
| Resolution (H x V pixels) |
1602 x 1202 Pixels |
| Max. Image Circle |
1/1.8" |
| Sensor Type |
CMOS Mono |
| Shutter |
Global Shutter |
| Pixel Size horizontal/vertical |
4.5 µ x 4.5 µ |
| Frame Rate |
60 FPS |
| Interface |
GigE |
| Pixel Bit Depth |
12 bits |
| Exposure Control |
- Programmable via the camera API
|
| Synchronization |
- External Trigger
- Ethernet Connection
- Free-Run
|
| Housing Size (L x W x H) in mm |
42.0 x 29.0 x 29.0 |
| Housing Temperature |
0 °C - 50 °C |
| Lens Mount |
|
| Digital Input |
1 |
| Digital Output |
1 |
| Power Requirements |
PoE or 12 VDC |
| Power Consumption (typical) |
2.1 W |
| Power Consumption PoE |
2.7 W |
| Weight (typical) |
90 g |
| Sensor |
EV76C570 |
| Sensor Size (mm) |
7.20 mm x 5.40 mm |
