    Camera & Optics

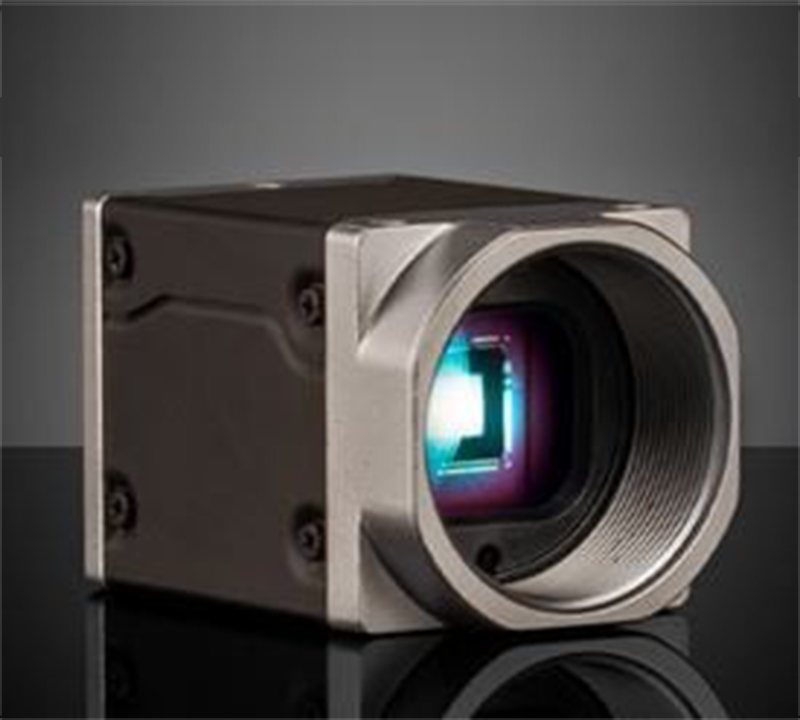

    Basler ace2 a2A1920-160umPRO Monochrome USB3 Pro Camera

    • USB 3.0 with SONY Pregius S Sensors up to 24MP and 160 fps
    • Proven Compact Housing (29 x 29mm)
    • Powerful Computer Vision Feature Set with Optional Beyond Features
    • Basler ace USB 3.0 Cameras Also Available


    Feature Specification
    Video Output USB 3.0
    Type Monochrome Camera
    Manufacturer Basler
    Mounting Threads ¼-20 with Tripod Mount Adapter
    Image Buffer Not Specified
    Camera Family ace2
    Model Number a2A1920-160umPRO
    Imaging Sensor Sony IMX392
    Type of Sensor Progressive Scan CMOS
    Type of Shutter Global
    Camera Sensor Format 1/2.3"
    Resolution (MegaPixels) 2.00
    Pixels (H x V) 1,920 x 1,200
    Pixel Size, H x V (μm) 3.45 x 3.45
    Sensing Area, H x V (mm) 6.6 x 4.1
    Frame Rate (fps) 160.00
    Pixel Depth 8/10/12 bit
    Exposure Time Freely Programmable
    Connector USB 3.0, Micro-B
    Power Supply Power over USB
    Power Consumption (W) 4.3
    GPIOs 1 opto-coupled input line, 2 general purpose I/O (GPIO) lines
    Synchronization Hardware Trigger (GPIO), Software Trigger, or Free-Run
    Dimensions (mm) 36.3 x 29 x 29 (excludes connectors and lens mount)
    Weight (g) <90
    Mount C-Mount
    Housing Full
    Interface Port Orientation Back Panel
    Dynamic Range (dB) 71.7
    Operating Temperature (°C) -10 to +60
    Storage Temperature (°C) -20 to +80
    GPIO Connector Type 6-pin M8
    Machine Vision Standard USB3 Vision v1.0, GenICam
