Camera & Optics

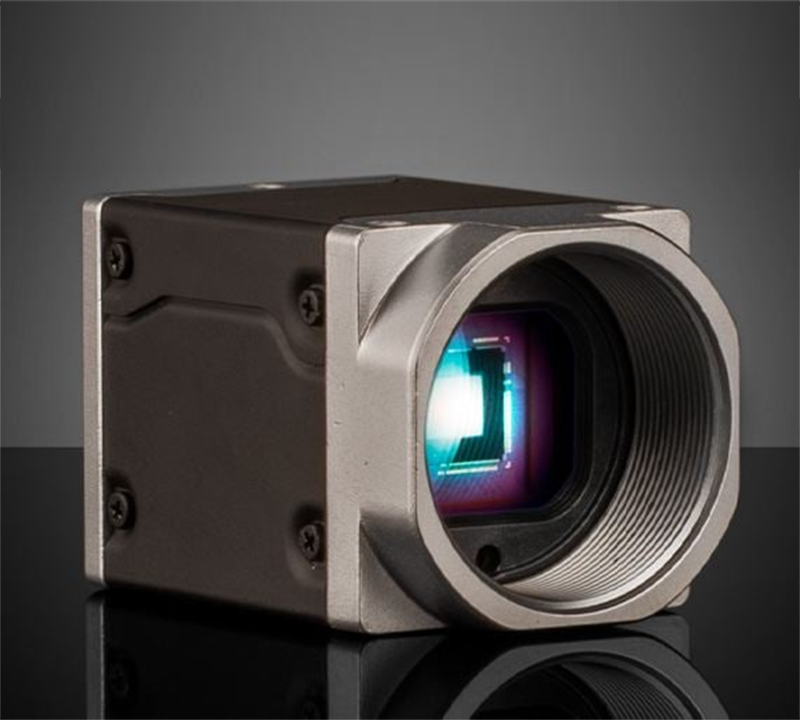

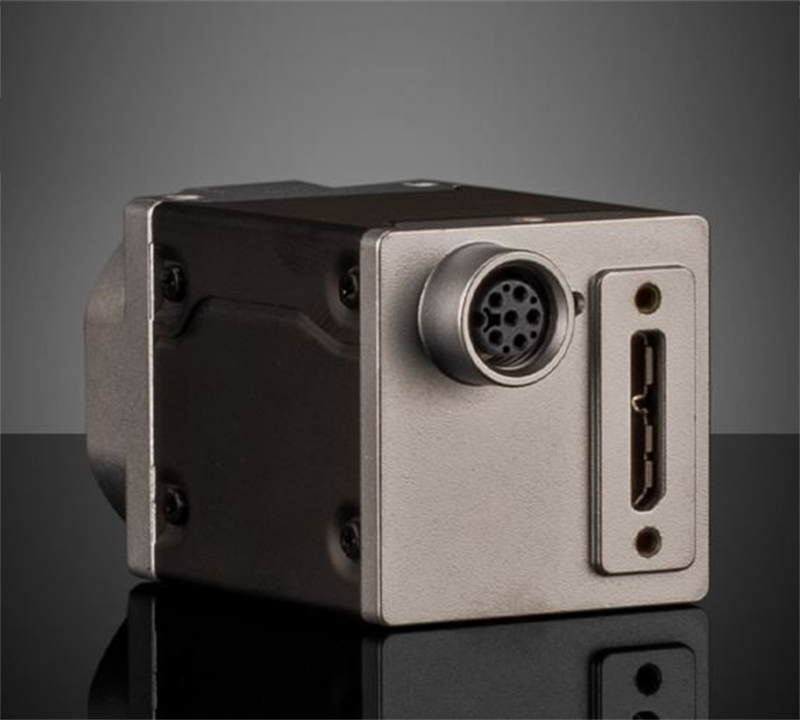

Basler ace2 a2A2590-60umPRO Monochrome USB3 Pro Camera
- USB 3.0 with SONY Pregius S Sensors up to 24MP and 160 fps
- Proven Compact Housing (29 x 29mm)
- Powerful Computer Vision Feature Set with Optional Beyond Features
- Basler ace USB 3.0 Cameras Also Available
| Specification |
Details |
| Video Output |
USB 3.0 |
| Type |
Monochrome Camera |
| Manufacturer |
Basler |
| Mounting Threads |
¼-20 with Tripod Mount Adapter |
| Image Buffer |
Not Specified |
| Camera Family |
ace2 |
| Model Number |
a2A2590-60umPRO |
| Imaging Sensor |
Sony IMX334 |
| Type of Sensor |
Progressive Scan CMOS |
| Type of Shutter |
Rolling |
| Camera Sensor Format |
1/2.8" |
| Resolution (MegaPixels) |
5.00 |
| Pixels (H x V) |
2,592 x 1,944 |
| Pixel Size, H x V (μm) |
2.00 x 2.00 |
| Sensing Area, H x V (mm) |
5.2 x 3.9 |
| Frame Rate (fps) |
60.00 |
| Pixel Depth |
8/10/12 bit |
| Exposure Time |
Freely Programmable |
| Connector |
USB 3.0, Micro-B |
| Power Supply |
Power over USB |
| Power Consumption (W) |
3.0 |
| GPIOs |
1 opto-coupled input line, 2 general purpose I/O (GPIO) lines |
| Synchronization |
Hardware Trigger (GPIO), Software Trigger, or Free-Run |
| Dimensions (mm) |
36.3 x 29 x 29 (excludes connectors and lens mount) |
| Weight (g) |
<90 |
| Mount |
C-Mount |
| Housing |
Full |
| Interface Port Orientation |
Back Panel |
| Dynamic Range (dB) |
69.3 |
| Operating Temperature (°C) |
-10 to +60 |
| Storage Temperature (°C) |
-20 to +80 |
| GPIO Connector Type |
6-pin M8 |
| Machine Vision Standard |
USB3 Vision v1.0, GenICam |
