Camera & Optics

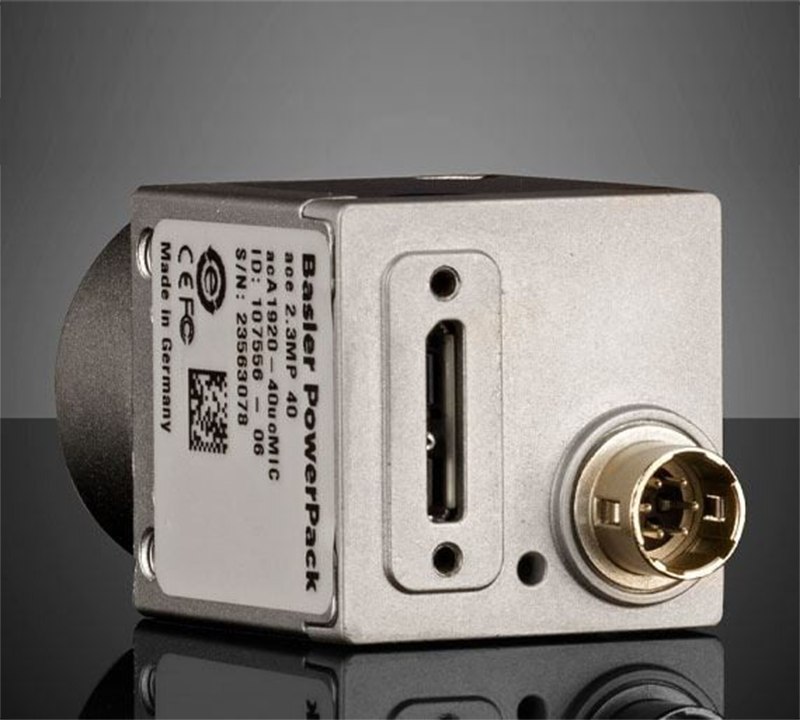

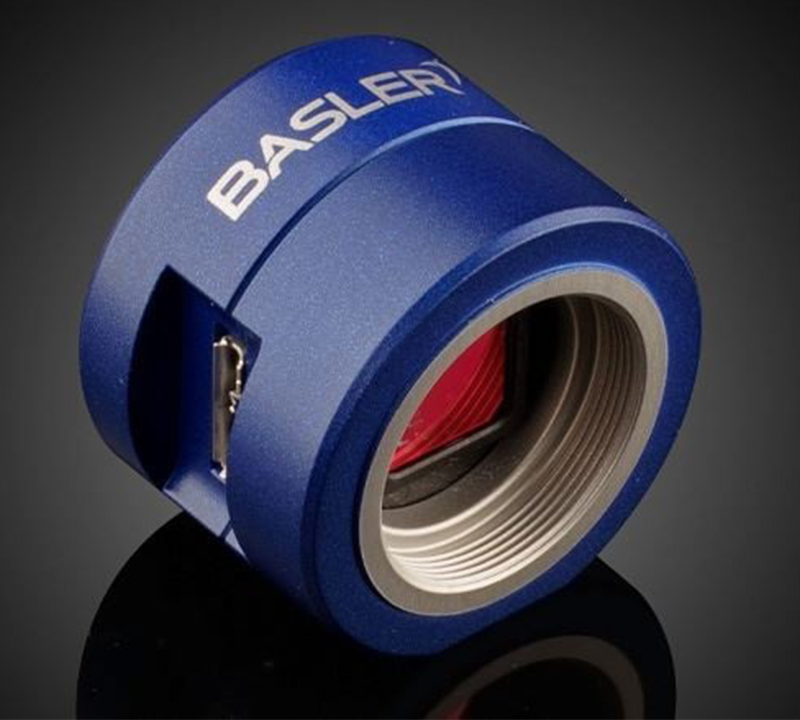

Basler PowerPack Microscopy Camera Ace 2.3 MP
- High Performance Cameras Featuring State-of-the-Art CMOS Sensors
- Professional Software for Image Acquisition and Analysis Included
- Unique Advanced Image Enhancement and Color Adjustment Technology
| Specification |
Details |
| Video Output |
USB 3.0 |
| Type |
Color Microscopy Camera |
| Manufacturer |
Basler |
| Mounting Threads |
¼-20 with Tripod Mount Adapter |
| Image Buffer |
Not Specified |
| Note |
Accessories include a USB3 cable |
| Camera Family |
ace |
| Model Number |
Ace 2.3 MP |
| Imaging Sensor |
Sony IMX249 |
| Type of Sensor |
Progressive Scan CMOS |
| Type of Shutter |
Global |
| Camera Sensor Format |
1/1.2" |
| Resolution (MegaPixels) |
2.30 |
| Pixels (H x V) |
1,920 x 1,200 |
| Pixel Size, H x V (μm) |
5.86 x 5.86 |
| Sensing Area, H x V (mm) |
11.25 x 7.03 |
| Frame Rate (fps) |
40.00 |
| Exposure Time |
Manual and Automatic |
| Connector |
USB 3.0, Micro-B with Screw Locks |
| Power Supply |
Power over USB |
| Power Consumption (W) |
Not Specified |
| GPIOs |
Not Specified |
| Synchronization |
Hardware Trigger (GPIO), Software Trigger, or Free-Run |
| Dimensions (mm) |
29.3 x 29 x 29 (excludes connectors and lens mount) |
| Weight (g) |
80 |
| Mount |
C-Mount |
| Housing |
Full |
| Interface Port Orientation |
Side Panel |
| Dynamic Range (dB) |
73.00 |
| Operating Temperature (°C) |
0 to +50 |
| Storage Temperature (°C) |
-20 to +80 |
| GPIO Connector Type |
6-pin Hirose (HR10) |
| Machine Vision Standard |
USB3 Vision v1.0 |
