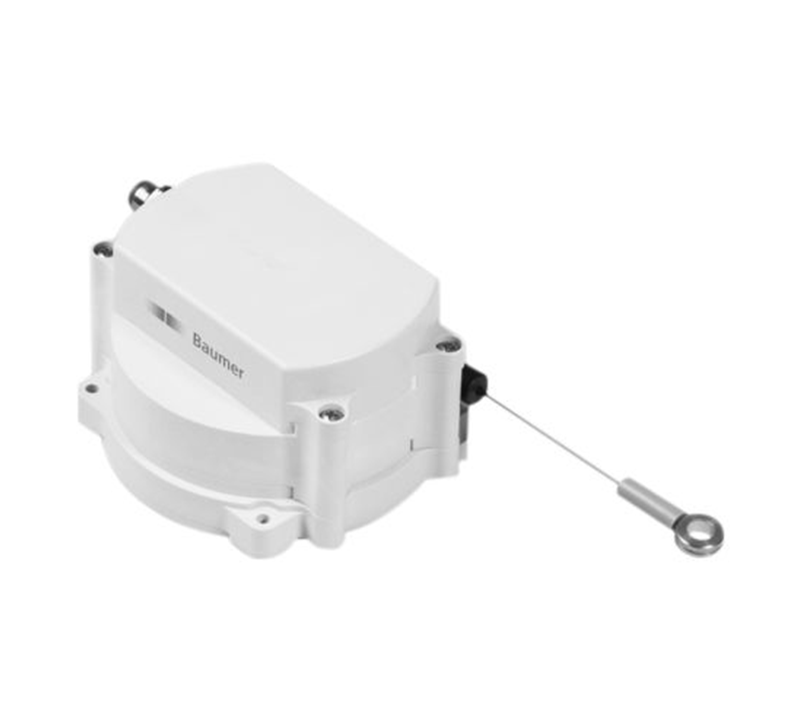

Sensor
| Technical data - electrical ratings | |
|---|---|
| Voltage supply | 8...30 VDC 12...30 VDC |
| Reverse polarity protection | Yes |
| Short-circuit proof | Yes |
| Consumption typ. | 30 mA (24 VDC, w/o load, current output) 10 mA (24 VDC, w/o load, voltage output) |
| Initializing time | ≤500 ms after power on |
| Interface | Analog 0...10 V / 0.5...4.5 V / 4...20 mA |
| Load resistor | Between Out/0 V ≥3 kΩ / voltage output 270 Ω at 10 VDC (500 Ω at 15 VDC) / current output |
| Function | Linear position feedback |
| Resolution | 12 bit |
| Linearity | ±1 % FS |
| Absolute accuracy | ±1.8 % FS (+25 °C) ±2 % FS (-40...+85 °C) |
| Sensing method | Magnetic |
| Interference immunity | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-3 |
| Technical data - mechanical design | |
| Protection DIN EN 60529 | IP 67 (housing, drainage holes closed), IP 54 (cable inlet) |
| Materials | Cable: Stainless steel cable AISI 316 coated with nylon PA12 Housing: plastic |
| Operating temperature | -40...+85 °C |
| Measuring length | 2.3 m 4.7 m |
| Cable diameter | 0.9 mm |
| Cable fastening | Eyelet Height: 5 mm Internal diameter: 8 mm Outer diameter: 15 mm |
| Pull-in force | >1.5 N (pull-in force reduced at low temperatures) |
| Pull-out force | ≤8 N |
| Relative humidity | 95 % non-condensing |
| Resistance | DIN EN 60068-2-6 Vibration 10 g, 10-2000 Hz DIN EN 60068-2-27 Shock 50 g, 11 ms |
| Weight approx. | 625 g |
| Connection | Cable 2 m, radial Flange connector M12, 5-pin Flange connector M12, 8-pin |
| Instruction | Please consider the assembly instructions |
