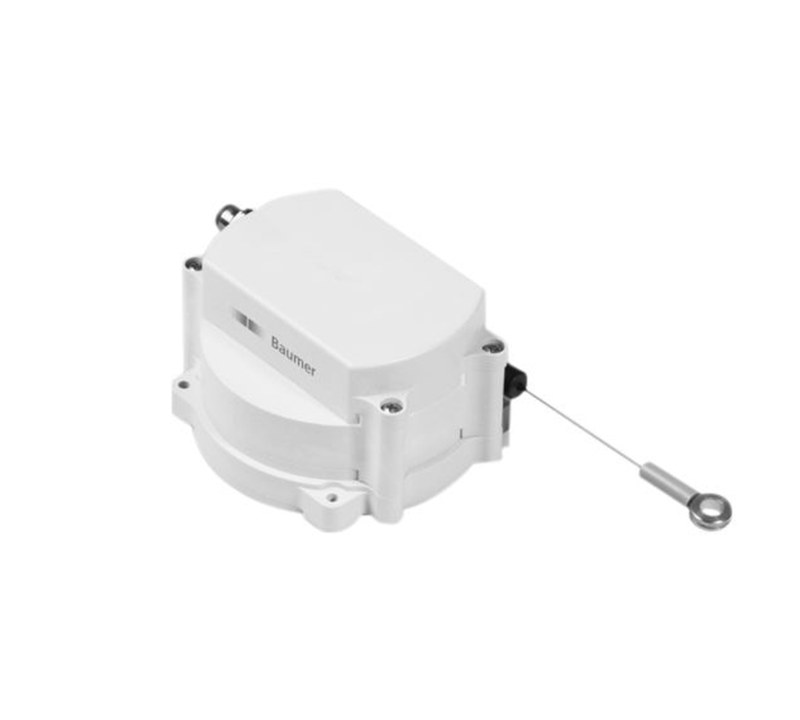

Cable transducer Baumer GCA5PM047.RAN.C50.A
- Redundant magnetic position sensing
- Interface CANopen® redundant
- Operating temperature -40...+85 °C
- Protection IP 67
- Flange connector M12 or cable
- Measuring length 2.3 m and 4.7 m
- Designed for harsh environmental conditions
- Removable stickers for drainage
| Technical Data - Electrical Ratings | |
|---|---|
| Voltage Supply | 10...30 VDC |
| Consumption Typ. | 30 mA (24 VDC, w/o load) |
| Initializing Time Typ. | 12 ms after power on |
| Interface | CANopen® |
| Function | Linear position feedback |
| Profile Conformity | CANopen® CiA DS 301, DS 406, DS 410 |
| Measuring Range | Up to 4.7 m (linear position), 360° (inclination angle) |
| Resolution | 0.1 mm (linear position), 0.1° (inclination angle) |
| Temperature Coefficient | 0.02 °/K (inclination angle) |
| Linearity | ±0.5 % FS (linear position), ±0.5 % FS (inclination angle) |
| Absolute Accuracy | ±0.8 % FS (+25 °C / linear position), ±1.8 % FS (-40...+85 °C / linear position), ±0.2° (+25 °C / inclination angle) |
| Sensing Method | Magnetic |
| Code Sequence | Programmable |
| Interference Immunity | DIN EN 61000-6-2 |
| Emitted Interference | DIN EN 61000-6-3 |
| Programmable Parameters | Operating modes, Rotating direction, Scaling, Zero position |
| Technical Data - Mechanical Design | |
| Protection DIN EN 60529 | IP 67 (housing, drainage holes closed), IP 54 (cable inlet) |
| Materials | Cable: Stainless steel cable AISI 316 coated with nylon PA12, Housing: plastic |
| Operating Temperature | -40...+85 °C |
| Measuring Length | 2.3 m, 4.7 m |
| Cable Acceleration | ≤50 m/s² |
| Cable Diameter | 0.9 mm |
| Cable Fastening | Eyelet, Height: 5 mm, Internal diameter: 8 mm, Outer diameter: 15 mm |
| Pull-in Force | >1.5 N (pull-in force reduced at low temperatures) |
| Pull-out Force | ≤8 N |
| Relative Humidity | 95 % non-condensing |
| Resistance | DIN EN 60068-2-6 Vibration 10 g, 10-2000 Hz, DIN EN 60068-2-27 Shock 50 g, 11 ms |
| Weight Approx. | 625 g |
| Connection | Cable 2 m, radial, Flange connector M12, 5-pin |
| Instruction | Please consider the assembly instructions |
