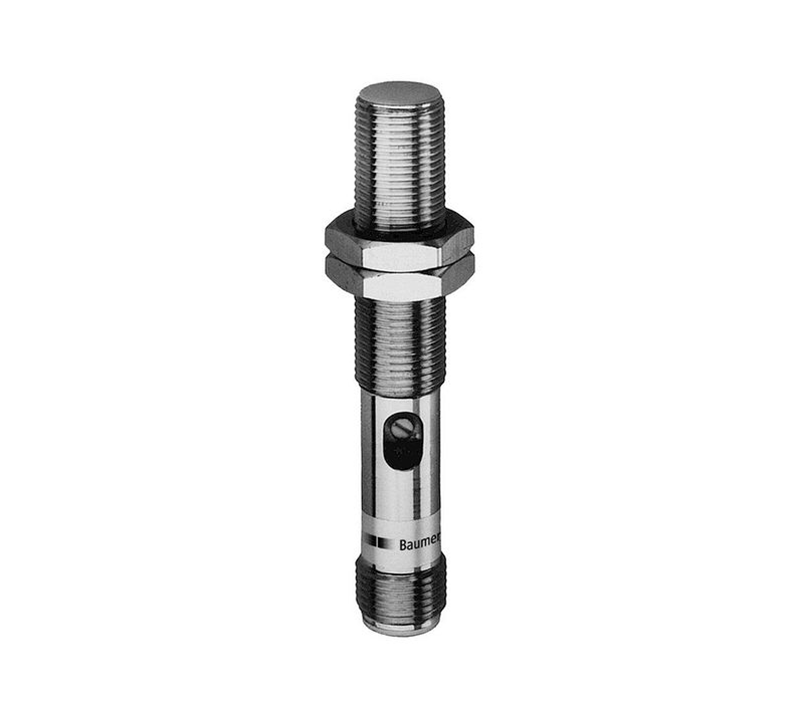

Capacitive proximity sensors Baumer CFAM 12P1600/S14
| General Data |
| Nominal Sensing Distance Sn |
4 mm |
| Nominal Sensing Distance Sn Adjustable |
0.5 ... 4 mm |
| Mounting Type |
Flush |
| GND Electrode |
Yes |
| Temperature Drift |
± 15% (+10 ... +70 °C) |
| Sensitivity Adjustment |
Potentiometer, 240° |
| Output Indicator |
LED yellow |
| Electrical Data |
| Voltage Supply Range +Vs |
10 ... 30 VDC |
| Current Consumption Max. (no load) |
20 mA |
| Output Circuit |
PNP make function (NO) |
| Output Current |
< 200 mA |
| Voltage Drop Vd |
< 1.5 VDC |
| Switching Frequency |
< 50 Hz |
| Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Mechanical Data |
| Type |
Cylindrical threaded |
| Housing Material |
Brass nickel plated |
| Dimension |
12 mm |
| Housing Length |
76 mm |
| Connection Types |
Connector M12 |
| Ambient Conditions |
| Operating Temperature |
-25 ... +75 °C |
| Protection Class |
IP 65 |
| Field of Application |
| Detection of Non-conductive Media |
Yes |
| Fill Level Detection Through Container |
Yes |
| Liquids in Direct Contact |
No |
| Object Detection / Bulk Goods |
Yes |
