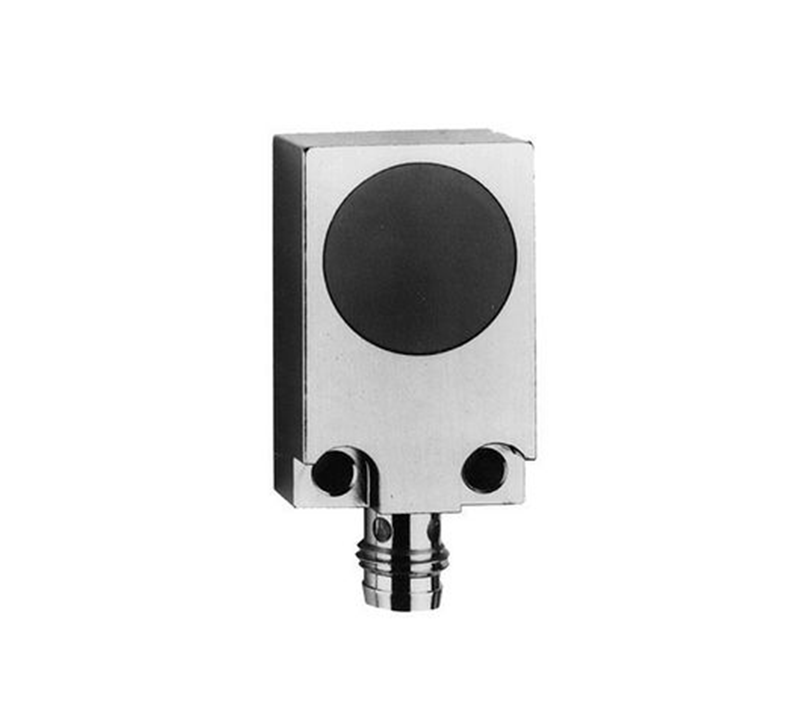

Capacitive proximity sensors Baumer CFDM 20P1500/S35L
| General Data |
| Nominal sensing distance Sn |
5 mm |
| Mounting type |
Flush |
| GND electrode |
Yes |
| Temperature drift |
± 15 % (+10 ... +70 °C) |
| Sensitivity adjustment |
No |
| Output indicator |
4 port LED |
| Electrical Data |
| Voltage supply range +Vs |
10 ... 30 VDC |
| Current consumption max. (no load) |
20 mA |
| Output circuit |
PNP make function (NO) |
| Output current |
< 200 mA |
| Voltage drop Vd |
< 1.5 VDC |
| Switching frequency |
< 50 Hz |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical Data |
| Type |
Rectangular |
| Housing material |
Brass nickel plated |
| Dimension |
20 mm |
| Housing length |
35 mm |
| Connection types |
Connector M8 |
| Ambient Conditions |
| Operating temperature |
-25 ... +75 °C |
| Protection class |
IP 65 |
| Field of Application |
| Detection of non-conductive media |
Yes |
| Fill level detection through container |
Yes |
| Liquids in direct contact |
No |
| Object detection / bulk goods |
Yes |
