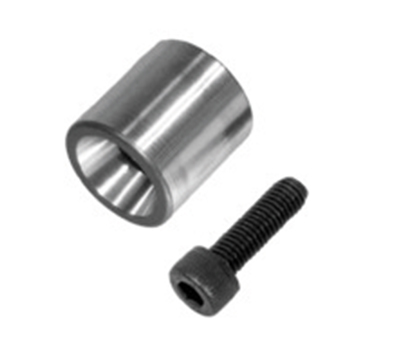

Centring piece, round, female component

Hasco Z0511/d1
54 HRC
1.2067
~ DIN ISO 8406

add to cart Inquiry Now

Centring piece, round, female component
253541637464853508-DESKTOP-DEFAULT

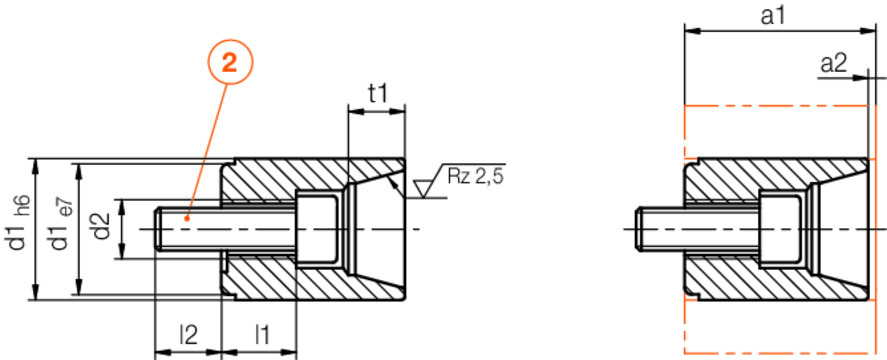

Pos2	t1	a2	a1	l2	l1	d2	d1	Product
Z31/3x12	5	0,5	11,5	7,5	3,5	M4	10	Z0511/10
Z31/3x16	5	1	17	7,5	8,5	M4	12	Z0511/12
Z31/4x14	7	1	17	8	6	M5	14	Z0511/14
Z31/4x14	7	1	17	8	5,8	M5	16	Z0511/16
Z31/6x20	10	1	27	9,5	10,6	M8	20	Z0511/20
Z31/6x20	11	1	27	11	9,2	M8	25	Z0511/25
Z31/6x20	11	1	27	11	9,2	M8	26	Z0511/26
Z31/8x25	16	1	36	13	12,2	M10	30	Z0511/30
Z31/8x25	16	1	36	13	12,2	M10	32	Z0511/32
Z31/8x30	20	1	46	13	16,8	M10	42	Z0511/42

The HASCO locating unit Z 051/. . . is used for centring mould plates to prevent damage to cavity inserts. It reliably absorbs any transverse forcesthat develop in the mould via conicalsurfaces.

Interchangeable parts
Single parts Z 0511/. . . and Z 0512 /. . . are available ex stock
Limited height tolerance
Simple screwing from the mould parting line and from the rear is possible
All functional surfaces are ground
Screws are included with the package
Fast removal with extraction thread
Intermediate sizes prevent undesired rotation
Geared to distance discs Z 055 /. . . possible
