    Mold Parts

    Centring sleeve

    • Hasco Z20/d3xl1
    • 690 HV 30
    • ~ 1.0401
    • ~ DIN 16759
    add to cart Inquiry Now

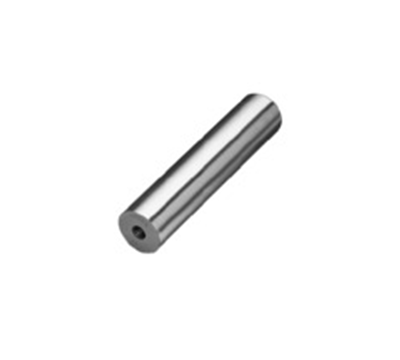

    Centring sleeve


    centring-sleeve-z20-d3xl1-2

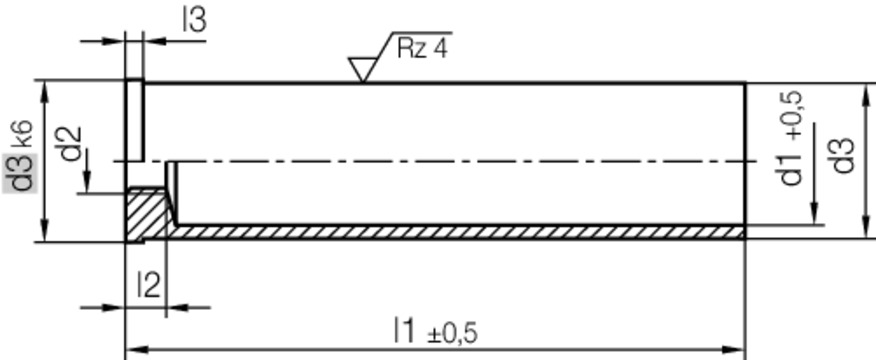

    l3 l2 d2 d1 Tol.d3 d3 l1 Product
    2,5 8,849 M8 11 g6 14 20
    Z20/14x20
    2,5 8,849 M8 11 g6 14 30
    Z20/14x30
    2,5 8,849 M8 11 g6 14 40
    Z20/14x40
    2,5 8,849 M8 11 g6 14 50
    Z20/14x50
    2,5 8,849 M8 11 g6 14 60
    Z20/14x60
    2,5 8,849 M8 11 g6 14 70
    Z20/14x70
    2,5 8,849 M8 11 g6 14 80
    Z20/14x80
    2,5 8,849 M8 11 g6 14 100
    Z20/14x100
