Components & Accessories

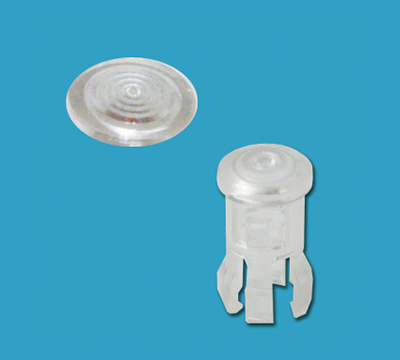

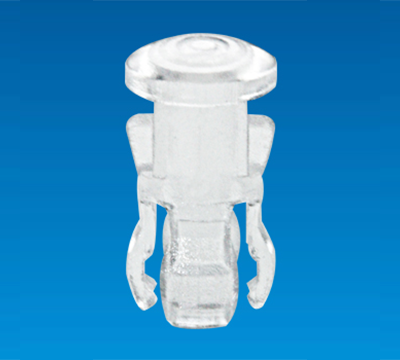

CLEAR LED CAP ROUND EDK-3F
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
- Accept customized color in accordance with client demand.
CLEAR LED CAP ROUND EDK-3F
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
- Accept customized color in accordance with client demand.
SPECIFICATION
- MATERIAL: PC (UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| FOR Ø3 2PIN LED LAMP | ||||||
| PART NO | A | B | E | F | T | PACKAGE |
| EDK-3F | 9.1 | Ø5.0 | Ø4.3 | 3.8 | 1.1 | 1000 |
| EDK-3HW | 9.3 | Ø5.3 | Ø4.8 | 3.9 | 0.8 | |
