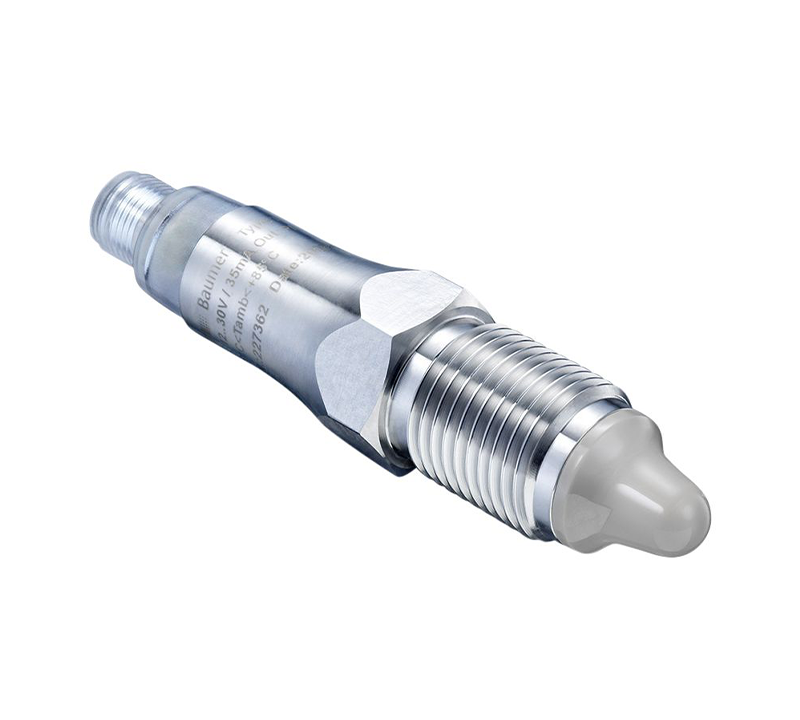

Sensor
| Housing | |
| Style | Compact design |
| Dimension | Refer to dimensional drawings (page 4 f.) |
| Material | Stainless steel |
| Electrical connection | |
| Connector variants | M12, 4 pin, polycarbonate M12, 4 pin, stainless steel |
| Cable outlet | 5 m, 4-wire, PVC |
| Ambient conditions | |
| Operating temperature range | -40 ... 85 °C |
| Storage temperature range | -40 ... 85 °C |
| Humidity (IEC 68-2-38) | < 98 % RH, condensing |
| Protection class (IEC 60529) | IP67 IP69K (with appropriate cable) |
| Vibration | IEC 60068-2-6 GL Test 2 |
| Process connection | |
| Connection variants | Refer to dimensional drawings (page 4 f.) |
| Mounting position | Any (top, bottom, side) |
| Wetted parts material | PEEK Natura AISI 316L (1.4404) AISI 304 (1.4301) (optional) |
| Surface roughness wetted parts | Ra < 0.8 µm |
| Process conditions | |
| Process temperature | Refer to table (page 2 f.) |
| Process pressure | Refer to table (page 2 f.) |
| Power supply | |
| Voltage supply range | 12 ... 30 V DC |
| Current consumption (no load) | 25 mA typ., 50 mA max. |
| Reverse polarity protection | Yes |
| Power-up time | < 2 s |
| Output signalization | |
| Switching polarity | PNP NPN |
| Current rating | 20 mA max. |
| Short circuit protection | Yes |
| Voltage drop | PNP: (+Vs -1.5 V) ± 0.5 V, Rload = 10 kΩ NPN: (+1.5 V) ± 0.5 V, Rload = 10 kΩ |
| Off leak current | ± 100 µA max. |
| Switching logic | Normally open (NO) Normally closed (NC) |
| Sensor performance | |
| Repeatability | ± 1 mm |
| Hysteresis | ± 1 mm |
| Response time | 0.1 s typ. (0.15 ± 0.05 s) |
| Damping | 0.0 ... 10.0 s (adjustable) |
| Factory settings | |
| Switching range (dielectric constant DC) | < 75 % (DC > 2) |
| Damping | 0.1 s |
| Compliance and approvals | |
| EMC Immunity | EN 61326 |
| EMC Emission | EN 61326 (installed on a metal tank) |
| Explosion protection | ATEX II 1 G Ex ia IIC T4/T5 ATEX II 1 D Ex ta IIIC T100 °C Da ATEX II 3 G Ex nA II T4/T5 |
| Safety | cULus Listed, Class 2, E365692 |
| Hygiene | Refer to table |
| Railway | EN 50155 |
| Marine | Refer to table |
Note: Information on product characteristics may relate to defined product options
