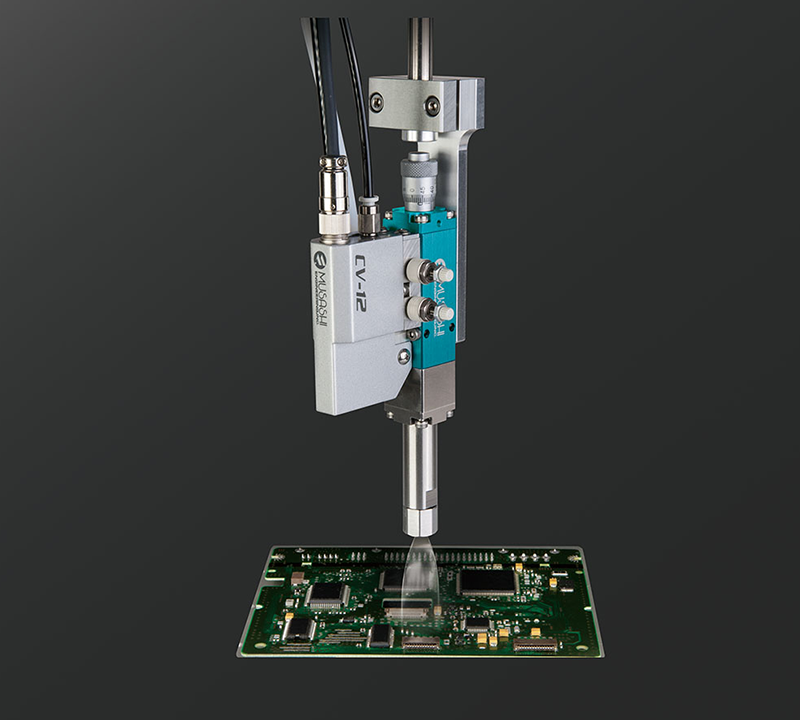

Coating valve Musashi CV-12
Coating valve
Achieves sharp-edged dispensing without scattering
Achieves sharp-edged dispensing without scattering
- Valve controller ME-5000VT
- CV-12
- Precision application shape enables partial coating.
- Low flow achieves wide area, ultra-thin coating.
- Shape adjustment available at start and stop points.
- Equipped with simplified explosion-proof specifications as standard
| Model | CV-12 |
|---|---|
| Driving system | Pneumatic driven system |
| Compatible viscosity | 1 to 100 mPa·s |
| Control air supply pressure range | 0.35 to 0.5 MPa |
| Fluid material supply pressure range | Max. 0.5 Mpa |
| Fluid intake port | Rc1/8 (fluid feed joint ordered separately) |
| Fluid dispensing port | Dedicated nozzle |
| Control air | One-touch joint for φ6 outer diameter tube |
| Purge air | One-touch joint for φ4 outer diameter tube |
| Wetted part material | Stainless steel, fluorine resin, polyacetal, cemented carbide |
| Weight | 360 g |
