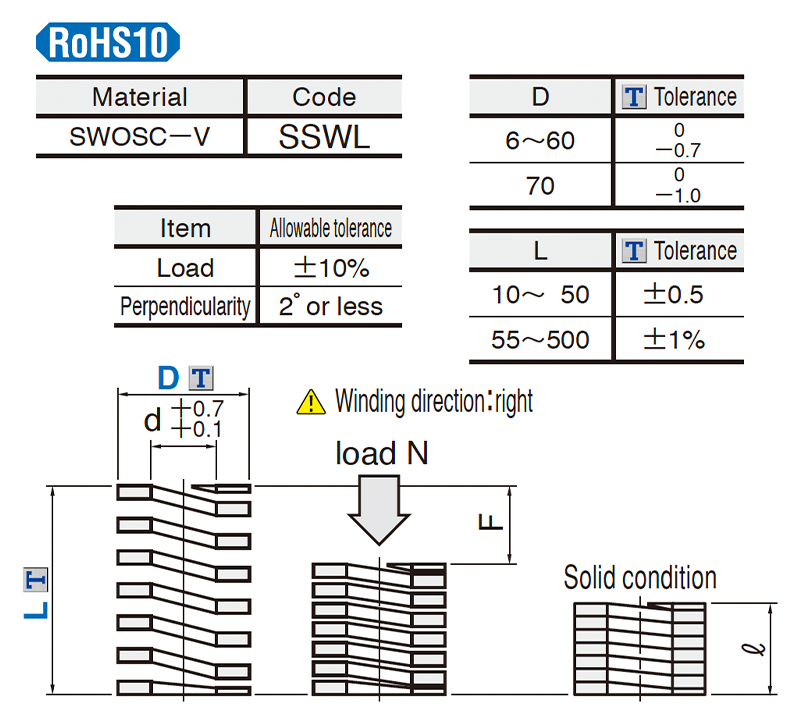

Mold Parts
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×32% | F＝L×36% | F＝L×40% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWL | 6 | ||||||||||||
| 15 | 3 | 13.1 | {1.34} | 8.6 | 4.8 | 62.8{6.4} | 5.4 | 70.6{7.2} | 6.0 | 78.5{8.0} | 85 | ||
| 20 | 3 | 9.8 | {1.00} | 11.5 | 6.4 | 62.8{6.4} | 7.2 | 70.6{7.2} | 8.0 | 78.5{8.0} | 90 | ||
| 25 | 3 | 7.9 | {0.80} | 14.4 | 8.0 | 62.8{6.4} | 9.0 | 70.6{7.2} | 10.0 | 78.5{8.0} | 100 | ||
| 30 | 3 | 6.5 | {0.67} | 17.2 | 9.6 | 62.8{6.4} | 10.8 | 70.6{7.2} | 12.0 | 78.5{8.0} | 110 | ||
| 35 | 3 | 5.6 | {0.57} | 20.1 | 11.2 | 62.8{6.4} | 12.6 | 70.6{7.2} | 14.0 | 78.5{8.0} | 110 | ||
| 40 | 3 | 4.9 | {0.50} | 23.0 | 12.8 | 62.8{6.4} | 14.4 | 70.6{7.2} | 16.0 | 78.5{8.0} | 120 | ||
| SSWL | 8 | ||||||||||||
| 10 | 4 | 24.5 | {2.50} | 5.4 | 3.2 | 78.5{8.0} | 3.6 | 88.3{9.0} | 4.0 | 98.1{10.0} | 80 | ||
| 15 | 4 | 16.4 | {1.67} | 8.1 | 4.8 | 78.5{8.0} | 5.4 | 88.3{9.0} | 6.0 | 98.1{10.0} | 75 | ||
| 20 | 4 | 12.3 | {1.25} | 10.8 | 6.4 | 78.5{8.0} | 7.2 | 88.3{9.0} | 8.0 | 98.1{10.0} | 85 | ||
| 25 | 4 | 9.8 | {1.00} | 13.5 | 8.0 | 78.5{8.0} | 9.0 | 88.3{9.0} | 10.0 | 98.1{10.0} | 85 | ||
| 30 | 4 | 8.2 | {0.83} | 16.2 | 9.6 | 78.5{8.0} | 10.8 | 88.3{9.0} | 12.0 | 98.1{10.0} | 90 | ||
| 35 | 4 | 7.0 | {0.72} | 18.9 | 11.2 | 78.5{8.0} | 12.6 | 88.3{9.0} | 14.0 | 98.1{10.0} | 100 | ||
| 40 | 4 | 6.1 | {0.63} | 21.6 | 12.8 | 78.5{8.0} | 14.4 | 88.3{9.0} | 16.0 | 98.1{10.0} | 110 | ||
| 45 | 4 | 5.5 | {0.56} | 24.3 | 14.4 | 78.5{8.0} | 16.2 | 88.3{9.0} | 18.0 | 98.1{10.0} | 120 | ||
| 50 | 4 | 4.9 | {0.50} | 27.0 | 16.0 | 78.5{8.0} | 18.0 | 88.3{9.0} | 20.0 | 98.1{10.0} | 130 | ||
| 55 | 4 | 4.5 | {0.46} | 29.7 | 17.6 | 78.5{8.0} | 19.8 | 88.3{9.0} | 22.0 | 98.1{10.0} | 140 | ||
| 60 | 4 | 4.1 | {0.42} | 32.4 | 19.2 | 78.5{8.0} | 21.6 | 88.3{9.0} | 24.0 | 98.1{10.0} | 145 | ||
| 65 | 4 | 3.8 | {0.39} | 37.3 | 20.8 | 78.5{8.0} | 23.4 | 88.3{9.0} | 26.0 | 98.1{10.0} | 155 | ||
| 70 | 4 | 3.5 | {0.36} | 40.2 | 22.4 | 78.5{8.0} | 25.2 | 88.3{9.0} | 28.0 | 98.1{10.0} | 165 | ||
| 75 | 4 | 3.3 | {0.33} | 43.1 | 24.0 | 78.5{8.0} | 27.0 | 88.3{9.0} | 30.0 | 98.1{10.0} | 175 | ||
| 80 | 4 | 3.1 | {0.31} | 45.9 | 25.6 | 78.5{8.0} | 28.8 | 88.3{9.0} | 32.0 | 98.1{10.0} | 185 | ||
| SSWL | 10 | ||||||||||||
| 10 | 5 | 34.3 | {3.50} | 5.4 | 3.2 | 109.8{11.2} | 3.6 | 123.6{12.6} | 4.0 | 137.3{14.0} | 85 | ||
| 15 | 5 | 22.9 | {2.34} | 8.1 | 4.8 | 109.8{11.2} | 5.4 | 123.6{12.6} | 6.0 | 137.3{14.0} | 80 | ||
| 20 | 5 | 17.2 | {1.75} | 10.8 | 6.4 | 109.8{11.2} | 7.2 | 123.6{12.6} | 8.0 | 137.3{14.0} | 80 | ||
| 25 | 5 | 13.7 | {1.40} | 13.5 | 8.0 | 109.8{11.2} | 9.0 | 123.6{12.6} | 10.0 | 137.3{14.0} | 85 | ||
| 30 | 5 | 11.4 | {1.17} | 16.2 | 9.6 | 109.8{11.2} | 10.8 | 123.6{12.6} | 12.0 | 137.3{14.0} | 85 | ||
| 35 | 5 | 9.8 | {1.00} | 18.9 | 11.2 | 109.8{11.2} | 12.6 | 123.6{12.6} | 14.0 | 137.3{14.0} | 85 | ||
| 40 | 5 | 8.6 | {0.88} | 21.6 | 12.8 | 109.8{11.2} | 14.4 | 123.6{12.6} | 16.0 | 137.3{14.0} | 90 | ||
| 45 | 5 | 7.6 | {0.78} | 24.3 | 14.4 | 109.8{11.2} | 16.2 | 123.6{12.6} | 18.0 | 137.3{14.0} | 100 | ||
| 50 | 5 | 6.9 | {0.70} | 27.0 | 16.0 | 109.8{11.2} | 18.0 | 123.6{12.6} | 20.0 | 137.3{14.0} | 110 | ||
| 55 | 5 | 6.2 | {0.64} | 29.7 | 17.6 | 109.8{11.2} | 19.8 | 123.6{12.6} | 22.0 | 137.3{14.0} | 120 | ||
| 60 | 5 | 5.7 | {0.58} | 32.4 | 19.2 | 109.8{11.2} | 21.6 | 123.6{12.6} | 24.0 | 137.3{14.0} | 130 | ||
| 65 | 5 | 5.3 | {0.54} | 35.1 | 20.8 | 109.8{11.2} | 23.4 | 123.6{12.6} | 26.0 | 137.3{14.0} | 140 | ||
| 70 | 5 | 4.9 | {0.50} | 37.8 | 22.4 | 109.8{11.2} | 25.2 | 123.6{12.6} | 28.0 | 137.3{14.0} | 140 | ||
| 75 | 5 | 4.6 | {0.47} | 40.5 | 24.0 | 109.8{11.2} | 27.0 | 123.6{12.6} | 30.0 | 137.3{14.0} | 155 | ||
| 80 | 5 | 4.3 | {0.44} | 43.2 | 25.6 | 109.8{11.2} | 28.8 | 123.6{12.6} | 32.0 | 137.3{14.0} | 170 | ||
| 90 | 5 | 3.8 | {0.39} | 48.6 | 28.8 | 109.8{11.2} | 32.4 | 123.6{12.6} | 36.0 | 137.3{14.0} | 190 | ||
| SSWL | 12 | ||||||||||||
| 15 | 6 | 34.7 | {3.54} | 8.1 | 4.8 | 164.8{16.8} | 5.4 | 185.3{18.9} | 6.0 | 205.9{21.0} | 90 | ||
| 20 | 6 | 26.1 | {2.66} | 10.8 | 6.4 | 164.8{16.8} | 7.2 | 185.3{18.9} | 8.0 | 205.9{21.0} | 90 | ||
| 25 | 6 | 20.8 | {2.13} | 13.5 | 8.0 | 164.8{16.8} | 9.0 | 185.3{18.9} | 10.0 | 205.9{21.0} | 100 | ||
| 30 | 6 | 17.4 | {1.77} | 16.2 | 9.6 | 164.8{16.8} | 10.8 | 185.3{18.9} | 12.0 | 205.9{21.0} | 110 | ||
| 35 | 6 | 14.9 | {1.52} | 18.9 | 11.2 | 164.8{16.8} | 12.6 | 185.3{18.9} | 14.0 | 205.9{21.0} | 110 | ||
| 40 | 6 | 13.0 | {1.33} | 21.6 | 12.8 | 164.8{16.8} | 14.4 | 185.3{18.9} | 16.0 | 205.9{21.0} | 120 | ||
| 45 | 6 | 11.6 | {1.18} | 24.3 | 14.4 | 164.8{16.8} | 16.2 | 185.3{18.9} | 18.0 | 205.9{21.0} | 130 | ||
| 50 | 6 | 10.4 | {1.06} | 27.0 | 16.0 | 164.8{16.8} | 18.0 | 185.3{18.9} | 20.0 | 205.9{21.0} | 140 | ||
| 55 | 6 | 9.5 | {0.97} | 29.7 | 17.6 | 164.8{16.8} | 19.8 | 185.3{18.9} | 22.0 | 205.9{21.0} | 145 | ||
| 60 | 6 | 8.7 | {0.89} | 32.4 | 19.2 | 164.8{16.8} | 21.6 | 185.3{18.9} | 24.0 | 205.9{21.0} | 155 | ||
| 65 | 6 | 8.0 | {0.82} | 35.1 | 20.8 | 164.8{16.8} | 23.4 | 185.3{18.9} | 26.0 | 205.9{21.0} | 160 | ||
| 70 | 6 | 7.4 | {0.76} | 37.8 | 22.4 | 164.8{16.8} | 25.2 | 185.3{18.9} | 28.0 | 205.9{21.0} | 170 | ||
| 75 | 6 | 6.9 | {0.71} | 40.5 | 24.0 | 164.8{16.8} | 27.0 | 185.3{18.9} | 30.0 | 205.9{21.0} | 180 | ||
| 80 | 6 | 6.5 | {0.66} | 43.2 | 25.6 | 164.8{16.8} | 28.8 | 185.3{18.9} | 32.0 | 205.9{21.0} | 195 | ||
| 90 | 6 | 5.8 | {0.59} | 48.6 | 28.8 | 164.8{16.8} | 32.4 | 185.3{18.9} | 36.0 | 205.9{21.0} | 215 | ||
| SSWL | 14 | ||||||||||||
| 20 | 7 | 34.3 | {3.50} | 10.8 | 6.4 | 219.7{22.4} | 7.2 | 247.1{25.2} | 8.0 | 274.6{28.0} | 130 | ||
| 25 | 7 | 27.5 | {2.80} | 13.5 | 8.0 | 219.7{22.4} | 9.0 | 247.1{25.2} | 10.0 | 274.6{28.0} | 130 | ||
| 30 | 7 | 22.9 | {2.34} | 16.2 | 9.6 | 219.7{22.4} | 10.8 | 247.1{25.2} | 12.0 | 274.6{28.0} | 140 | ||
| 35 | 7 | 19.6 | {2.00} | 18.9 | 11.2 | 219.7{22.4} | 12.6 | 247.1{25.2} | 14.0 | 274.6{28.0} | 145 | ||
| 40 | 7 | 17.2 | {1.75} | 21.6 | 12.8 | 219.7{22.4} | 14.4 | 247.1{25.2} | 16.0 | 274.6{28.0} | 155 | ||
| 45 | 7 | 15.3 | {1.56} | 24.3 | 14.4 | 219.7{22.4} | 16.2 | 247.1{25.2} | 18.0 | 274.6{28.0} | 160 | ||
| 50 | 7 | 13.7 | {1.40} | 27.0 | 16.0 | 219.7{22.4} | 18.0 | 247.1{25.2} | 20.0 | 274.6{28.0} | 170 | ||
| 55 | 7 | 12.5 | {1.27} | 29.7 | 17.6 | 219.7{22.4} | 19.8 | 247.1{25.2} | 22.0 | 274.6{28.0} | 180 | ||
| 60 | 7 | 11.5 | {1.17} | 32.4 | 19.2 | 219.7{22.4} | 21.6 | 247.1{25.2} | 24.0 | 274.6{28.0} | 185 | ||
| 65 | 7 | 10.6 | {1.08} | 35.1 | 20.8 | 219.7{22.4} | 23.4 | 247.1{25.2} | 26.0 | 274.6{28.0} | 195 | ||
| 70 | 7 | 9.8 | {1.00} | 37.8 | 22.4 | 219.7{22.4} | 25.2 | 247.1{25.2} | 28.0 | 274.6{28.0} | 195 | ||
| 75 | 7 | 9.2 | {0.93} | 40.5 | 24.0 | 219.7{22.4} | 27.0 | 247.1{25.2} | 30.0 | 274.6{28.0} | 205 | ||
| 80 | 7 | 8.6 | {0.88} | 43.2 | 25.6 | 219.7{22.4} | 28.8 | 247.1{25.2} | 32.0 | 274.6{28.0} | 215 | ||
| 90 | 7 | 7.6 | {0.78} | 48.6 | 28.8 | 219.7{22.4} | 32.4 | 247.1{25.2} | 36.0 | 274.6{28.0} | 235 | ||
| 100 | 7 | 6.9 | {0.70} | 54.0 | 32.0 | 219.7{22.4} | 36.0 | 247.1{25.2} | 40.0 | 274.6{28.0} | 250 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×32% | F＝L×36% | F＝L×40% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWL | 16 | ||||||||||||
| 20 | 8 | 42.9 | {4.38} | 10.8 | 6.4 | 274.6{28.0} | 7.2 | 308.9{31.5} | 8.0 | 343.2{35.0} | 140 | ||
| 25 | 8 | 34.3 | {3.50} | 13.5 | 8.0 | 274.6{28.0} | 9.0 | 308.9{31.5} | 10.0 | 343.2{35.0} | 140 | ||
| 30 | 8 | 28.6 | {2.92} | 16.2 | 9.6 | 274.6{28.0} | 10.8 | 308.9{31.5} | 12.0 | 343.2{35.0} | 145 | ||
| 35 | 8 | 24.5 | {2.50} | 18.9 | 11.2 | 274.6{28.0} | 12.6 | 308.9{31.5} | 14.0 | 343.2{35.0} | 155 | ||
| 40 | 8 | 21.5 | {2.19} | 21.6 | 12.8 | 274.6{28.0} | 14.4 | 308.9{31.5} | 16.0 | 343.2{35.0} | 160 | ||
| 45 | 8 | 19.1 | {1.95} | 24.3 | 14.4 | 274.6{28.0} | 16.2 | 308.9{31.5} | 18.0 | 343.2{35.0} | 170 | ||
| 50 | 8 | 17.2 | {1.75} | 27.0 | 16.0 | 274.6{28.0} | 18.0 | 308.9{31.5} | 20.0 | 343.2{35.0} | 180 | ||
| 55 | 8 | 15.6 | {1.59} | 29.7 | 17.6 | 274.6{28.0} | 19.8 | 308.9{31.5} | 22.0 | 343.2{35.0} | 195 | ||
| 60 | 8 | 14.3 | {1.46} | 32.4 | 19.2 | 274.6{28.0} | 21.6 | 308.9{31.5} | 24.0 | 343.2{35.0} | 205 | ||
| 65 | 8 | 13.2 | {1.35} | 35.1 | 20.8 | 274.6{28.0} | 23.4 | 308.9{31.5} | 26.0 | 343.2{35.0} | 215 | ||
| 70 | 8 | 12.3 | {1.25} | 37.8 | 22.4 | 274.6{28.0} | 25.2 | 308.9{31.5} | 28.0 | 343.2{35.0} | 225 | ||
| 75 | 8 | 11.4 | {1.17} | 40.5 | 24.0 | 274.6{28.0} | 27.0 | 308.9{31.5} | 30.0 | 343.2{35.0} | 235 | ||
| 80 | 8 | 10.7 | {1.09} | 43.2 | 25.6 | 274.6{28.0} | 28.8 | 308.9{31.5} | 32.0 | 343.2{35.0} | 250 | ||
| 90 | 8 | 9.5 | {0.97} | 48.6 | 28.8 | 274.6{28.0} | 32.4 | 308.9{31.5} | 36.0 | 343.2{35.0} | 270 | ||
| 100 | 8 | 8.6 | {0.88} | 54.0 | 32.0 | 274.6{28.0} | 36.0 | 308.9{31.5} | 40.0 | 343.2{35.0} | 295 | ||
| 125 | 8 | 6.9 | {0.70} | 67.5 | 40.0 | 274.6{28.0} | 45.0 | 308.9{31.5} | 50.0 | 343.2{35.0} | 325 | ||
| SSWL | 18 | ||||||||||||
| 20 | 9 | 52.7 | {5.38} | 10.8 | 6.4 | 337.3{34.4} | 7.2 | 379.5{38.7} | 8.0 | 421.7{43.0} | 140 | ||
| 25 | 9 | 42.2 | {4.30} | 13.5 | 8.0 | 337.3{34.4} | 9.0 | 379.5{38.7} | 10.0 | 421.7{43.0} | 140 | ||
| 30 | 9 | 35.1 | {3.58} | 16.2 | 9.6 | 337.3{34.4} | 10.8 | 379.5{38.7} | 12.0 | 421.7{43.0} | 145 | ||
| 35 | 9 | 30.1 | {3.07} | 18.9 | 11.2 | 337.3{34.4} | 12.6 | 379.5{38.7} | 14.0 | 421.7{43.0} | 155 | ||
| 40 | 9 | 26.3 | {2.69} | 21.6 | 12.8 | 337.3{34.4} | 14.4 | 379.5{38.7} | 16.0 | 421.7{43.0} | 160 | ||
| 45 | 9 | 23.4 | {2.39} | 24.3 | 14.4 | 337.3{34.4} | 16.2 | 379.5{38.7} | 18.0 | 421.7{43.0} | 170 | ||
| 50 | 9 | 21.1 | {2.15} | 27.0 | 16.0 | 337.3{34.4} | 18.0 | 379.5{38.7} | 20.0 | 421.7{43.0} | 185 | ||
| 55 | 9 | 19.2 | {1.96} | 29.7 | 17.6 | 337.3{34.4} | 19.8 | 379.5{38.7} | 22.0 | 421.7{43.0} | 195 | ||
| 60 | 9 | 17.6 | {1.79} | 32.4 | 19.2 | 337.3{34.4} | 21.6 | 379.5{38.7} | 24.0 | 421.7{43.0} | 205 | ||
| 65 | 9 | 16.2 | {1.65} | 35.1 | 20.8 | 337.3{34.4} | 23.4 | 379.5{38.7} | 26.0 | 421.7{43.0} | 215 | ||
| 70 | 9 | 15.1 | {1.54} | 37.8 | 22.4 | 337.3{34.4} | 25.2 | 379.5{38.7} | 28.0 | 421.7{43.0} | 225 | ||
| 75 | 9 | 14.1 | {1.43} | 40.5 | 24.0 | 337.3{34.4} | 27.0 | 379.5{38.7} | 30.0 | 421.7{43.0} | 235 | ||
| 80 | 9 | 13.2 | {1.34} | 43.2 | 25.6 | 337.3{34.4} | 28.8 | 379.5{38.7} | 32.0 | 421.7{43.0} | 250 | ||
| 90 | 9 | 11.7 | {1.19} | 48.6 | 28.8 | 337.3{34.4} | 32.4 | 379.5{38.7} | 36.0 | 421.7{43.0} | 275 | ||
| 100 | 9 | 10.5 | {1.08} | 54.0 | 32.0 | 337.3{34.4} | 36.0 | 379.5{38.7} | 40.0 | 421.7{43.0} | 305 | ||
| 125 | 9 | 8.4 | {0.86} | 67.5 | 40.0 | 337.3{34.4} | 45.0 | 379.5{38.7} | 50.0 | 421.7{43.0} | 335 | ||
| SSWL | 20 | ||||||||||||
| 20 | 10 | 65.9 | {6.73} | 10.8 | 6.4 | 423.6{43.2} | 7.2 | 476.6{48.6} | 8.0 | 529.6{54.0} | 145 | ||
| 25 | 10 | 53.0 | {5.40} | 13.5 | 8.0 | 423.6{43.2} | 9.0 | 476.6{48.6} | 10.0 | 529.6{54.0} | 145 | ||
| 30 | 10 | 44.1 | {4.50} | 16.2 | 9.6 | 423.6{43.2} | 10.8 | 476.6{48.6} | 12.0 | 529.6{54.0} | 155 | ||
| 35 | 10 | 37.8 | {3.86} | 18.9 | 11.2 | 423.6{43.2} | 12.6 | 476.6{48.6} | 14.0 | 529.6{54.0} | 160 | ||
| 40 | 10 | 33.1 | {3.38} | 21.6 | 12.8 | 423.6{43.2} | 14.4 | 476.6{48.6} | 16.0 | 529.6{54.0} | 170 | ||
| 45 | 10 | 29.4 | {3.00} | 24.3 | 14.4 | 423.6{43.2} | 16.2 | 476.6{48.6} | 18.0 | 529.6{54.0} | 185 | ||
| 50 | 10 | 26.5 | {2.70} | 27.0 | 16.0 | 423.6{43.2} | 18.0 | 476.6{48.6} | 20.0 | 529.6{54.0} | 195 | ||
| 55 | 10 | 24.1 | {2.46} | 29.7 | 17.6 | 423.6{43.2} | 19.8 | 476.6{48.6} | 22.0 | 529.6{54.0} | 205 | ||
| 60 | 10 | 22.1 | {2.25} | 32.4 | 19.2 | 423.6{43.2} | 21.6 | 476.6{48.6} | 24.0 | 529.6{54.0} | 215 | ||
| 65 | 10 | 20.4 | {2.08} | 35.1 | 20.8 | 423.6{43.2} | 23.4 | 476.6{48.6} | 26.0 | 529.6{54.0} | 225 | ||
| 70 | 10 | 18.9 | {1.93} | 37.8 | 22.4 | 423.6{43.2} | 25.2 | 476.6{48.6} | 28.0 | 529.6{54.0} | 235 | ||
| 75 | 10 | 17.6 | {1.80} | 40.5 | 24.0 | 423.6{43.2} | 27.0 | 476.6{48.6} | 30.0 | 529.6{54.0} | 240 | ||
| 80 | 10 | 16.5 | {1.69} | 43.2 | 25.6 | 423.6{43.2} | 28.8 | 476.6{48.6} | 32.0 | 529.6{54.0} | 250 | ||
| 90 | 10 | 14.7 | {1.50} | 48.6 | 28.8 | 423.6{43.2} | 32.4 | 476.6{48.6} | 36.0 | 529.6{54.0} | 275 | ||
| 100 | 10 | 13.2 | {1.35} | 54.0 | 32.0 | 423.6{43.2} | 36.0 | 476.6{48.6} | 40.0 | 529.6{54.0} | 295 | ||
| 125 | 10 | 10.6 | {1.08} | 67.5 | 40.0 | 423.6{43.2} | 45.0 | 476.6{48.6} | 50.0 | 529.6{54.0} | 325 | ||
| 150 | 10 | 8.8 | {0.90} | 81.0 | 48.0 | 423.6{43.2} | 54.0 | 476.6{48.6} | 60.0 | 529.6{54.0} | 340 | ||
| SSWL | 22 | ||||||||||||
| 25 | 11 | 65.7 | {6.70} | 13.5 | 8.0 | 525.6{53.6} | 9.0 | 591.3{60.3} | 10.0 | 657.0{67.0} | 145 | ||
| 30 | 11 | 54.9 | {5.60} | 16.2 | 9.6 | 525.6{53.6} | 10.8 | 591.3{60.3} | 12.0 | 657.0{67.0} | 155 | ||
| 35 | 11 | 47.1 | {4.80} | 18.9 | 11.2 | 525.6{53.6} | 12.6 | 591.3{60.3} | 14.0 | 657.0{67.0} | 160 | ||
| 40 | 11 | 41.2 | {4.20} | 21.6 | 12.8 | 525.6{53.6} | 14.4 | 591.3{60.3} | 16.0 | 657.0{67.0} | 180 | ||
| 45 | 11 | 36.6 | {3.73} | 24.3 | 14.4 | 525.6{53.6} | 16.2 | 591.3{60.3} | 18.0 | 657.0{67.0} | 185 | ||
| 50 | 11 | 32.9 | {3.36} | 27.0 | 16.0 | 525.6{53.6} | 18.0 | 591.3{60.3} | 20.0 | 657.0{67.0} | 195 | ||
| 55 | 11 | 29.9 | {3.06} | 29.7 | 17.6 | 525.6{53.6} | 19.8 | 591.3{60.3} | 22.0 | 657.0{67.0} | 205 | ||
| 60 | 11 | 27.4 | {2.80} | 32.4 | 19.2 | 525.6{53.6} | 21.6 | 591.3{60.3} | 24.0 | 657.0{67.0} | 215 | ||
| 65 | 11 | 25.3 | {2.59} | 35.1 | 20.8 | 525.6{53.6} | 23.4 | 591.3{60.3} | 26.0 | 657.0{67.0} | 235 | ||
| 70 | 11 | 23.5 | {2.40} | 37.8 | 22.4 | 525.6{53.6} | 25.2 | 591.3{60.3} | 28.0 | 657.0{67.0} | 235 | ||
| 75 | 11 | 22.0 | {2.24} | 40.5 | 24.0 | 525.6{53.6} | 27.0 | 591.3{60.3} | 30.0 | 657.0{67.0} | 250 | ||
| 80 | 11 | 20.6 | {2.10} | 43.2 | 25.6 | 525.6{53.6} | 28.8 | 591.3{60.3} | 32.0 | 657.0{67.0} | 260 | ||
| 90 | 11 | 18.3 | {1.87} | 48.6 | 28.8 | 525.6{53.6} | 32.4 | 591.3{60.3} | 36.0 | 657.0{67.0} | 275 | ||
| 100 | 11 | 16.5 | {1.68} | 54.0 | 32.0 | 525.6{53.6} | 36.0 | 591.3{60.3} | 40.0 | 657.0{67.0} | 305 | ||
| 125 | 11 | 13.2 | {1.34} | 67.5 | 40.0 | 525.6{53.6} | 45.0 | 591.3{60.3} | 50.0 | 657.0{67.0} | 335 | ||
| 150 | 11 | 11.0 | {1.12} | 81.0 | 48.0 | 525.6{53.6} | 54.0 | 591.3{60.3} | 60.0 | 657.0{67.0} | 385 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×32% | F＝L×36% | F＝L×40% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWL | 25 | ||||||||||||
| 25 | 12.5 | 82.4 | {8.40} | 13.5 | 8.0 | 659.0{67.2} | 9.0 | 741.4{75.6} | 10.0 | 823.8{84.0} | 155 | ||
| 30 | 12.5 | 68.6 | {7.00} | 16.2 | 9.6 | 659.0{67.2} | 10.8 | 741.4{75.6} | 12.0 | 823.8{84.0} | 160 | ||
| 35 | 12.5 | 58.8 | {6.00} | 18.9 | 11.2 | 659.0{67.2} | 12.6 | 741.4{75.6} | 14.0 | 823.8{84.0} | 170 | ||
| 40 | 12.5 | 51.5 | {5.25} | 21.6 | 12.8 | 659.0{67.2} | 14.4 | 741.4{75.6} | 16.0 | 823.8{84.0} | 180 | ||
| 45 | 12.5 | 45.8 | {4.67} | 24.3 | 14.4 | 659.0{67.2} | 16.2 | 741.4{75.6} | 18.0 | 823.8{84.0} | 195 | ||
| 50 | 12.5 | 41.2 | {4.20} | 27.0 | 16.0 | 659.0{67.2} | 18.0 | 741.4{75.6} | 20.0 | 823.8{84.0} | 195 | ||
| 55 | 12.5 | 37.4 | {3.82} | 29.7 | 17.6 | 659.0{67.2} | 19.8 | 741.4{75.6} | 22.0 | 823.8{84.0} | 215 | ||
| 60 | 12.5 | 34.3 | {3.50} | 32.4 | 19.2 | 659.0{67.2} | 21.6 | 741.4{75.6} | 24.0 | 823.8{84.0} | 225 | ||
| 65 | 12.5 | 31.7 | {3.23} | 35.1 | 20.8 | 659.0{67.2} | 23.4 | 741.4{75.6} | 26.0 | 823.8{84.0} | 235 | ||
| 70 | 12.5 | 29.4 | {3.00} | 37.8 | 22.4 | 659.0{67.2} | 25.2 | 741.4{75.6} | 28.0 | 823.8{84.0} | 240 | ||
| 75 | 12.5 | 27.4 | {2.80} | 40.5 | 24.0 | 659.0{67.2} | 27.0 | 741.4{75.6} | 30.0 | 823.8{84.0} | 250 | ||
| 80 | 12.5 | 25.7 | {2.63} | 43.2 | 25.6 | 659.0{67.2} | 28.8 | 741.4{75.6} | 32.0 | 823.8{84.0} | 260 | ||
| 90 | 12.5 | 22.9 | {2.33} | 48.6 | 28.8 | 659.0{67.2} | 32.4 | 741.4{75.6} | 36.0 | 823.8{84.0} | 285 | ||
| 100 | 12.5 | 20.6 | {2.10} | 54.0 | 32.0 | 659.0{67.2} | 36.0 | 741.4{75.6} | 40.0 | 823.8{84.0} | 315 | ||
| 125 | 12.5 | 16.5 | {1.68} | 67.5 | 40.0 | 659.0{67.2} | 45.0 | 741.4{75.6} | 50.0 | 823.8{84.0} | 350 | ||
| 150 | 12.5 | 13.7 | {1.40} | 81.0 | 48.0 | 659.0{67.2} | 54.0 | 741.4{75.6} | 60.0 | 823.8{84.0} | 395 | ||
| 175 | 12.5 | 11.8 | {1.20} | 94.5 | 56.0 | 659.0{67.2} | 63.0 | 741.4{75.6} | 70.0 | 823.8{84.0} | 430 | ||
| 200 | 12.5 | 10.3 | {1.05} | 108.0 | 64.0 | 659.0{67.2} | 72.0 | 741.4{75.6} | 80.0 | 823.8{84.0} | 465 | ||
| SSWL | 27 | ||||||||||||
| 25 | 13.5 | 98.1 | {10.01} | 13.5 | 8.0 | 784.5{80.0} | 9.0 | 882.6{90.0} | 10.0 | 980.7{100} | 155 | ||
| 30 | 13.5 | 81.7 | {8.33} | 16.2 | 9.6 | 784.5{80.0} | 10.8 | 882.6{90.0} | 12.0 | 980.7{100} | 160 | ||
| 35 | 13.5 | 70.0 | {7.14} | 18.9 | 11.2 | 784.5{80.0} | 12.6 | 882.6{90.0} | 14.0 | 980.7{100} | 180 | ||
| 40 | 13.5 | 61.3 | {6.25} | 21.6 | 12.8 | 784.5{80.0} | 14.4 | 882.6{90.0} | 16.0 | 980.7{100} | 185 | ||
| 45 | 13.5 | 54.5 | {5.56} | 24.3 | 14.4 | 784.5{80.0} | 16.2 | 882.6{90.0} | 18.0 | 980.7{100} | 195 | ||
| 50 | 13.5 | 49.0 | {5.00} | 27.0 | 16.0 | 784.5{80.0} | 18.0 | 882.6{90.0} | 20.0 | 980.7{100} | 215 | ||
| 55 | 13.5 | 44.6 | {4.55} | 29.7 | 17.6 | 784.5{80.0} | 19.8 | 882.6{90.0} | 22.0 | 980.7{100} | 225 | ||
| 60 | 13.5 | 40.8 | {4.17} | 32.4 | 19.2 | 784.5{80.0} | 21.6 | 882.6{90.0} | 24.0 | 980.7{100} | 235 | ||
| 65 | 13.5 | 37.7 | {3.85} | 35.1 | 20.8 | 784.5{80.0} | 23.4 | 882.6{90.0} | 26.0 | 980.7{100} | 250 | ||
| 70 | 13.5 | 35.0 | {3.57} | 37.8 | 22.4 | 784.5{80.0} | 25.2 | 882.6{90.0} | 28.0 | 980.7{100} | 260 | ||
| 75 | 13.5 | 32.7 | {3.33} | 40.5 | 24.0 | 784.5{80.0} | 27.0 | 882.6{90.0} | 30.0 | 980.7{100} | 275 | ||
| 80 | 13.5 | 30.6 | {3.13} | 43.2 | 25.6 | 784.5{80.0} | 28.8 | 882.6{90.0} | 32.0 | 980.7{100} | 275 | ||
| 90 | 13.5 | 27.2 | {2.78} | 48.6 | 28.8 | 784.5{80.0} | 32.4 | 882.6{90.0} | 36.0 | 980.7{100} | 305 | ||
| 100 | 13.5 | 24.5 | {2.50} | 54.0 | 32.0 | 784.5{80.0} | 36.0 | 882.6{90.0} | 40.0 | 980.7{100} | 335 | ||
| 125 | 13.5 | 19.6 | {2.00} | 67.5 | 40.0 | 784.5{80.0} | 45.0 | 882.6{90.0} | 50.0 | 980.7{100} | 375 | ||
| 150 | 13.5 | 16.3 | {1.67} | 81.0 | 48.0 | 784.5{80.0} | 54.0 | 882.6{90.0} | 60.0 | 980.7{100} | 430 | ||
| 175 | 13.5 | 14.0 | {1.43} | 94.5 | 56.0 | 784.5{80.0} | 63.0 | 882.6{90.0} | 70.0 | 980.7{100} | 485 | ||
| 200 | 13.5 | 12.3 | {1.25} | 108.0 | 64.0 | 784.5{80.0} | 72.0 | 882.6{90.0} | 80.0 | 980.7{100} | 530 | ||
| SSWL | 30 | ||||||||||||
| 25 | 15 | 118.9 | {12.13} | 13.5 | 8.0 | 949{97} | 9.0 | 1069{109} | 10.0 | 1187{121} | 155 | ||
| 30 | 15 | 99.1 | {10.11} | 16.2 | 9.6 | 949{97} | 10.8 | 1069{109} | 12.0 | 1187{121} | 170 | ||
| 35 | 15 | 84.9 | {8.66} | 18.9 | 11.2 | 949{97} | 12.6 | 1069{109} | 14.0 | 1187{121} | 185 | ||
| 40 | 15 | 74.3 | {7.58} | 21.6 | 12.8 | 949{97} | 14.4 | 1069{109} | 16.0 | 1187{121} | 195 | ||
| 45 | 15 | 66.0 | {6.74} | 24.3 | 14.4 | 949{97} | 16.2 | 1069{109} | 18.0 | 1187{121} | 215 | ||
| 50 | 15 | 59.4 | {6.07} | 27.0 | 16.0 | 949{97} | 18.0 | 1069{109} | 20.0 | 1187{121} | 225 | ||
| 55 | 15 | 54.0 | {5.51} | 29.7 | 17.6 | 949{97} | 19.8 | 1069{109} | 22.0 | 1187{121} | 240 | ||
| 60 | 15 | 49.5 | {5.05} | 32.4 | 19.2 | 949{97} | 21.6 | 1069{109} | 24.0 | 1187{121} | 250 | ||
| 65 | 15 | 45.7 | {4.67} | 35.1 | 20.8 | 949{97} | 23.4 | 1069{109} | 26.0 | 1187{121} | 270 | ||
| 70 | 15 | 42.5 | {4.33} | 37.8 | 22.4 | 949{97} | 25.2 | 1069{109} | 28.0 | 1187{121} | 275 | ||
| 75 | 15 | 39.6 | {4.04} | 40.5 | 24.0 | 949{97} | 27.0 | 1069{109} | 30.0 | 1187{121} | 295 | ||
| 80 | 15 | 37.1 | {3.79} | 43.2 | 25.6 | 949{97} | 28.8 | 1069{109} | 32.0 | 1187{121} | 315 | ||
| 90 | 15 | 33.0 | {3.37} | 48.6 | 28.8 | 949{97} | 32.4 | 1069{109} | 36.0 | 1187{121} | 335 | ||
| 100 | 15 | 29.7 | {3.03} | 54.0 | 32.0 | 949{97} | 36.0 | 1069{109} | 40.0 | 1187{121} | 360 | ||
| 125 | 15 | 23.8 | {2.43} | 67.5 | 40.0 | 949{97} | 45.0 | 1069{109} | 50.0 | 1187{121} | 430 | ||
| 150 | 15 | 19.8 | {2.02} | 81.0 | 48.0 | 949{97} | 54.0 | 1069{109} | 60.0 | 1187{121} | 505 | ||
| 175 | 15 | 17.0 | {1.73} | 94.5 | 56.0 | 949{97} | 63.0 | 1069{109} | 70.0 | 1187{121} | 585 | ||
| 200 | 15 | 14.9 | {1.52} | 108.0 | 64.0 | 949{97} | 72.0 | 1069{109} | 80.0 | 1187{121} | 665 | ||
| SSWL | 35 | ||||||||||||
| 40 | 17.5 | 101.1 | {10.32} | 21.6 | 12.8 | 1294{132} | 14.4 | 1461{149} | 16.0 | 1618{165} | 235 | ||
| 45 | 17.5 | 89.9 | {9.17} | 24.3 | 14.4 | 1294{132} | 16.2 | 1461{149} | 18.0 | 1618{165} | 250 | ||
| 50 | 17.5 | 80.9 | {8.26} | 27.0 | 16.0 | 1294{132} | 18.0 | 1461{149} | 20.0 | 1618{165} | 275 | ||
| 55 | 17.5 | 73.6 | {7.51} | 29.7 | 17.6 | 1294{132} | 19.8 | 1461{149} | 22.0 | 1618{165} | 295 | ||
| 60 | 17.5 | 67.4 | {6.88} | 32.4 | 19.2 | 1294{132} | 21.6 | 1461{149} | 24.0 | 1618{165} | 315 | ||
| 65 | 17.5 | 62.2 | {6.35} | 35.1 | 20.8 | 1294{132} | 23.4 | 1461{149} | 26.0 | 1618{165} | 335 | ||
| 70 | 17.5 | 57.8 | {5.90} | 37.8 | 22.4 | 1294{132} | 25.2 | 1461{149} | 28.0 | 1618{165} | 350 | ||
| 75 | 17.5 | 53.9 | {5.50} | 40.5 | 24.0 | 1294{132} | 27.0 | 1461{149} | 30.0 | 1618{165} | 365 | ||
| 80 | 17.5 | 50.6 | {5.16} | 43.2 | 25.6 | 1294{132} | 28.8 | 1461{149} | 32.0 | 1618{165} | 385 | ||
| 90 | 17.5 | 44.9 | {4.59} | 48.6 | 28.8 | 1294{132} | 32.4 | 1461{149} | 36.0 | 1618{165} | 430 | ||
| 100 | 17.5 | 40.5 | {4.13} | 54.0 | 32.0 | 1294{132} | 36.0 | 1461{149} | 40.0 | 1618{165} | 465 | ||
| 125 | 17.5 | 32.4 | {3.30} | 67.5 | 40.0 | 1294{132} | 45.0 | 1461{149} | 50.0 | 1618{165} | 565 | ||
| 150 | 17.5 | 27.0 | {2.75} | 81.0 | 48.0 | 1294{132} | 54.0 | 1461{149} | 60.0 | 1618{165} | 665 | ||
| 175 | 17.5 | 23.1 | {2.36} | 94.5 | 56.0 | 1294{132} | 63.0 | 1461{149} | 70.0 | 1618{165} | 765 | ||
| 200 | 17.5 | 20.2 | {2.06} | 108.0 | 64.0 | 1294{132} | 72.0 | 1461{149} | 80.0 | 1618{165} | 865 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×32% | F＝L×36% | F＝L×40% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWL | 40 | ||||||||||||
| 40 | 20 | 132.3 | {13.50} | 21.6 | 12.8 | 1697{173} | 14.4 | 1902{194} | 16.0 | 2118{216} | 315 | ||
| 45 | 20 | 117.8 | {12.02} | 24.3 | 14.4 | 1697{173} | 16.2 | 1902{194} | 18.0 | 2118{216} | 325 | ||
| 50 | 20 | 106.0 | {10.82} | 27.0 | 16.0 | 1697{173} | 18.0 | 1902{194} | 20.0 | 2118{216} | 335 | ||
| 55 | 20 | 96.4 | {9.83} | 29.7 | 17.6 | 1697{173} | 19.8 | 1902{194} | 22.0 | 2118{216} | 360 | ||
| 60 | 20 | 88.3 | {9.01} | 32.4 | 19.2 | 1697{173} | 21.6 | 1902{194} | 24.0 | 2118{216} | 385 | ||
| 65 | 20 | 81.5 | {8.32} | 35.1 | 20.8 | 1697{173} | 23.4 | 1902{194} | 26.0 | 2118{216} | 420 | ||
| 70 | 20 | 75.7 | {7.73} | 37.8 | 22.4 | 1697{173} | 25.2 | 1902{194} | 28.0 | 2118{216} | 440 | ||
| 75 | 20 | 70.7 | {7.21} | 40.5 | 24.0 | 1697{173} | 27.0 | 1902{194} | 30.0 | 2118{216} | 475 | ||
| 80 | 20 | 66.2 | {6.76} | 43.2 | 25.6 | 1697{173} | 28.8 | 1902{194} | 32.0 | 2118{216} | 505 | ||
| 90 | 20 | 58.9 | {6.01} | 48.6 | 28.8 | 1697{173} | 32.4 | 1902{194} | 36.0 | 2118{216} | 545 | ||
| 100 | 20 | 53.0 | {5.41} | 54.0 | 32.0 | 1697{173} | 36.0 | 1902{194} | 40.0 | 2118{216} | 605 | ||
| 125 | 20 | 42.4 | {4.33} | 67.5 | 40.0 | 1697{173} | 45.0 | 1902{194} | 50.0 | 2118{216} | 725 | ||
| 150 | 20 | 35.3 | {3.61} | 81.0 | 48.0 | 1697{173} | 54.0 | 1902{194} | 60.0 | 2118{216} | 845 | ||
| 175 | 20 | 30.3 | {3.09} | 94.5 | 56.0 | 1697{173} | 63.0 | 1902{194} | 70.0 | 2118{216} | 975 | ||
| 200 | 20 | 26.5 | {2.70} | 108.0 | 64.0 | 1697{173} | 72.0 | 1902{194} | 80.0 | 2118{216} | 1,100 | ||
| 225 | 20 | 23.6 | {2.40} | 121.5 | 72.0 | 1697{173} | 81.0 | 1902{194} | 90.0 | 2118{216} | 1,230 | ||
| 250 | 20 | 21.2 | {2.16} | 135.0 | 80.0 | 1697{173} | 90.0 | 1902{194} | 100.0 | 2118{216} | 1,330 | ||
| 275 | 20 | 19.3 | {1.97} | 149.0 | 88.0 | 1697{173} | 99.0 | 1902{194} | 110.0 | 2118{216} | 1,580 | ||
| 300 | 20 | 17.7 | {1.80} | 172.2 | 96.0 | 1697{173} | 108.0 | 1902{194} | 120.0 | 2118{216} | 1,810 | ||
| SSWL | 50 | ||||||||||||
| 50 | 25 | 165.6 | {16.90} | 27.0 | 16.0 | 2648{270} | 18.0 | 2981{304} | 20.0 | 3315{338} | 555 | ||
| 55 | 25 | 150.9 | {15.40} | 29.7 | 17.6 | 2648{270} | 19.8 | 2981{304} | 22.0 | 3315{338} | 580 | ||
| 60 | 25 | 138.3 | {14.12} | 32.4 | 19.2 | 2648{270} | 21.6 | 2981{304} | 24.0 | 3315{338} | 595 | ||
| 65 | 25 | 127.7 | {13.03} | 35.1 | 20.8 | 2648{270} | 23.4 | 2981{304} | 26.0 | 3315{338} | 635 | ||
| 70 | 25 | 118.6 | {12.10} | 37.8 | 22.4 | 2648{270} | 25.2 | 2981{304} | 28.0 | 3315{338} | 675 | ||
| 75 | 25 | 110.7 | {11.29} | 40.5 | 24.0 | 2648{270} | 27.0 | 2981{304} | 30.0 | 3315{338} | 715 | ||
| 80 | 25 | 103.8 | {10.59} | 43.2 | 25.6 | 2648{270} | 28.8 | 2981{304} | 32.0 | 3315{338} | 745 | ||
| 90 | 25 | 92.2 | { | 9.41} | 48.6 | 2648{270} | 28.8 | 2981{304} | 32.4 | 3315{338} | 36.0 | ||
| 100 | 25 | 83.0 | {8.47} | 54.0 | 32.0 | 2648{270} | 36.0 | 2981{304} | 40.0 | 3315{338} | 905 | ||
| 125 | 25 | 66.4 | {6.78} | 67.5 | 40.0 | 2648{270} | 45.0 | 2981{304} | 50.0 | 3315{338} | 1,080 | ||
| 150 | 25 | 55.3 | {5.65} | 81.0 | 48.0 | 2648{270} | 54.0 | 2981{304} | 60.0 | 3315{338} | 1,260 | ||
| 175 | 25 | 47.4 | {4.84} | 94.5 | 56.0 | 2648{270} | 63.0 | 2981{304} | 70.0 | 3315{338} | 1,430 | ||
| 200 | 25 | 41.5 | {4.23} | 108.0 | 64.0 | 2648{270} | 72.0 | 2981{304} | 80.0 | 3315{338} | 1,620 | ||
| 225 | 25 | 36.9 | {3.76} | 122.0 | 72.0 | 2648{270} | 81.0 | 2981{304} | 90.0 | 3315{338} | 1,810 | ||
| 250 | 25 | 33.2 | {3.39} | 135.0 | 80.0 | 2648{270} | 90.0 | 2981{304} | 100.0 | 3315{338} | 1,980 | ||
| 275 | 25 | 30.2 | {3.08} | 149.0 | 88.0 | 2648{270} | 99.0 | 2981{304} | 110.0 | 3315{338} | 2,160 | ||
| 300 | 25 | 27.7 | {2.82} | 162.0 | 96.0 | 2648{270} | 108.0 | 2981{304} | 120.0 | 3315{338} | 2,330 | ||
| 350 | 25 | 23.7 | {2.42} | 200.9 | 112.0 | 2648{270} | 126.0 | 2981{304} | 140.0 | 3315{338} | 2,800 | ||
| 400 | 25 | 20.7 | {2.11} | 216.0 | 128.0 | 2648{270} | 144.0 | 2981{304} | 160.0 | 3315{338} | 3,370 | ||
| 450 | 25 | 18.4 | {1.88} | 243.0 | 144.0 | 2648{270} | 162.0 | 2981{304} | 180.0 | 3315{338} | 4,050 | ||
| 500 | 25 | 16.6 | {1.69} | 270.0 | 160.0 | 2648{270} | 182.0 | 2981{304} | 200.0 | 3315{338} | 4,860 | ||
| SSWL | 60 | ||||||||||||
| 60 | 30 | 199.0 | {20.30} | 32.4 | 19.2 | 3815{389} | 21.6 | 4286{437} | 24.0 | 4766{486} | 1,000 | ||
| 70 | 30 | 170.5 | {17.40} | 37.8 | 22.4 | 3815{389} | 25.2 | 4286{437} | 28.0 | 4766{486} | 1,030 | ||
| 80 | 30 | 149.2 | {15.23} | 43.2 | 25.6 | 3815{389} | 28.8 | 4286{437} | 32.0 | 4766{486} | 1,070 | ||
| 90 | 30 | 132.6 | {13.53} | 48.6 | 28.8 | 3815{389} | 32.4 | 4286{437} | 36.0 | 4766{486} | 1,130 | ||
| 100 | 30 | 119.4 | {12.18} | 54.0 | 32.0 | 3815{389} | 36.0 | 4286{437} | 40.0 | 4766{486} | 1,210 | ||
| 125 | 30 | 95.5 | {9.74} | 67.5 | 40.0 | 3815{389} | 45.0 | 4286{437} | 50.0 | 4766{486} | 1,460 | ||
| 150 | 30 | 79.6 | {8.12} | 81.0 | 48.0 | 3815{389} | 54.0 | 4286{437} | 60.0 | 4766{486} | 1,710 | ||
| 175 | 30 | 68.2 | {6.96} | 94.5 | 56.0 | 3815{389} | 63.0 | 4286{437} | 70.0 | 4766{486} | 1,960 | ||
| 200 | 30 | 59.7 | {6.09} | 108.0 | 64.0 | 3815{389} | 72.0 | 4286{437} | 80.0 | 4766{486} | 2,210 | ||
| 225 | 30 | 53.0 | {5.40} | 122.0 | 72.0 | 3815{389} | 81.0 | 4286{437} | 90.0 | 4766{486} | 2,450 | ||
| 250 | 30 | 47.8 | {4.87} | 135.0 | 80.0 | 3815{389} | 90.0 | 4286{437} | 100.0 | 4766{486} | 2,700 | ||
| 275 | 30 | 43.4 | {4.42} | 149.0 | 88.0 | 3815{389} | 99.0 | 4286{437} | 110.0 | 4766{486} | 2,940 | ||
| 300 | 30 | 39.8 | {4.06} | 162.0 | 96.0 | 3815{389} | 108.0 | 4286{437} | 120.0 | 4766{486} | 3,190 | ||
| 350 | 30 | 34.1 | {3.48} | 200.9 | 112.0 | 3815{389} | 126.0 | 4286{437} | 140.0 | 4766{486} | 3,800 | ||
| 400 | 30 | 29.8 | {3.04} | 216.0 | 128.0 | 3815{389} | 144.0 | 4286{437} | 160.0 | 4766{486} | 4,520 | ||
| 450 | 30 | 26.5 | {2.70} | 243.0 | 144.0 | 3815{389} | 162.0 | 4286{437} | 180.0 | 4766{486} | 5,370 | ||
| 500 | 30 | 23.9 | {2.43} | 240.0 | 160.0 | 3815{389} | 180.0 | 4286{437} | 200.0 | 4766{486} | 6,370 | ||
| SSWL | 70 | ||||||||||||
| 70 | 38.5 | 213.7 | {21.80} | 40.2 | 22.425.2 | 4786{488} | 28.0 | 5384{549} | 5982{610} | 1,650 | |||
| 80 | 38.5 | 187.0 | {19.08} | 45.9 | 25.6 | 4786{488} | 28.8 | 5384{549} | 32.0 | 5982{610} | 1,710 | ||
| 90 | 38.5 | 166.2 | {16.96} | 51.7 | 28.8 | 4786{488} | 32.4 | 5384{549} | 36.0 | 5982{610} | 1,760 | ||
| 100 | 38.5 | 149.6 | {15.26} | 57.4 | 32.0 | 4786{488} | 36.0 | 5384{549} | 40.0 | 5982{610} | 1,950 | ||
| 125 | 38.5 | 119.7 | {12.21} | 71.8 | 40.0 | 4786{488} | 45.0 | 5384{549} | 50.0 | 5982{610} | 2,230 | ||
| 150 | 38.5 | 99.7 | {10.17} | 86.1 | 48.0 | 4786{488} | 54.0 | 5384{549} | 60.0 | 5982{610} | 2,570 | ||
| 175 | 38.5 | 85.5 | {8.72} | 100.5 | 56.0 | 4786{488} | 63.0 | 5384{549} | 70.0 | 5982{610} | 2,950 | ||
| 200 | 38.5 | 74.8 | {7.63} | 114.8 | 64.0 | 4786{488} | 72.0 | 5384{549} | 80.0 | 5982{610} | 3,470 | ||
| 250 | 38.5 | 59.8 | {6.10} | 143.5 | 80.0 | 4786{488} | 90.0 | 5384{549} | 100.0 | 5982{610} | 4,180 | ||
| 300 | 38.5 | 49.9 | {5.09} | 172.2 | 96.0 | 4786{488} | 108.0 | 5384{549} | 120.0 | 5982{610} | 4,990 | ||
| 350 | 38.5 | 42.7 | {4.36} | 200.9 | 112.0 | 4786{488} | 126.0 | 5384{549} | 140.0 | 5982{610} | 5,700 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
- Load calculation method:Load=Spring constant×Deflection
(kgf=N×0.101972)
- The solid height values are reference only
