Mold Parts

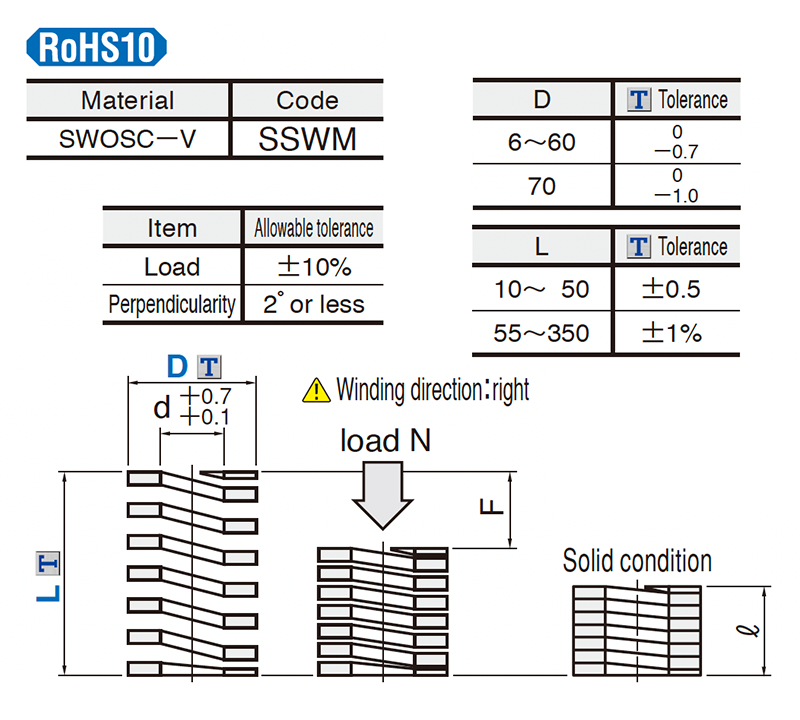

| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×25.6% | F＝L×28.8% | F＝L×32% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWL | 6 | ||||||||||||
| 15 | 3 | 13.1 | {1.34} | 8.6 | 4.8 | 62.8{6.4} | 5.4 | 70.6{7.2} | 6.0 | 78.5{8.0} | 85 | ||
| 20 | 3 | 9.8 | {1.00} | 11.5 | 6.4 | 62.8{6.4} | 7.2 | 70.6{7.2} | 8.0 | 78.5{8.0} | 90 | ||
| 25 | 3 | 7.9 | {0.80} | 14.4 | 8.0 | 62.8{6.4} | 9.0 | 70.6{7.2} | 10.0 | 78.5{8.0} | 100 | ||
| 30 | 3 | 6.5 | {0.67} | 17.2 | 9.6 | 62.8{6.4} | 10.8 | 70.6{7.2} | 12.0 | 78.5{8.0} | 110 | ||
| 35 | 3 | 5.6 | {0.57} | 20.1 | 11.2 | 62.8{6.4} | 12.6 | 70.6{7.2} | 14.0 | 78.5{8.0} | 110 | ||
| 40 | 3 | 4.9 | {0.50} | 23.0 | 12.8 | 62.8{6.4} | 14.4 | 70.6{7.2} | 16.0 | 78.5{8.0} | 120 | ||
| SSWL | 8 | ||||||||||||
| 10 | 4 | 24.5 | {2.50} | 5.4 | 3.2 | 78.5{8.0} | 3.6 | 88.3{9.0} | 4.0 | 98.1{10.0} | 80 | ||
| 15 | 4 | 16.4 | {1.67} | 8.1 | 4.8 | 78.5{8.0} | 5.4 | 88.3{9.0} | 6.0 | 98.1{10.0} | 75 | ||
| 20 | 4 | 12.3 | {1.25} | 10.8 | 6.4 | 78.5{8.0} | 7.2 | 88.3{9.0} | 8.0 | 98.1{10.0} | 85 | ||
| 25 | 4 | 9.8 | {1.00} | 13.5 | 8.0 | 78.5{8.0} | 9.0 | 88.3{9.0} | 10.0 | 98.1{10.0} | 85 | ||
| 30 | 4 | 8.2 | {0.83} | 16.2 | 9.6 | 78.5{8.0} | 10.8 | 88.3{9.0} | 12.0 | 98.1{10.0} | 90 | ||
| 35 | 4 | 7.0 | {0.72} | 18.9 | 11.2 | 78.5{8.0} | 12.6 | 88.3{9.0} | 14.0 | 98.1{10.0} | 100 | ||
| 40 | 4 | 6.1 | {0.63} | 21.6 | 12.8 | 78.5{8.0} | 14.4 | 88.3{9.0} | 16.0 | 98.1{10.0} | 110 | ||
| 45 | 4 | 5.5 | {0.56} | 24.3 | 14.4 | 78.5{8.0} | 16.2 | 88.3{9.0} | 18.0 | 98.1{10.0} | 120 | ||
| 50 | 4 | 4.9 | {0.50} | 27.0 | 16.0 | 78.5{8.0} | 18.0 | 88.3{9.0} | 20.0 | 98.1{10.0} | 130 | ||
| 55 | 4 | 4.5 | {0.46} | 29.7 | 17.6 | 78.5{8.0} | 19.8 | 88.3{9.0} | 22.0 | 98.1{10.0} | 140 | ||
| 60 | 4 | 4.1 | {0.42} | 32.4 | 19.2 | 78.5{8.0} | 21.6 | 88.3{9.0} | 24.0 | 98.1{10.0} | 145 | ||
| 65 | 4 | 3.8 | {0.39} | 37.3 | 20.8 | 78.5{8.0} | 23.4 | 88.3{9.0} | 26.0 | 98.1{10.0} | 155 | ||
| 70 | 4 | 3.5 | {0.36} | 40.2 | 22.4 | 78.5{8.0} | 25.2 | 88.3{9.0} | 28.0 | 98.1{10.0} | 165 | ||
| 75 | 4 | 3.3 | {0.33} | 43.1 | 24.0 | 78.5{8.0} | 27.0 | 88.3{9.0} | 30.0 | 98.1{10.0} | 175 | ||
| 80 | 4 | 3.1 | {0.31} | 45.9 | 25.6 | 78.5{8.0} | 28.8 | 88.3{9.0} | 32.0 | 98.1{10.0} | 185 | ||
| SSWL | 10 | ||||||||||||
| 10 | 5 | 34.3 | {3.50} | 5.4 | 3.2 | 109.8{11.2} | 3.6 | 123.6{12.6} | 4.0 | 137.3{14.0} | 85 | ||
| 15 | 5 | 22.9 | {2.34} | 8.1 | 4.8 | 109.8{11.2} | 5.4 | 123.6{12.6} | 6.0 | 137.3{14.0} | 80 | ||
| 20 | 5 | 17.2 | {1.75} | 10.8 | 6.4 | 109.8{11.2} | 7.2 | 123.6{12.6} | 8.0 | 137.3{14.0} | 80 | ||
| 25 | 5 | 13.7 | {1.40} | 13.5 | 8.0 | 109.8{11.2} | 9.0 | 123.6{12.6} | 10.0 | 137.3{14.0} | 85 | ||
| 30 | 5 | 11.4 | {1.17} | 16.2 | 9.6 | 109.8{11.2} | 10.8 | 123.6{12.6} | 12.0 | 137.3{14.0} | 85 | ||
| 35 | 5 | 9.8 | {1.00} | 18.9 | 11.2 | 109.8{11.2} | 12.6 | 123.6{12.6} | 14.0 | 137.3{14.0} | 85 | ||
| 40 | 5 | 8.6 | {0.88} | 21.6 | 12.8 | 109.8{11.2} | 14.4 | 123.6{12.6} | 16.0 | 137.3{14.0} | 90 | ||
| 45 | 5 | 7.6 | {0.78} | 24.3 | 14.4 | 109.8{11.2} | 16.2 | 123.6{12.6} | 18.0 | 137.3{14.0} | 100 | ||
| 50 | 5 | 6.9 | {0.70} | 27.0 | 16.0 | 109.8{11.2} | 18.0 | 123.6{12.6} | 20.0 | 137.3{14.0} | 110 | ||
| 55 | 5 | 6.2 | {0.64} | 29.7 | 17.6 | 109.8{11.2} | 19.8 | 123.6{12.6} | 22.0 | 137.3{14.0} | 120 | ||
| 60 | 5 | 5.7 | {0.58} | 32.4 | 19.2 | 109.8{11.2} | 21.6 | 123.6{12.6} | 24.0 | 137.3{14.0} | 130 | ||
| 65 | 5 | 5.3 | {0.54} | 35.1 | 20.8 | 109.8{11.2} | 23.4 | 123.6{12.6} | 26.0 | 137.3{14.0} | 140 | ||
| 70 | 5 | 4.9 | {0.50} | 37.8 | 22.4 | 109.8{11.2} | 25.2 | 123.6{12.6} | 28.0 | 137.3{14.0} | 140 | ||
| 75 | 5 | 4.6 | {0.47} | 40.5 | 24.0 | 109.8{11.2} | 27.0 | 123.6{12.6} | 30.0 | 137.3{14.0} | 155 | ||
| 80 | 5 | 4.3 | {0.44} | 43.2 | 25.6 | 109.8{11.2} | 28.8 | 123.6{12.6} | 32.0 | 137.3{14.0} | 170 | ||
| 90 | 5 | 3.8 | {0.39} | 48.6 | 28.8 | 109.8{11.2} | 32.4 | 123.6{12.6} | 36.0 | 137.3{14.0} | 190 | ||
| SSWL | 12 | ||||||||||||
| 15 | 6 | 34.7 | {3.54} | 8.1 | 4.8 | 164.8{16.8} | 5.4 | 185.3{18.9} | 6.0 | 205.9{21.0} | 90 | ||
| 20 | 6 | 26.1 | {2.66} | 10.8 | 6.4 | 164.8{16.8} | 7.2 | 185.3{18.9} | 8.0 | 205.9{21.0} | 90 | ||
| 25 | 6 | 20.8 | {2.13} | 13.5 | 8.0 | 164.8{16.8} | 9.0 | 185.3{18.9} | 10.0 | 205.9{21.0} | 100 | ||
| 30 | 6 | 17.4 | {1.77} | 16.2 | 9.6 | 164.8{16.8} | 10.8 | 185.3{18.9} | 12.0 | 205.9{21.0} | 110 | ||
| 35 | 6 | 14.9 | {1.52} | 18.9 | 11.2 | 164.8{16.8} | 12.6 | 185.3{18.9} | 14.0 | 205.9{21.0} | 110 | ||
| 40 | 6 | 13.0 | {1.33} | 21.6 | 12.8 | 164.8{16.8} | 14.4 | 185.3{18.9} | 16.0 | 205.9{21.0} | 120 | ||
| 45 | 6 | 11.6 | {1.18} | 24.3 | 14.4 | 164.8{16.8} | 16.2 | 185.3{18.9} | 18.0 | 205.9{21.0} | 130 | ||
| 50 | 6 | 10.4 | {1.06} | 27.0 | 16.0 | 164.8{16.8} | 18.0 | 185.3{18.9} | 20.0 | 205.9{21.0} | 140 | ||
| 55 | 6 | 9.5 | {0.97} | 29.7 | 17.6 | 164.8{16.8} | 19.8 | 185.3{18.9} | 22.0 | 205.9{21.0} | 145 | ||
| 60 | 6 | 8.7 | {0.89} | 32.4 | 19.2 | 164.8{16.8} | 21.6 | 185.3{18.9} | 24.0 | 205.9{21.0} | 155 | ||
| 65 | 6 | 8.0 | {0.82} | 35.1 | 20.8 | 164.8{16.8} | 23.4 | 185.3{18.9} | 26.0 | 205.9{21.0} | 160 | ||
| 70 | 6 | 7.4 | {0.76} | 37.8 | 22.4 | 164.8{16.8} | 25.2 | 185.3{18.9} | 28.0 | 205.9{21.0} | 170 | ||
| 75 | 6 | 6.9 | {0.71} | 40.5 | 24.0 | 164.8{16.8} | 27.0 | 185.3{18.9} | 30.0 | 205.9{21.0} | 180 | ||
| 80 | 6 | 6.5 | {0.66} | 43.2 | 25.6 | 164.8{16.8} | 28.8 | 185.3{18.9} | 32.0 | 205.9{21.0} | 195 | ||
| 90 | 6 | 5.8 | {0.59} | 48.6 | 28.8 | 164.8{16.8} | 32.4 | 185.3{18.9} | 36.0 | 205.9{21.0} | 215 | ||
| SSWL | 14 | ||||||||||||
| 20 | 7 | 34.3 | {3.50} | 10.8 | 6.4 | 219.7{22.4} | 7.2 | 247.1{25.2} | 8.0 | 274.6{28.0} | 130 | ||
| 25 | 7 | 27.5 | {2.80} | 13.5 | 8.0 | 219.7{22.4} | 9.0 | 247.1{25.2} | 10.0 | 274.6{28.0} | 130 | ||
| 30 | 7 | 22.9 | {2.34} | 16.2 | 9.6 | 219.7{22.4} | 10.8 | 247.1{25.2} | 12.0 | 274.6{28.0} | 140 | ||
| 35 | 7 | 19.6 | {2.00} | 18.9 | 11.2 | 219.7{22.4} | 12.6 | 247.1{25.2} | 14.0 | 274.6{28.0} | 145 | ||
| 40 | 7 | 17.2 | {1.75} | 21.6 | 12.8 | 219.7{22.4} | 14.4 | 247.1{25.2} | 16.0 | 274.6{28.0} | 155 | ||
| 45 | 7 | 15.3 | {1.56} | 24.3 | 14.4 | 219.7{22.4} | 16.2 | 247.1{25.2} | 18.0 | 274.6{28.0} | 160 | ||
| 50 | 7 | 13.7 | {1.40} | 27.0 | 16.0 | 219.7{22.4} | 18.0 | 247.1{25.2} | 20.0 | 274.6{28.0} | 170 | ||
| 55 | 7 | 12.5 | {1.27} | 29.7 | 17.6 | 219.7{22.4} | 19.8 | 247.1{25.2} | 22.0 | 274.6{28.0} | 180 | ||
| 60 | 7 | 11.5 | {1.17} | 32.4 | 19.2 | 219.7{22.4} | 21.6 | 247.1{25.2} | 24.0 | 274.6{28.0} | 185 | ||
| 65 | 7 | 10.6 | {1.08} | 35.1 | 20.8 | 219.7{22.4} | 23.4 | 247.1{25.2} | 26.0 | 274.6{28.0} | 195 | ||
| 70 | 7 | 9.8 | {1.00} | 37.8 | 22.4 | 219.7{22.4} | 25.2 | 247.1{25.2} | 28.0 | 274.6{28.0} | 195 | ||
| 75 | 7 | 9.2 | {0.93} | 40.5 | 24.0 | 219.7{22.4} | 27.0 | 247.1{25.2} | 30.0 | 274.6{28.0} | 205 | ||
| 80 | 7 | 8.6 | {0.88} | 43.2 | 25.6 | 219.7{22.4} | 28.8 | 247.1{25.2} | 32.0 | 274.6{28.0} | 215 | ||
| 90 | 7 | 7.6 | {0.78} | 48.6 | 28.8 | 219.7{22.4} | 32.4 | 247.1{25.2} | 36.0 | 274.6{28.0} | 235 | ||
| 100 | 7 | 6.9 | {0.70} | 54.0 | 32.0 | 219.7{22.4} | 36.0 | 247.1{25.2} | 40.0 | 274.6{28.0} | 250 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×25.6% | F＝L×28.8% | F＝L×32% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWM | 16 | ||||||||||||
| 20 | 8 | 78.5 | {8.01} | 13.1 | 5.1 | 400.1{40.8} | 5.8 | 450.1{45.9} | 6.4 | 500.1{51.0} | 145 | ||
| 25 | 8 | 62.8 | {6.41} | 15.7 | 6.4 | 400.1{40.8} | 7.2 | 450.1{45.9} | 8.0 | 500.1{51.0} | 145 | ||
| 30 | 8 | 52.4 | {5.34} | 18.8 | 7.7 | 400.1{40.8} | 8.6 | 450.1{45.9} | 9.6 | 500.1{51.0} | 155 | ||
| 35 | 8 | 44.9 | {4.58} | 21.9 | 9.0 | 400.1{40.8} | 10.1 | 450.1{45.9} | 11.2 | 500.1{51.0} | 160 | ||
| 40 | 8 | 39.3 | {4.01} | 25.0 | 10.2 | 400.1{40.8} | 11.5 | 450.1{45.9} | 12.8 | 500.1{51.0} | 180 | ||
| 45 | 8 | 34.9 | {3.56} | 28.2 | 11.5 | 400.1{40.8} | 13.0 | 450.1{45.9} | 14.4 | 500.1{51.0} | 185 | ||
| 50 | 8 | 31.4 | {3.21} | 31.3 | 12.8 | 400.1{40.8} | 14.4 | 450.1{45.9} | 16.0 | 500.1{51.0} | 195 | ||
| 55 | 8 | 28.6 | {2.91} | 34.4 | 14.1 | 400.1{40.8} | 15.8 | 450.1{45.9} | 17.6 | 500.1{51.0} | 215 | ||
| 60 | 8 | 26.2 | {2.67} | 37.6 | 15.4 | 400.1{40.8} | 17.3 | 450.1{45.9} | 19.2 | 500.1{51.0} | 225 | ||
| 65 | 8 | 24.2 | {2.47} | 40.7 | 16.6 | 400.1{40.8} | 18.7 | 450.1{45.9} | 20.8 | 500.1{51.0} | 235 | ||
| 70 | 8 | 22.4 | {2.29} | 43.8 | 17.9 | 400.1{40.8} | 20.2 | 450.1{45.9} | 22.4 | 500.1{51.0} | 250 | ||
| 75 | 8 | 20.9 | {2.14} | 47.0 | 19.2 | 400.1{40.8} | 21.6 | 450.1{45.9} | 24.0 | 500.1{51.0} | 260 | ||
| 80 | 8 | 19.6 | {2.00} | 50.1 | 20.5 | 400.1{40.8} | 23.0 | 450.1{45.9} | 25.6 | 500.1{51.0} | 275 | ||
| 90 | 8 | 17.5 | {1.78} | 56.3 | 23.0 | 400.1{40.8} | 25.9 | 450.1{45.9} | 28.8 | 500.1{51.0} | 285 | ||
| 100 | 8 | 15.7 | {1.60} | 62.6 | 25.6 | 400.1{40.8} | 28.8 | 450.1{45.9} | 32.0 | 500.1{51.0} | 305 | ||
| SSWM | 18 | ||||||||||||
| 20 | 9 | 99.6 | {10.16} | 13.1 | 5.1 | 509.9{52.0} | 5.8 | 573.7{58.5} | 6.4 | 637.4{65.0} | 155 | ||
| 25 | 9 | 79.7 | {8.13} | 15.7 | 6.4 | 509.9{52.0} | 7.2 | 573.7{58.5} | 8.0 | 637.4{65.0} | 155 | ||
| 30 | 9 | 66.4 | {6.78} | 18.8 | 7.7 | 509.9{52.0} | 8.6 | 573.7{58.5} | 9.6 | 637.4{65.0} | 160 | ||
| 35 | 9 | 56.9 | {5.81} | 21.9 | 9.0 | 509.9{52.0} | 10.1 | 573.7{58.5} | 11.2 | 637.4{65.0} | 180 | ||
| 40 | 9 | 49.8 | {5.08} | 25.0 | 10.2 | 509.9{52.0} | 11.5 | 573.7{58.5} | 12.8 | 637.4{65.0} | 185 | ||
| 45 | 9 | 44.3 | {4.52} | 28.2 | 11.5 | 509.9{52.0} | 13.0 | 573.7{58.5} | 14.4 | 637.4{65.0} | 195 | ||
| 50 | 9 | 39.8 | {4.07} | 31.3 | 12.8 | 509.9{52.0} | 14.4 | 573.7{58.5} | 16.0 | 637.4{65.0} | 215 | ||
| 55 | 9 | 36.2 | {3.70} | 34.4 | 14.1 | 509.9{52.0} | 15.8 | 573.7{58.5} | 17.6 | 637.4{65.0} | 225 | ||
| 60 | 9 | 33.2 | {3.39} | 37.6 | 15.4 | 509.9{52.0} | 17.3 | 573.7{58.5} | 19.2 | 637.4{65.0} | 235 | ||
| 65 | 9 | 30.6 | {3.13} | 40.7 | 16.6 | 509.9{52.0} | 18.7 | 573.7{58.5} | 20.8 | 637.4{65.0} | 250 | ||
| 70 | 9 | 28.5 | {2.90} | 43.8 | 17.9 | 509.9{52.0} | 20.2 | 573.7{58.5} | 22.4 | 637.4{65.0} | 260 | ||
| 75 | 9 | 26.6 | {2.71} | 47.0 | 19.2 | 509.9{52.0} | 21.6 | 573.7{58.5} | 24.0 | 637.4{65.0} | 275 | ||
| 80 | 9 | 24.9 | {2.54} | 50.1 | 20.5 | 509.9{52.0} | 23.0 | 573.7{58.5} | 25.6 | 637.4{65.0} | 285 | ||
| 90 | 9 | 22.1 | {2.26} | 56.3 | 23.0 | 509.9{52.0} | 25.9 | 573.7{58.5} | 28.8 | 637.4{65.0} | 315 | ||
| 100 | 9 | 19.9 | {2.03} | 62.6 | 25.6 | 509.9{52.0} | 28.8 | 573.7{58.5} | 32.0 | 637.4{65.0} | 335 | ||
| SSWM | 20 | ||||||||||||
| 20 | 10 | 122.6 | {12.51} | 13.1 | 5.1 | 627.6{64.0} | 5.8 | 706.1{72.0} | 6.4 | 784.5{80.0} | 155 | ||
| 25 | 10 | 98.1 | {10.01} | 15.7 | 6.4 | 627.6{64.0} | 7.2 | 706.1{72.0} | 8.0 | 784.5{80.0} | 155 | ||
| 30 | 10 | 81.7 | {8.34} | 18.8 | 7.7 | 627.6{64.0} | 8.6 | 706.1{72.0} | 9.6 | 784.5{80.0} | 160 | ||
| 35 | 10 | 70.0 | {7.15} | 21.9 | 9.0 | 627.6{64.0} | 10.1 | 706.1{72.0} | 11.2 | 784.5{80.0} | 180 | ||
| 40 | 10 | 61.3 | {6.25} | 25.0 | 10.2 | 627.6{64.0} | 11.5 | 706.1{72.0} | 12.8 | 784.5{80.0} | 185 | ||
| 45 | 10 | 54.5 | {5.56} | 28.2 | 11.5 | 627.6{64.0} | 13.0 | 706.1{72.0} | 14.4 | 784.5{80.0} | 195 | ||
| 50 | 10 | 49.0 | {5.00} | 31.3 | 12.8 | 627.6{64.0} | 14.4 | 706.1{72.0} | 16.0 | 784.5{80.0} | 215 | ||
| 55 | 10 | 44.6 | {4.55} | 34.4 | 14.1 | 627.6{64.0} | 15.8 | 706.1{72.0} | 17.6 | 784.5{80.0} | 225 | ||
| 60 | 10 | 40.9 | {4.17} | 37.6 | 15.4 | 627.6{64.0} | 17.3 | 706.1{72.0} | 19.2 | 784.5{80.0} | 235 | ||
| 65 | 10 | 37.7 | {3.85} | 40.7 | 16.6 | 627.6{64.0} | 18.7 | 706.1{72.0} | 20.8 | 784.5{80.0} | 250 | ||
| 70 | 10 | 35.0 | {3.57} | 43.8 | 17.9 | 627.6{64.0} | 20.2 | 706.1{72.0} | 22.4 | 784.5{80.0} | 260 | ||
| 75 | 10 | 32.7 | {3.34} | 47.0 | 19.2 | 627.6{64.0} | 21.6 | 706.1{72.0} | 24.0 | 784.5{80.0} | 275 | ||
| 80 | 10 | 30.6 | {3.13} | 50.1 | 20.5 | 627.6{64.0} | 23.0 | 706.1{72.0} | 25.6 | 784.5{80.0} | 285 | ||
| 90 | 10 | 27.2 | {2.78} | 56.3 | 23.0 | 627.6{64.0} | 25.9 | 706.1{72.0} | 28.8 | 784.5{80.0} | 315 | ||
| 100 | 10 | 24.5 | {2.50} | 62.6 | 25.6 | 627.6{64.0} | 28.8 | 706.1{72.0} | 32.0 | 784.5{80.0} | 335 | ||
| 125 | 10 | 19.6 | {2.00} | 78.2 | 32.0 | 627.6{64.0} | 36.0 | 706.1{72.0} | 40.0 | 784.5{80.0} | 365 | ||
| 150 | 10 | 16.3 | {1.67} | 93.9 | 38.4 | 627.6{64.0} | 43.2 | 706.1{72.0} | 48.0 | 784.5{80.0} | 415 | ||
| SSWM | 22 | ||||||||||||
| 25 | 11 | 119.0 | {12.14} | 15.7 | 6.4 | 761.0{77.6} | 7.2 | 856.1{87.3} | 8.0 | 951.2{97.0} | 160 | ||
| 30 | 11 | 99.1 | {10.12} | 18.8 | 7.7 | 761.0{77.6} | 8.6 | 856.1{87.3} | 9.6 | 951.2{97.0} | 170 | ||
| 35 | 11 | 85.0 | {8.67} | 21.9 | 9.0 | 761.0{77.6} | 10.1 | 856.1{87.3} | 11.2 | 951.2{97.0} | 180 | ||
| 40 | 11 | 74.4 | {7.59} | 25.0 | 10.2 | 761.0{77.6} | 11.5 | 856.1{87.3} | 12.8 | 951.2{97.0} | 185 | ||
| 45 | 11 | 66.1 | {6.74} | 28.2 | 11.5 | 761.0{77.6} | 13.0 | 856.1{87.3} | 14.4 | 951.2{97.0} | 195 | ||
| 50 | 11 | 59.5 | {6.07} | 31.3 | 12.8 | 761.0{77.6} | 14.4 | 856.1{87.3} | 16.0 | 951.2{97.0} | 195 | ||
| 55 | 11 | 54.1 | {5.52} | 34.4 | 14.1 | 761.0{77.6} | 15.8 | 856.1{87.3} | 17.6 | 951.2{97.0} | 205 | ||
| 60 | 11 | 49.6 | {5.06} | 37.6 | 15.4 | 761.0{77.6} | 17.3 | 856.1{87.3} | 19.2 | 951.2{97.0} | 215 | ||
| 65 | 11 | 45.8 | {4.67} | 40.7 | 16.6 | 761.0{77.6} | 18.7 | 856.1{87.3} | 20.8 | 951.2{97.0} | 225 | ||
| 70 | 11 | 42.5 | {4.34} | 43.8 | 17.9 | 761.0{77.6} | 20.2 | 856.1{87.3} | 22.4 | 951.2{97.0} | 235 | ||
| 75 | 11 | 39.7 | {4.05} | 47.0 | 19.2 | 761.0{77.6} | 21.6 | 856.1{87.3} | 24.0 | 951.2{97.0} | 240 | ||
| 80 | 11 | 37.2 | {3.79} | 50.1 | 20.5 | 761.0{77.6} | 23.0 | 856.1{87.3} | 25.6 | 951.2{97.0} | 250 | ||
| 90 | 11 | 33.1 | {3.37} | 56.3 | 23.0 | 761.0{77.6} | 25.9 | 856.1{87.3} | 28.8 | 951.2{97.0} | 270 | ||
| 100 | 11 | 29.7 | {3.03} | 62.6 | 25.6 | 761.0{77.6} | 28.8 | 856.1{87.3} | 32.0 | 951.2{97.0} | 275 | ||
| 125 | 11 | 23.8 | {2.43} | 78.2 | 32.0 | 761.0{77.6} | 36.0 | 856.1{87.3} | 40.0 | 951.2{97.0} | 325 | ||
| 150 | 11 | 19.8 | {2.02} | 93.9 | 38.4 | 761.0{77.6} | 43.2 | 856.1{87.3} | 48.0 | 951.2{97.0} | 365 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×25.6% | F＝L×28.8% | F＝L×32% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWM | 25 | ||||||||||||
| 25 | 12.5 | 153.2 | {15.64} | 15.7 | 6.4 | 980.7{100} | 7.2 | 1108{113} | 8.0 | 1226{125} | 155 | ||
| 30 | 12.5 | 127.7 | {13.03} | 18.8 | 7.7 | 980.7{100} | 8.6 | 1108{113} | 9.6 | 1226{125} | 160 | ||
| 35 | 12.5 | 109.5 | {11.17} | 21.9 | 9.0 | 980.7{100} | 10.1 | 1108{113} | 11.2 | 1226{125} | 180 | ||
| 40 | 12.5 | 95.8 | {9.77} | 25.0 | 10.2 | 980.7{100} | 11.5 | 1108{113} | 12.8 | 1226{125} | 185 | ||
| 45 | 12.5 | 85.1 | {8.69} | 28.2 | 11.5 | 980.7{100} | 13.0 | 1108{113} | 14.4 | 1226{125} | 195 | ||
| 50 | 12.5 | 76.6 | {7.82} | 31.3 | 12.8 | 980.7{100} | 14.4 | 1108{113} | 16.0 | 1226{125} | 215 | ||
| 55 | 12.5 | 69.7 | {7.11} | 34.4 | 14.1 | 980.7{100} | 15.8 | 1108{113} | 17.6 | 1226{125} | 225 | ||
| 60 | 12.5 | 63.8 | {6.52} | 37.6 | 15.4 | 980.7{100} | 17.3 | 1108{113} | 19.2 | 1226{125} | 235 | ||
| 65 | 12.5 | 58.9 | {6.01} | 40.7 | 16.6 | 980.7{100} | 18.7 | 1108{113} | 20.8 | 1226{125} | 250 | ||
| 70 | 12.5 | 54.7 | {5.58} | 43.8 | 17.9 | 980.7{100} | 20.2 | 1108{113} | 22.4 | 1226{125} | 260 | ||
| 75 | 12.5 | 51.1 | {5.21} | 47.0 | 19.2 | 980.7{100} | 21.6 | 1108{113} | 24.0 | 1226{125} | 275 | ||
| 80 | 12.5 | 47.9 | {4.89} | 50.1 | 20.5 | 980.7{100} | 23.0 | 1108{113} | 25.6 | 1226{125} | 285 | ||
| 90 | 12.5 | 42.6 | {4.34} | 56.3 | 23.0 | 980.7{100} | 25.9 | 1108{113} | 28.8 | 1226{125} | 315 | ||
| 100 | 12.5 | 38.3 | {3.91} | 62.6 | 25.6 | 980.7{100} | 28.8 | 1108{113} | 32.0 | 1226{125} | 335 | ||
| 125 | 12.5 | 30.6 | {3.13} | 78.2 | 32.0 | 980.7{100} | 36.0 | 1108{113} | 40.0 | 1226{125} | 385 | ||
| 150 | 12.5 | 25.5 | {2.61} | 93.9 | 38.4 | 980.7{100} | 43.2 | 1108{113} | 48.0 | 1226{125} | 440 | ||
| 175 | 12.5 | 21.9 | {2.23} | 109.5 | 44.8 | 980.7{100} | 50.4 | 1108{113} | 56.0 | 1226{125} | 495 | ||
| SSWM | 27 | ||||||||||||
| 25 | 13.5 | 179.3 | {18.30} | 15.7 | 6.4 | 1147{117} | 7.2 | 1285{131} | 8.0 | 1432{146} | 170 | ||
| 30 | 13.5 | 149.4 | {15.25} | 18.8 | 7.7 | 1147{117} | 8.6 | 1285{131} | 9.6 | 1432{146} | 185 | ||
| 35 | 13.5 | 128.1 | {13.07} | 21.9 | 9.0 | 1147{117} | 10.1 | 1285{131} | 11.2 | 1432{146} | 195 | ||
| 40 | 13.5 | 112.1 | {11.43} | 25.0 | 10.2 | 1147{117} | 11.5 | 1285{131} | 12.8 | 1432{146} | 205 | ||
| 45 | 13.5 | 99.6 | {10.16} | 28.2 | 11.5 | 1147{117} | 13.0 | 1285{131} | 14.4 | 1432{146} | 225 | ||
| 50 | 13.5 | 89.6 | {9.15} | 31.3 | 12.8 | 1147{117} | 14.4 | 1285{131} | 16.0 | 1432{146} | 235 | ||
| 55 | 13.5 | 81.5 | {8.32} | 34.4 | 14.1 | 1147{117} | 15.8 | 1285{131} | 17.6 | 1432{146} | 240 | ||
| 60 | 13.5 | 74.7 | {7.62} | 37.6 | 15.4 | 1147{117} | 17.3 | 1285{131} | 19.2 | 1432{146} | 260 | ||
| 65 | 13.5 | 69.0 | {7.04} | 40.7 | 16.6 | 1147{117} | 18.7 | 1285{131} | 20.8 | 1432{146} | 270 | ||
| 70 | 13.5 | 64.0 | {6.53} | 43.8 | 17.9 | 1147{117} | 20.2 | 1285{131} | 22.4 | 1432{146} | 275 | ||
| 75 | 13.5 | 59.8 | {6.10} | 47.0 | 19.2 | 1147{117} | 21.6 | 1285{131} | 24.0 | 1432{146} | 295 | ||
| 80 | 13.5 | 56.0 | {5.72} | 50.1 | 20.5 | 1147{117} | 23.0 | 1285{131} | 25.6 | 1432{146} | 305 | ||
| 90 | 13.5 | 49.8 | {5.08} | 56.3 | 23.0 | 1147{117} | 25.9 | 1285{131} | 28.8 | 1432{146} | 335 | ||
| 100 | 13.5 | 44.8 | {4.57} | 62.6 | 25.6 | 1147{117} | 28.8 | 1285{131} | 32.0 | 1432{146} | 350 | ||
| 125 | 13.5 | 35.9 | {3.66} | 78.2 | 32.0 | 1147{117} | 36.0 | 1285{131} | 40.0 | 1432{146} | 415 | ||
| 150 | 13.5 | 29.9 | {3.05} | 93.9 | 38.4 | 1147{117} | 43.2 | 1285{131} | 48.0 | 1432{146} | 475 | ||
| 175 | 13.5 | 25.6 | {2.61} | 109.5 | 44.8 | 1147{117} | 50.4 | 1285{131} | 56.0 | 1432{146} | 530 | ||
| SSWM | 30 | ||||||||||||
| 25 | 15 | 220.7 | {22.52} | 15.7 | 6.4 | 1412{144} | 7.2 | 1589{162} | 8.0 | 1765{180} | 185 | ||
| 30 | 15 | 183.9 | {18.76} | 18.8 | 7.7 | 1412{144} | 8.6 | 1589{162} | 9.6 | 1765{180} | 195 | ||
| 35 | 15 | 157.6 | {16.08} | 21.9 | 9.0 | 1412{144} | 10.1 | 1589{162} | 11.2 | 1765{180} | 215 | ||
| 40 | 15 | 137.9 | {14.07} | 25.0 | 10.2 | 1412{144} | 11.5 | 1589{162} | 12.8 | 1765{180} | 235 | ||
| 45 | 15 | 122.6 | {12.51} | 28.2 | 11.5 | 1412{144} | 13.0 | 1589{162} | 14.4 | 1765{180} | 250 | ||
| 50 | 15 | 110.3 | {11.26} | 31.3 | 12.8 | 1412{144} | 14.4 | 1589{162} | 16.0 | 1765{180} | 270 | ||
| 55 | 15 | 100.3 | {10.23} | 34.4 | 14.1 | 1412{144} | 15.8 | 1589{162} | 17.6 | 1765{180} | 275 | ||
| 60 | 15 | 91.9 | {9.38} | 37.6 | 15.4 | 1412{144} | 17.3 | 1589{162} | 19.2 | 1765{180} | 295 | ||
| 65 | 15 | 84.9 | {8.66} | 40.7 | 16.6 | 1412{144} | 18.7 | 1589{162} | 20.8 | 1765{180} | 315 | ||
| 70 | 15 | 78.8 | {8.04} | 43.8 | 17.9 | 1412{144} | 20.2 | 1589{162} | 22.4 | 1765{180} | 335 | ||
| 75 | 15 | 73.6 | {7.51} | 47.0 | 19.2 | 1412{144} | 21.6 | 1589{162} | 24.0 | 1765{180} | 340 | ||
| 80 | 15 | 69.0 | {7.04} | 50.1 | 20.5 | 1412{144} | 23.0 | 1589{162} | 25.6 | 1765{180} | 350 | ||
| 90 | 15 | 61.3 | {6.25} | 56.3 | 23.0 | 1412{144} | 25.9 | 1589{162} | 28.8 | 1765{180} | 385 | ||
| 100 | 15 | 55.2 | {5.63} | 62.6 | 25.6 | 1412{144} | 28.8 | 1589{162} | 32.0 | 1765{180} | 425 | ||
| 125 | 15 | 44.1 | {4.50} | 78.2 | 32.0 | 1412{144} | 36.0 | 1589{162} | 40.0 | 1765{180} | 505 | ||
| 150 | 15 | 36.8 | {3.75} | 93.9 | 38.4 | 1412{144} | 43.2 | 1589{162} | 48.0 | 1765{180} | 585 | ||
| 175 | 15 | 31.5 | {3.22} | 109.5 | 44.8 | 1412{144} | 50.4 | 1589{162} | 56.0 | 1765{180} | 675 | ||
| 200 | 15 | 27.6 | {2.81} | 125.2 | 51.2 | 1412{144} | 57.6 | 1589{162} | 64.0 | 1765{180} | 745 | ||
| SSWM | 35 | ||||||||||||
| 40 | 17.5 | 187.7 | {19.15} | 25.0 | 10.2 | 1922{196} | 11.5 | 2167{221} | 12.8 | 2403{245} | 275 | ||
| 45 | 17.5 | 166.8 | {17.03} | 28.2 | 11.5 | 1922{196} | 13.0 | 2167{221} | 14.4 | 2403{245} | 305 | ||
| 50 | 17.5 | 150.2 | {15.32} | 31.3 | 12.8 | 1922{196} | 14.4 | 2167{221} | 16.0 | 2403{245} | 335 | ||
| 55 | 17.5 | 136.5 | {13.93} | 34.4 | 14.1 | 1922{196} | 15.8 | 2167{221} | 17.6 | 2403{245} | 350 | ||
| 60 | 17.5 | 125.1 | {12.77} | 37.6 | 15.4 | 1922{196} | 17.3 | 2167{221} | 19.2 | 2403{245} | 365 | ||
| 65 | 17.5 | 115.5 | {11.79} | 40.7 | 16.6 | 1922{196} | 18.7 | 2167{221} | 20.8 | 2403{245} | 395 | ||
| 70 | 17.5 | 107.3 | {10.94} | 43.8 | 17.9 | 1922{196} | 20.2 | 2167{221} | 22.4 | 2403{245} | 425 | ||
| 75 | 17.5 | 100.1 | {10.22} | 47.0 | 19.2 | 1922{196} | 21.6 | 2167{221} | 24.0 | 2403{245} | 440 | ||
| 80 | 17.5 | 93.9 | {9.58} | 50.1 | 20.5 | 1922{196} | 23.0 | 2167{221} | 25.6 | 2403{245} | 465 | ||
| 90 | 17.5 | 83.4 | {8.51} | 56.3 | 23.0 | 1922{196} | 25.9 | 2167{221} | 28.8 | 2403{245} | 505 | ||
| 100 | 17.5 | 75.1 | {7.66} | 62.6 | 25.6 | 1922{196} | 28.8 | 2167{221} | 32.0 | 2403{245} | 555 | ||
| 125 | 17.5 | 60.1 | {6.13} | 78.2 | 32.0 | 1922{196} | 36.0 | 2167{221} | 40.0 | 2403{245} | 675 | ||
| 150 | 17.5 | 50.1 | {5.11} | 93.9 | 38.4 | 1922{196} | 43.2 | 2167{221} | 48.0 | 2403{245} | 795 | ||
| 175 | 17.5 | 42.9 | {4.38} | 109.5 | 44.8 | 1922{196} | 50.4 | 2167{221} | 56.0 | 2403{245} | 905 | ||
| 200 | 17.5 | 37.5 | {3.83} | 125.5 | 51.2 | 1922{196} | 57.6 | 2167{221} | 64.0 | 2403{245} | 1,020 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×25.6% | F＝L×28.8% | F＝L×32% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWM | 40 | ||||||||||||
| 40 | 20 | 245.2 | {25.02} | 25.0 | 10.2 | 2511{256} | 11.5 | 2824{288} | 12.8 | 3138{320} | 365 | ||
| 45 | 20 | 217.9 | {22.24} | 29.4 | 11.5 | 2511{256} | 13.0 | 2824{288} | 14.4 | 3138{320} | 390 | ||
| 50 | 20 | 196.1 | {20.01} | 31.3 | 12.8 | 2511{256} | 14.4 | 2824{288} | 16.0 | 3138{320} | 405 | ||
| 55 | 20 | 178.3 | {18.19} | 36.0 | 14.1 | 2511{256} | 15.8 | 2824{288} | 17.6 | 3138{320} | 435 | ||
| 60 | 20 | 163.4 | {16.68} | 37.6 | 15.4 | 2511{256} | 17.3 | 2824{288} | 19.2 | 3138{320} | 465 | ||
| 65 | 20 | 150.9 | {15.39} | 42.5 | 16.6 | 2511{256} | 18.7 | 2824{288} | 20.8 | 3138{320} | 495 | ||
| 70 | 20 | 140.1 | {14.30} | 43.8 | 17.9 | 2511{256} | 20.2 | 2824{288} | 22.4 | 3138{320} | 525 | ||
| 75 | 20 | 130.8 | {13.34} | 49.1 | 19.2 | 2511{256} | 21.6 | 2824{288} | 24.0 | 3138{320} | 560 | ||
| 80 | 20 | 122.6 | {12.51} | 50.1 | 20.5 | 2511{256} | 23.0 | 2824{288} | 25.6 | 3138{320} | 585 | ||
| 90 | 20 | 109.0 | {11.12} | 56.3 | 23.0 | 2511{256} | 25.9 | 2824{288} | 28.8 | 3138{320} | 655 | ||
| 100 | 20 | 98.1 | {10.01} | 62.6 | 25.6 | 2511{256} | 28.8 | 2824{288} | 32.0 | 3138{320} | 715 | ||
| 125 | 20 | 78.5 | {8.01} | 78.2 | 32.0 | 2511{256} | 36.0 | 2824{288} | 40.0 | 3138{320} | 865 | ||
| 150 | 20 | 65.4 | {6.67} | 93.9 | 38.4 | 2511{256} | 43.2 | 2824{288} | 48.0 | 3138{320} | 1,020 | ||
| 175 | 20 | 56.0 | {5.72} | 109.5 | 44.8 | 2511{256} | 50.4 | 2824{288} | 56.0 | 3138{320} | 1,180 | ||
| 200 | 20 | 49.0 | {5.00} | 125.5 | 51.2 | 2511{256} | 57.6 | 2824{288} | 64.0 | 3138{320} | 1,330 | ||
| 225 | 20 | 43.6 | {4.45} | 141.0 | 57.6 | 2511{256} | 64.8 | 2824{288} | 72.0 | 3138{320} | 1,470 | ||
| 250 | 20 | 39.2 | {4.00} | 156.5 | 64.0 | 2511{256} | 72.0 | 2824{288} | 80.0 | 3138{320} | 1,600 | ||
| 275 | 20 | 35.7 | {3.64} | 172.0 | 70.4 | 2511{256} | 79.2 | 2824{288} | 88.0 | 3138{320} | 1,890 | ||
| 300 | 20 | 32.7 | {3.34} | 196.2 | 76.8 | 2511{256} | 86.4 | 2824{288} | 96.0 | 3138{320} | 2,170 | ||
| SSWM | 50 | ||||||||||||
| 50 | 25 | 306.8 | {31.31} | 31.3 | 12.8 | 3923{400} | 14.4 | 4413{450} | 16.0 | 4903{500} | 665 | ||
| 55 | 25 | 278.6 | {28.43} | 34.4 | 14.1 | 3923{400} | 15.8 | 4413{450} | 17.6 | 4903{500} | 690 | ||
| 60 | 25 | 255.4 | {26.06} | 37.6 | 15.4 | 3923{400} | 17.3 | 4413{450} | 19.2 | 4903{500} | 705 | ||
| 65 | 25 | 235.7 | {24.06} | 40.7 | 16.6 | 3923{400} | 18.7 | 4413{450} | 20.8 | 4903{500} | 750 | ||
| 70 | 25 | 218.9 | {22.34} | 43.8 | 17.9 | 3923{400} | 20.2 | 4413{450} | 22.4 | 4903{500} | 795 | ||
| 75 | 25 | 204.3 | {20.85} | 47.0 | 19.2 | 3923{400} | 21.6 | 4413{450} | 24.0 | 4903{500} | 835 | ||
| 80 | 25 | 191.5 | {19.54} | 50.1 | 20.5 | 3923{400} | 23.0 | 4413{450} | 25.6 | 4903{500} | 875 | ||
| 90 | 25 | 170.3 | {17.37} | 56.3 | 23.0 | 3923{400} | 25.9 | 4413{450} | 28.8 | 4903{500} | 965 | ||
| 100 | 25 | 153.2 | {15.64} | 62.6 | 25.6 | 3923{400} | 28.8 | 4413{450} | 32.0 | 4903{500} | 1,050 | ||
| 125 | 25 | 122.6 | {12.51} | 78.2 | 32.0 | 3923{400} | 36.0 | 4413{450} | 40.0 | 4903{500} | 1,280 | ||
| 150 | 25 | 102.2 | {10.42} | 93.9 | 38.4 | 3923{400} | 43.2 | 4413{450} | 48.0 | 4903{500} | 1,520 | ||
| 175 | 25 | 87.6 | {8.93} | 109.5 | 44.8 | 3923{400} | 50.4 | 4413{450} | 56.0 | 4903{500} | 1,740 | ||
| 200 | 25 | 76.6 | {7.82} | 125.2 | 51.2 | 3923{400} | 57.6 | 4413{450} | 64.0 | 4903{500} | 1,980 | ||
| 225 | 25 | 68.1 | {6.95} | 141.0 | 57.6 | 3923{400} | 64.8 | 4413{450} | 72.0 | 4903{500} | 2,120 | ||
| 250 | 25 | 61.3 | {6.25} | 156.5 | 64.0 | 3923{400} | 72.0 | 4413{450} | 80.0 | 4903{500} | 2,390 | ||
| 275 | 25 | 55.7 | {5.69} | 172.0 | 70.4 | 3923{400} | 79.2 | 4413{450} | 88.0 | 4903{500} | 2,610 | ||
| 300 | 25 | 51.1 | {5.21} | 187.8 | 76.8 | 3923{400} | 86.4 | 4413{450} | 96.0 | 4903{500} | 2,820 | ||
| 350 | 25 | 43.8 | {4.47} | 228.9 | 89.6 | 3923{400} | 100.8 | 4413{450} | 112.0 | 4903{500} | 3,370 | ||
| SSWM | 60 | ||||||||||||
| 60 | 30 | 367.5 | {37.50} | 37.6 | 15.4 | 5649{596} | 6355{648} | 17.3 | 7061{720} | 19.2 | |||
| 70 | 30 | 315.0 | {32.14} | 43.8 | 17.9 | 5649{596} | 20.2 | 6355{648} | 22.4 | 7061{720} | 1,050 | ||
| 80 | 30 | 275.6 | {28.13} | 50.1 | 20.5 | 5649{596} | 23.0 | 6355{648} | 25.6 | 7061{720} | 1,190 | ||
| 90 | 30 | 245.0 | {25.00} | 56.3 | 23.0 | 5649{596} | 25.9 | 6355{648} | 28.8 | 7061{720} | 1,310 | ||
| 100 | 30 | 220.5 | {22.50} | 62.6 | 25.6 | 5649{596} | 28.8 | 6355{648} | 32.0 | 7061{720} | 1,430 | ||
| 125 | 30 | 176.4 | {18.00} | 78.2 | 32.0 | 5649{596} | 36.0 | 6355{648} | 40.0 | 7061{720} | 1,740 | ||
| 150 | 30 | 147.0 | {15.00} | 93.9 | 38.4 | 5649{596} | 43.2 | 6355{648} | 48.0 | 7061{720} | 2,050 | ||
| 175 | 30 | 126.0 | {12.86} | 109.5 | 44.8 | 5649{596} | 50.4 | 6355{648} | 56.0 | 7061{720} | 2,360 | ||
| 200 | 30 | 110.3 | {11.25} | 125.2 | 51.2 | 5649{596} | 57.6 | 6355{648} | 64.0 | 7061{720} | 2,670 | ||
| 225 | 30 | 98.0 | {10.00} | 141.0 | 57.6 | 5649{596} | 64.8 | 6355{648} | 72.0 | 7061{720} | 2,960 | ||
| 250 | 30 | 88.2 | {9.00} | 156.5 | 64.0 | 5649{596} | 72.0 | 6355{648} | 80.0 | 7061{720} | 3,250 | ||
| 275 | 30 | 80.2 | {8.18} | 172.0 | 70.4 | 5649{596} | 79.2 | 6355{648} | 88.0 | 7061{720} | 3,540 | ||
| 300 | 30 | 73.5 | {7.50} | 187.8 | 76.8 | 5649{596} | 86.4 | 6355{648} | 96.0 | 7061{720} | 3,820 | ||
| 350 | 30 | 63.0 | {6.43} | 228.9 | 89.6 | 5649{596} | 100.8 | 6355{648} | 112.0 | 7061{720} | 4,470 | ||
| SSWM | 70 | ||||||||||||
| 70 | 38.5 | 372.1 | {37.97} | 45.8 | 17.9 | 6669{680} | 0.2 | 7502{765} | 22.4 | 8336{850} | 1,970 | ||
| 80 | 38.5 | 325.6 | {33.23} | 52.3 | 20.5 | 6669{680} | 23.0 | 7502{765} | 25.6 | 8336{850} | 2,020 | ||
| 90 | 38.5 | 289.4 | {29.53} | 58.9 | 23.0 | 6669{680} | 25.9 | 7502{765} | 28.8 | 8336{850} | 2,090 | ||
| 100 | 38.5 | 260.5 | {26.58} | 65.4 | 25.6 | 6669{680} | 28.8 | 7502{765} | 32.0 | 8336{850} | 2,280 | ||
| 125 | 38.5 | 208.4 | {21.26} | 81.8 | 32.0 | 6669{680} | 36.0 | 7502{765} | 40.0 | 8336{850} | 2,760 | ||
| 150 | 38.5 | 173.7 | {17.72} | 98.1 | 38.4 | 6669{680} | 43.2 | 7502{765} | 48.0 | 8336{850} | 3,230 | ||
| 175 | 38.5 | 148.9 | {15.19} | 114.5 | 44.8 | 6669{680} | 50.4 | 7502{765} | 56.0 | 8336{850} | 3,610 | ||
| 200 | 38.5 | 130.2 | {13.29} | 130.8 | 51.2 | 6669{680} | 57.6 | 7502{765} | 64.0 | 8336{850} | 4,090 | ||
| 250 | 38.5 | 104.2 | {10.63} | 163.5 | 64.0 | 6669{680} | 72.0 | 7502{765} | 80.0 | 8336{850} | 4,940 | ||
| 300 | 38.5 | 86.8 | {8.86} | 196.2 | 76.8 | 6669{680} | 86.4 | 7502{765} | 96.0 | 8336{850} | 5,700 | ||
| 350 | 38.5 | 74.4 | {7.59} | 228.9 | 89.6 | 6669{680} | 100.8 | 7502{765} | 112.0 | 8336{850} | 6,560 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
- Load calculation method:Load=Spring constant×Deflection
(kgf=N×0.101972)
- The solid height values are reference only
