    Color Sensors SICK CS8

    Type:CS84-P1112
    Part No.:1028226

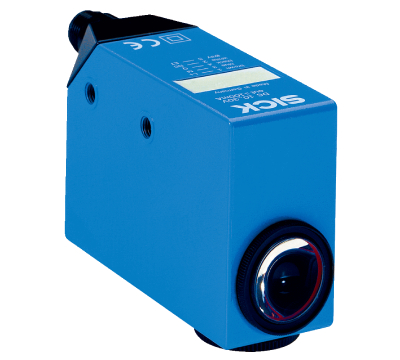

    Color Sensors SICK CS8 CS84-P1112

    Features
    Dimensions (W x H x D) 30.4 mm x 80 mm x 53 mm
    Sensing distance 12.5 mm 1)
    Sensing distance tolerance ± 3 mm
    Housing design (light emission) Rectangular
    Light source LED, RGB 2)
    Wave length 640 nm, 525 nm, 470 nm
    Light spot size 2 mm x 4 mm
    Light spot direction Vertical
    Adjustment Teach-in button
    Teach-in mode Static 1-point teach-in
    • 1) From front edge of lens.
    • 2) Average service life: 100,000 h at TU = +25 °C.

    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC 1)
    Ripple < 5 Vpp 2)
    Current consumption < 120 mA 3)
    Switching frequency

    0.5 kHz 4)

    1 kHz

    3.5 kHz

    Adjustable

    Response time 1,000 µs, 500 µs, 145 µs 5)
    Switching output PNP
    Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V
    Output (channel) 4 colors
    Output current Imax. < 100 mA 6)
    Input, teach-in (ET)

    PNP

    Teach: U = 10 V ... < UV

    Run: U < 2 V

    Input, blanking input (AT)

    PNP

    Blanked: U > 10 V ... < Uv

    Free-running: U < 2 V 7)

    Retention time (ET) 25 ms, non-volatile memory
    Time delay Deactivation delay 20 ms, shiftable
    Connection type Male connector M12, 8-pin
    Protection class II 8)
    Circuit protection

    UV connections, reverse polarity protected

    Output Q short-circuit protected

    Interference pulse suppression

    Enclosure rating IP67
    Weight 400 g
    Housing material Metal, zinc diecast
    • 1) Limit values when operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) With light/dark ratio 1:1.
    • 5) Signal transit time with resistive load.
    • 6) Consumption count Q1 / Q2.
    • 7) AT > 200 µs.
    • 8) Reference voltage DC 32 V.

    Ambient data
    Ambient operating temperature –10 °C ... +55 °C
    Ambient temperature, storage –20 °C ... +75 °C
    Shock load According to IEC 60068
    UL File No. NRKH.E181493 & NRKH7.E181493

    Classifications
    ECl@ss 5.0 27270907
    ECl@ss 5.1.4 27270907
    ECl@ss 6.0 27270907
    ECl@ss 6.2 27270907
    ECl@ss 7.0 27270907
    ECl@ss 8.0 27270907
    ECl@ss 8.1 27270907
    ECl@ss 9.0 27270907
    ECl@ss 10.0 27270907
    ECl@ss 11.0 27270907
    ETIM 5.0 EC001817
    ETIM 6.0 EC001817
    ETIM 7.0 EC001817
    ETIM 8.0 EC001817
    UNSPSC 16.0901 39121528
