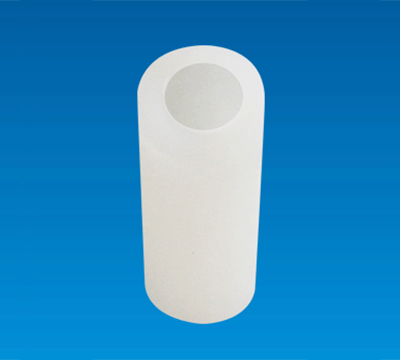

COMPONENTE PAD 101A
Componente Pad is like pillar for supporting between PCB and iron plate.
COMPONENTE PAD 101A
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.

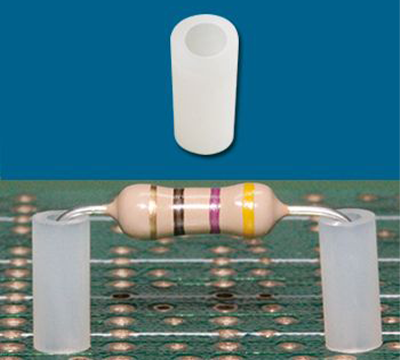

- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- OPTIONAL MATERIAL: PBT(UL)

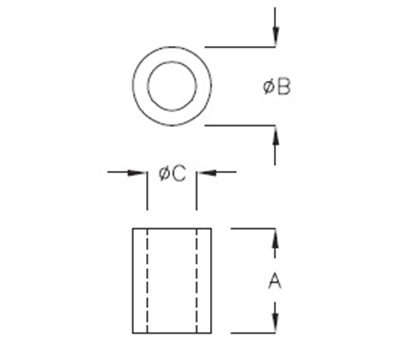

| PART NO | A | B | C | PACKAGE |
|---|---|---|---|---|
| 101A | 1.1 | 3.0 | 1.7 | 2000 |
| 101CR | 1.6 | 2.2 | 0.7 | |
| 101DC | 1.6 | 3.2 | 0.8 | |
| 101MT | 1.6 | 3.2 | 1.2 | |
| 102(H) | 2.5 | 3.2 | 1.5 | |
| 102F | 2.0 | 3.0 | 1.5 | |
| 102JK | 2.4 | 3.5 | 1.8 | |
| 103 | 3.6 | 3.5 | 1.4 | |
| 103AF | 3.0 | 2.5 | 1.5 | |
| 103K | 3.1 | 2.2 | 0.8 | |
| 103MR | 3.2 | 2.2 | 0.8 | |
| 103TD | 3.2 | 3.2 | 1.2 | |
| 103M | 3.5 | 4.5 | 1.6 | |
| 103S | 3.0 | 3.5 | 1.4 | |
| 104 | 4.2 | 4.5 | 1.4 | |
| 104AD | 4.8 | 2.2 | 0.8 | |
| 104CF | 4.8 | 3.2 | 1.2 | |
| 104A | 5.0 | 4.0 | 1.4 | |
| 104M | 4.5 | 4.5 | 1.6 | |
| 105 | 5.0 | 4.5 | 1.6 | 2000 |
| 105A | 5.0 | 3.0 | 1.4 | |
| 105M | 5.5 | 4.5 | 1.6 | |
| 106 | 6.0 | 4.4 | 1.6 | |
| 106GK | 6.4 | 3.2 | 1.2 | |
| 106HJ | 6.4 | 4.0 | 1.2 | |
| 107 | 7.0 | 4.4 | 1.6 | |
| 108BH | 7.9 | 3.2 | 1.2 | |
| 108GL | 7.9 | 4.0 | 1.2 | |
| 108 | 8.0 | 4.5 | 1.4 | |
| 108A | 8.0 | 3.2 | 1.6 | |
| 109CM | 9.5 | 3.2 | 1.2 | |
| 112NP | 12.7 | 3.2 | 1.2 |
