Sensor

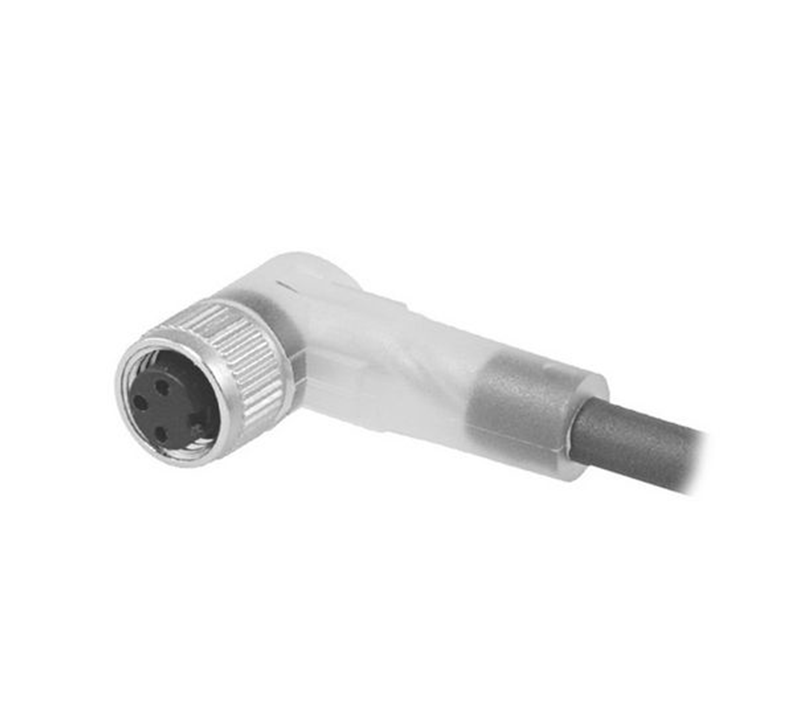

Connector M12 x 1 with attached PUR-cable Baumer ESW 31SH0500
| General data |
| Nominal current IN |
4 A |
| Nominal voltage UN |
250 V |
| Number of positions |
4 |
| Volume resistance |
≤ 5 mΩ |
| Insulation resistance |
≥ 100 MΩ |
| Length of cable |
see listing |
| Stripping length of the free conductor end |
50 mm |
| Ambient temperature (operation) |
-25 ... 90 °C |
| General characteristics |
| Coding |
A-standard |
| Surge voltage category |
II |
| Pollution degree |
3 |
| Degree of protection |
IP65/IP67/IP68 |
| Contact material |
CuSn |
| Contact surface material |
Ni/Au |
| Contact carrier material |
TPU GF |
| Material of grip body |
TPU, hardly inflammable, self-extinguishing |
| Material, knurls |
Zinc die-cast, (nickel-plated) |
| Sealing material |
NBR |
| Status display |
no |
| Conductor data |
| Cable type |
PUR halogen-free black |
| Cable abbreviation |
Li9Y11Y-HF |
| Conductor cross section |
0,34 mm² |
| AWG signal line |
22 |
| Conductor structure, signal line |
42x0,10 mm |
| Core diameter including insulation |
1,27 mm ±0,02 mm |
| Thickness, insulation |
ca. 0,21 mm (Core insulation) |
| |
ca. 0,8 mm (Outer cable sheath) |
| External cable diameter |
4,70 mm |
| Wire colors |
Brown, white, blue, black |
| External sheath, color |
Black-gray RAL 7021 |
| Conductor data (cont.) |
| Insulation resistance |
≥ 100 MΩ*km |
| Conductor resistance |
≤ 58 Ω/km |
| Nominal voltage, conductor |
300 V |
| Test voltage, conductor |
3000 V |
| Overall twist |
4 wires, twisted |
| Outer sheath, material |
PUR |
| Material conductor insulation |
PP |
| Conductor material |
Bare Cu litz wires |
| Cable weight |
30 kg/km |
| Smallest bending radius, movable installation |
47 mm |
| Number of bending cycles |
4'000'000 |
| Bending radius |
47 mm |
| Traversing path |
10 m |
| Traversing rate |
3 m/s |
| Acceleration |
10 m/s² |
| Ambient temperature (operation) |
-40 ... 80 °C (cable, fixed installation) |
| |
-5 ... 80 °C (cable, flexible installation) |
| Special properties |
Flexible cable conduit capable |
| |
Silicone-free |
| |
Free of substances which would hinder coating with paint or varnish |
| Flame resistance |
As per UL-Style 20549 |
| Halogen-free |
As per DIN VDE 0472 part 815 |
| Resistance to oil |
complying with DIN EN 60811-2-1 |
| Other resistance |
Highly resistant to acids,
alkaline solutions and solvents
hydrolysis and microbe resistant |
